16 Appendix

590

Appendix

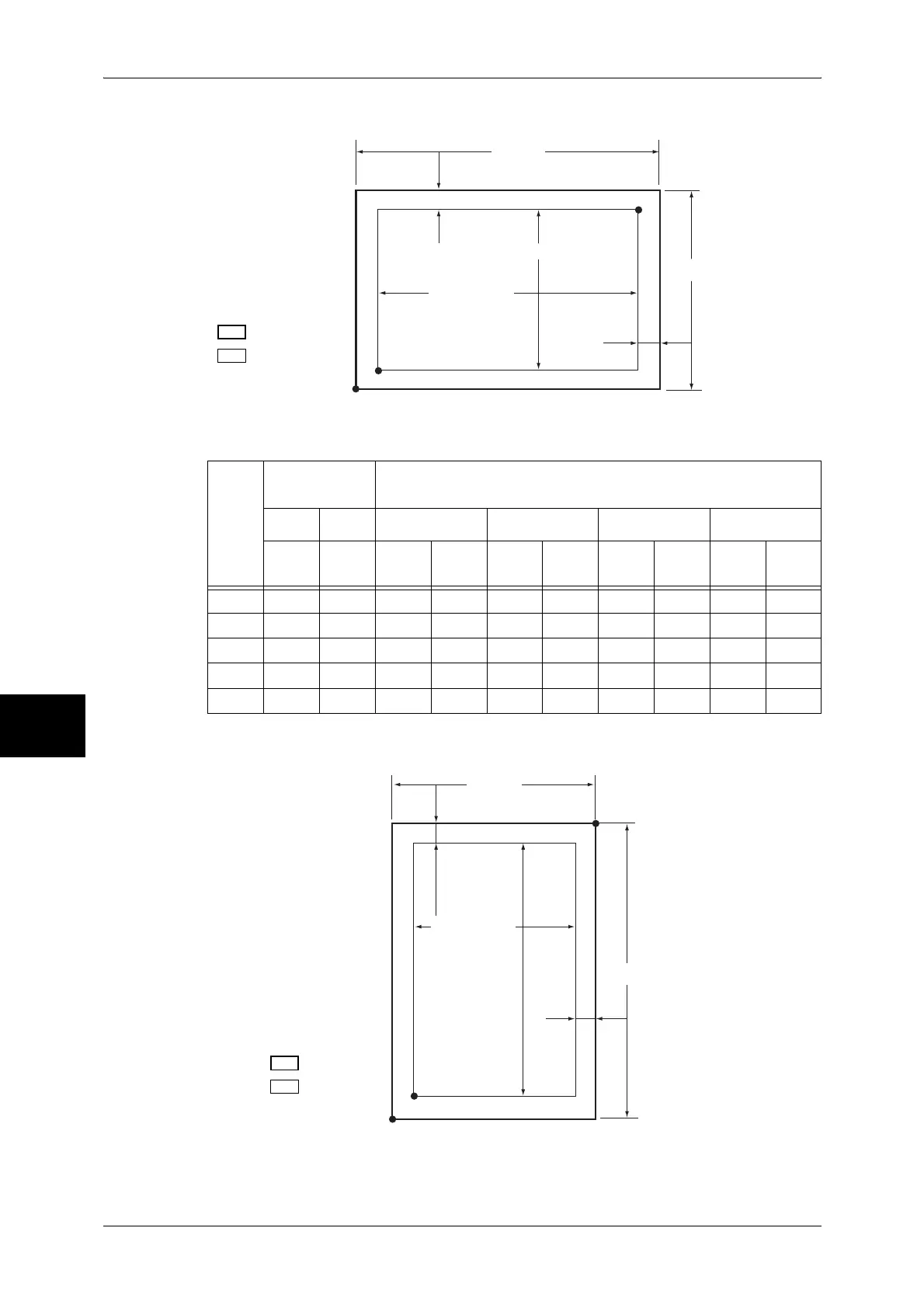

Note • The HP-GL emulation supports 5 paper sizes: A3,A5,A4, B4 and B5.

Paper

size

Paper Length

(1/7200 inch)

Coordinate Value (1/7200 inch)

X Axis Y Axis Margin Printable Area Top-right Edge Margin

Width Height

Bottom

-left X

Bottom

Left Y

Long

Side

Short

Side

Top-

right X

Top-

right Y

XR YU

A3 84168 119052 1260 1260 81648 116532 82908 117792 1260 1260

A4 59508 84168 1260 1260 56988 81648 58248 82908 1260 1260

A5 41940 59508 1260 1260 39420 56988 40680 58248 1260 1260

B4 72828 103176 1260 1260 70308 100656 71568 101916 1260 1260

B5 51588 72828 1260 1260 49068 70308 50328 71568 1260 1260

Width

Short-side

Long-side

Bottom-left X, Bottom-left Y

(0, 0)

Height

Actual Paper

Printable Area

Top-right X, Top-right Y

Width

Short-side

(0, 0)

Actual Paper

Printable Area

Top-right X, Top-right Y

Long-side

Height

Bottom-left X, Bottom-left Y
