Managing IP networks Managing hardware
256 U41855-J-Z125-3-76
10.2.1.3 Information on switches
The information on switches is displayed in the Switches tab.
Ê Select Hardware → IP networks, Switches tab.

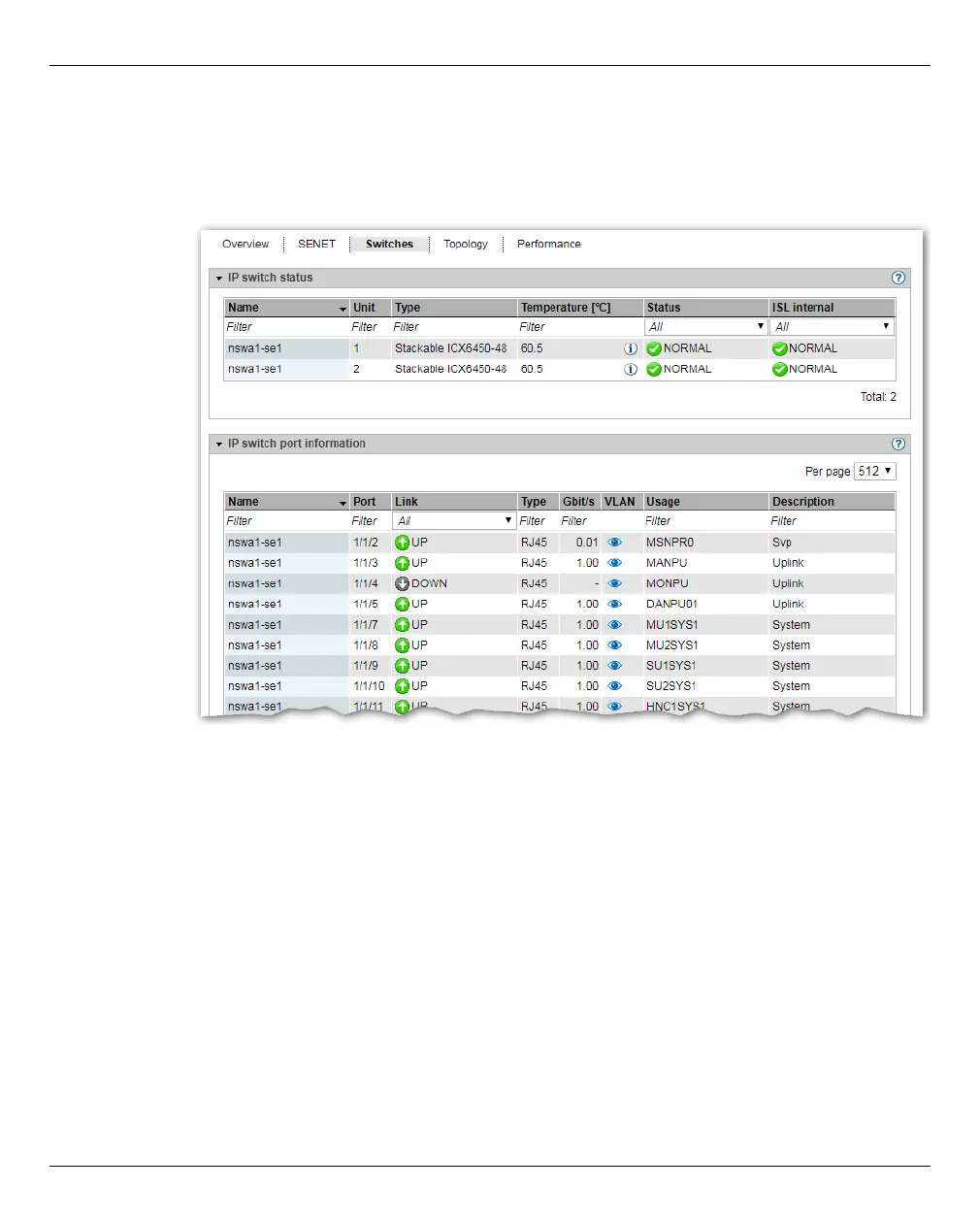

The Switches tab displays the status of the switches and information on the ports.
Ê If you drag the mouse over the i icon next to the temperature value in the IP switch status
group, a tool tip displays the temperature thresholds for warning and power-off.
Ê In the IP switch port information group, click the Display/Details icon (eye) in the entry for
a switch port; The VLAN connection for this switch port is displayed in a dialog box.
