2.3.5 Overview of the possible LAN connections of the VMs
The figures below provide an overview of the possible internal and external LAN
connections of the VMs running on the Server Unit (BS2000 on SU /390 or BS2000 and
XenVM on SU x86). Physical network integration is shown in figure 2.

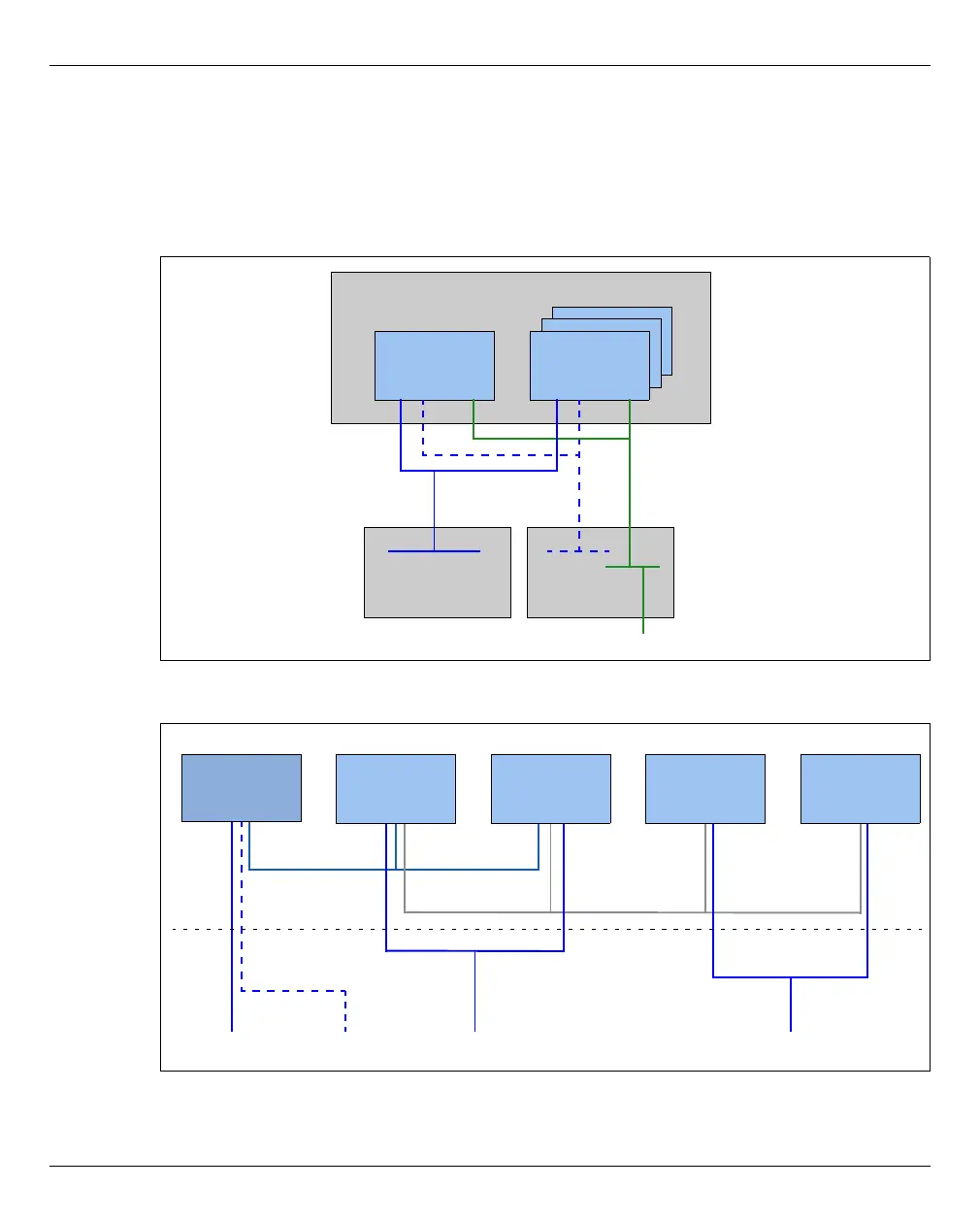

Figure 3: Overview of possible internal and external LAN connections (Server Unit /390)
Figure 4: Overview of possible internal and external LAN connections (Server Unit x86)
LOCLAN1
ZASLAN
Monitor system
(BS2000)
Guest system
(BS2000)
SU/390
LOCLAN2LOCLAN2
Net Unit | direct connection
MU HNC
Base system
(X2000)
LOCLAN
BRGLAN (on internal virtual switch)
LAN on external
ZASLAN
eth<n>eth<l>eth<k>
Monitor system
(BS2000)
Guest system
(BS2000)
Guest system
(Windows/Linux)
Guest system
(Windows/Linux)
Internal
LANs
External
LANs
eth<m>
virtual switch
