Fujitsu BS2000 User Manual

Architecture and strategies Networks
U41855-J-Z125-3-76 33
Dokuschablonen 19x24 Version 7.4de für FrameMaker V7.x vom 09.02.2010 © cognitas GmbH 2001-2010
19. March 2018 Stand 18:25.47 Pfad: P:\FTS-BS\Server\SE-Server\SE-Doku\1303912_BuV_062\BuV_e\buv.k02

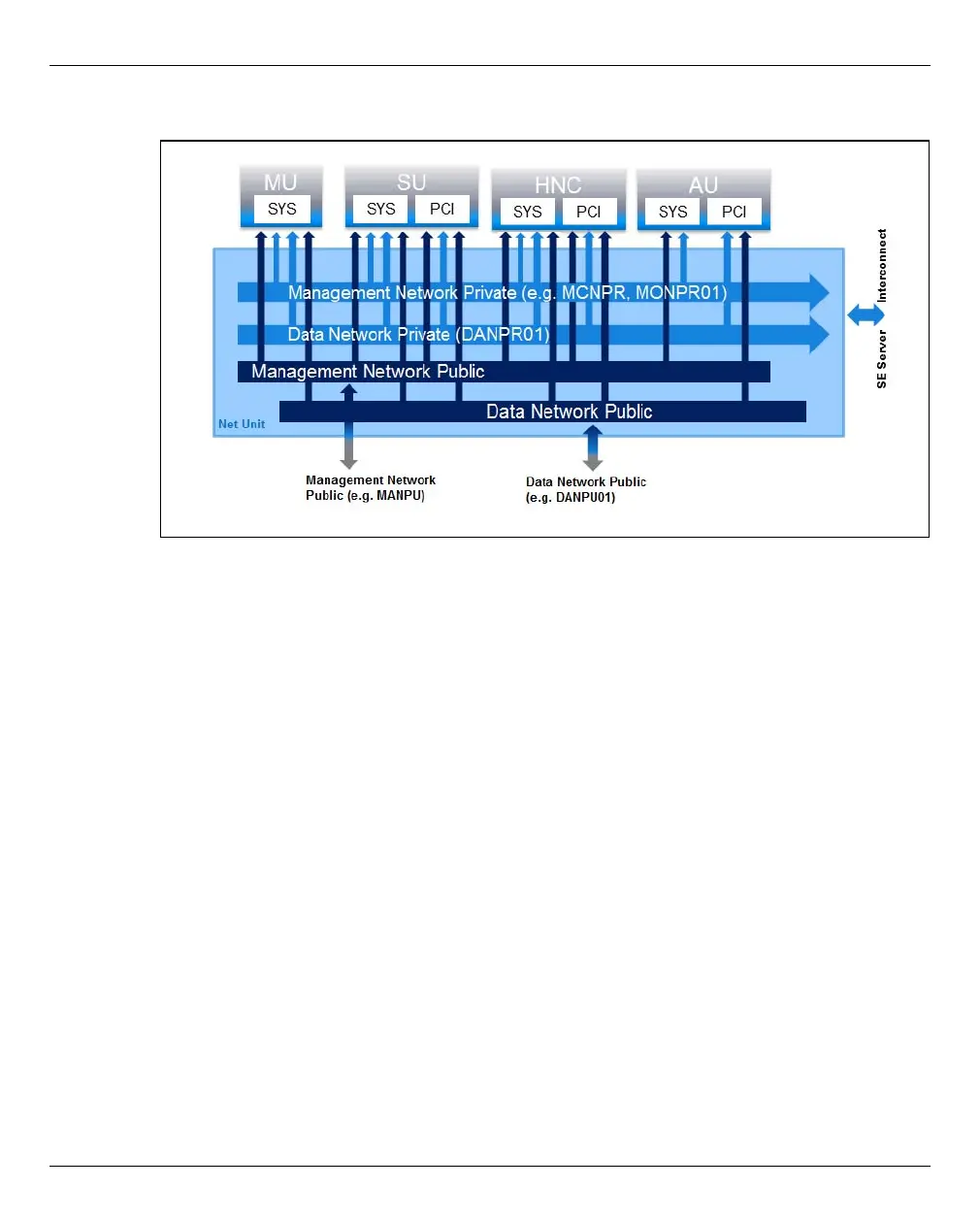

Figure 2: Block diagram of the Net Unit
2.3.1 Services
2.3.1.1 IPv6 autoconfiguration
IPv6 autoconfiguration based on the "radvd" (Router Advertisement Daemon) which runs
on the MU is provided for communication in the MCNPR network segment. Optionally IPv6
autoconfiguration is also provided for the private network segments MONPR and DANPR.
The prefix "fd5e:5e5e:<vlan-id>:0::/64" (for MCNPR where vlan-id 600 =
fd5e:5e5e:600:0::/64) is preconfigured. When conflicts occur on the customer side,
Customer Support can set a different prefix (change the first 32 bits of the prefix).
Connected units (with enabled IPv6 autoconfiguration) are then assigned an IPv6 address
based on the MAC address (e.g. fd5e:5e5e:600:0:219:99ff:fee2:79d/64).
IPv6 autoconfiguration is automatically enabled for MCNPR by means of the installation
and is required for the management functions for the units. IPv6 autoconfiguration can
optionally be activated for private network segments.
Each MU is assigned its own static IPv6 address during configuration in MCNPR (e.g.
fd5e:5e5e:600::101/64 = IPv6 prefix + suffix <mu-id>0<se-id>) with which the MU in the
network segment can be addressed.
