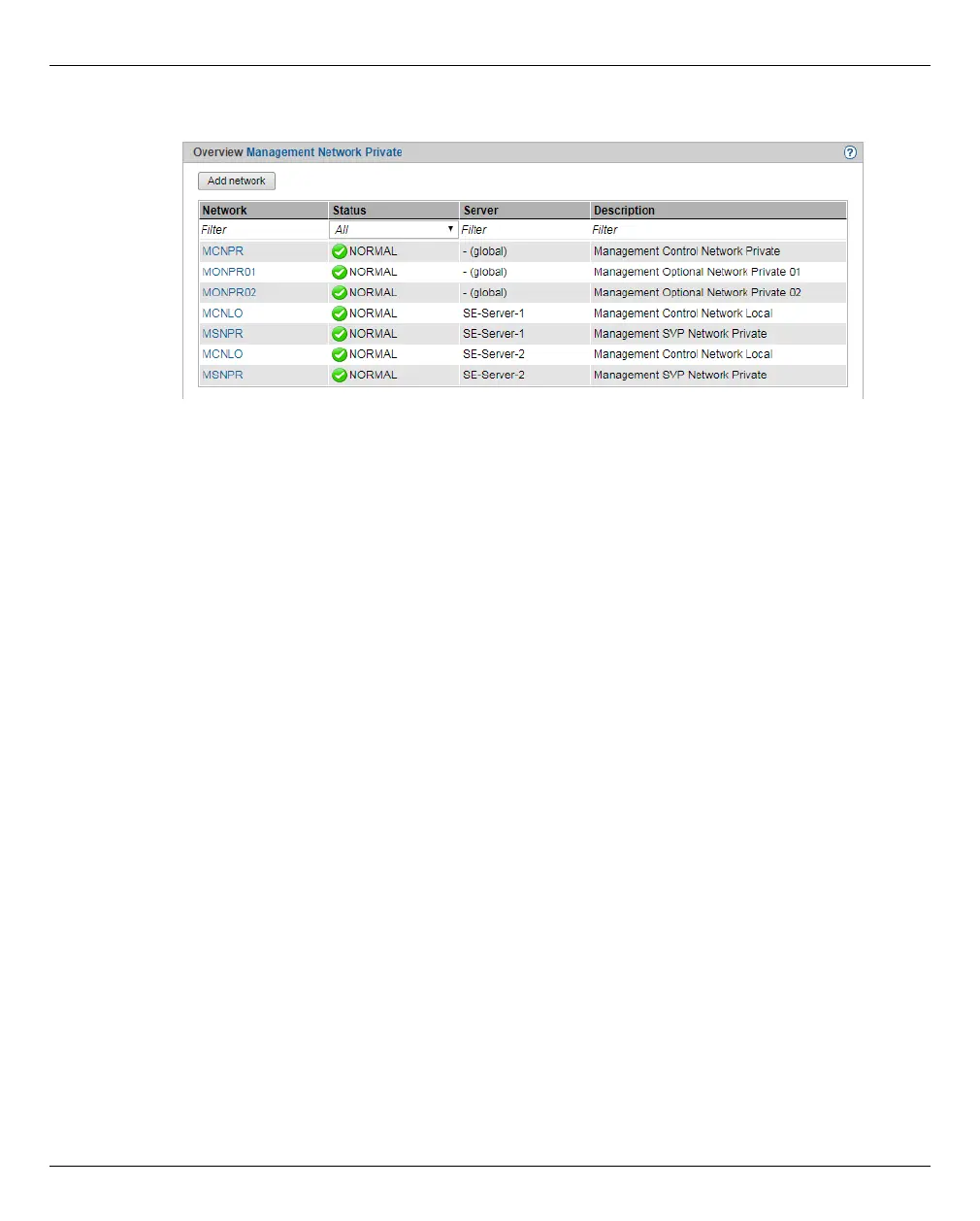

Ê Select Hardware → IP networks → Management Network Private, Overview tab.
The Server column is only displayed for Management Cluster configurations.
For each SE server-specific network, this column contains the name of the SE server to
which the network belongs. For each private cross-SE server management network, the
Server column displays value -(global).
Add network
An SE server configuration can contain up to 8 Management Optional Network Privates
(MONPR01 … MONPR08). As long as there are fewer than 8 MONPR networks, you can
add additional MONPRs:
Ê Click Add network.
The Add network dialog box opens and the first free network name is reserved.
Ê Follow the instructions of the wizard and enter the network data. Detailed information is
provided in the SE Manager help.
Overview over a single private management network
The overview is similar for all Management Networks Private. Consequently only the
MONPR01 is shown here. You can display the MAC addresses for all Management
Networks Private. Detailed information on tabs and the subsequent dialog boxes is
provided in the SE Manager help.
Ê Select Hardware → IP networks → Management Network Private → MONPR01, Overview
tab.
