Implementation principle for SU x86

On SU x86 the X2000 basic system controls the hardware of the Server Unit.

The VM2000 monitor manages the VMs with the guest system BS2000 (BS2000 VM) and

provides its functions via the VM2000 user interface.

The Xen hypervisor virtualizes the global resources CPU and main memory, controls the

execution of all VMs (scheduling), and ensures load balancing for CPU usage.

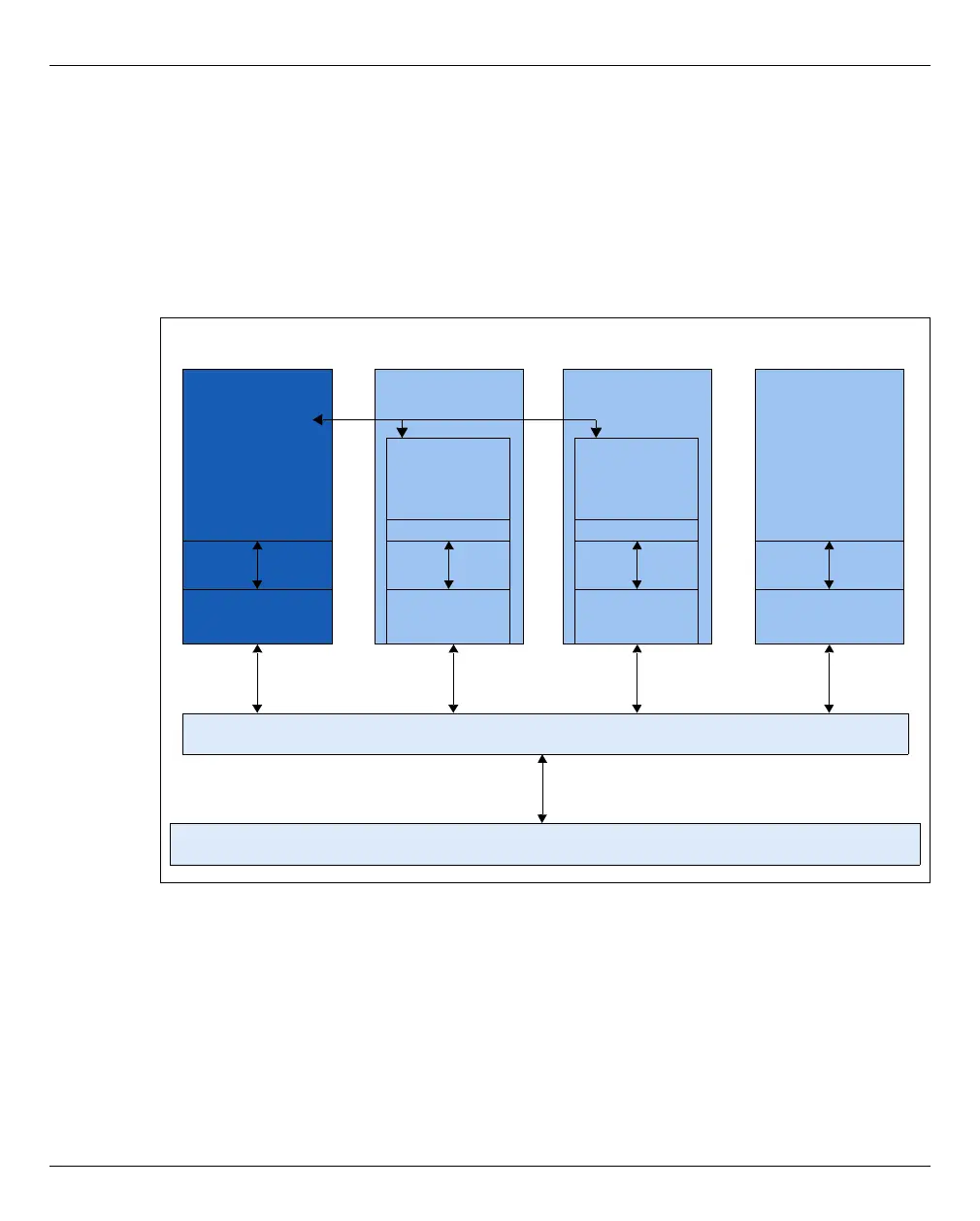

Figure 9: VM2000 on SU x86

Further information is provided in the "VM2000" manual [12].

. . .

Xen hypervisor

Virtual HSI for

VM n

Guest system n

BS2000 VM

x86-64 HSI

Domain/VM n

Virtual HSI for

VM monitor VM

Guest system m

(Monitor system)

BS2000 VM

Domain/VM m

Virtual HSI for

domain 0

Domain 0

Virtual HSI for

domain/VM x

Linux

Windows

Domain/VM x, ...

VM2000 agent

Base system

X2000

XenVM

BS2000 BS2000

VM firmware
