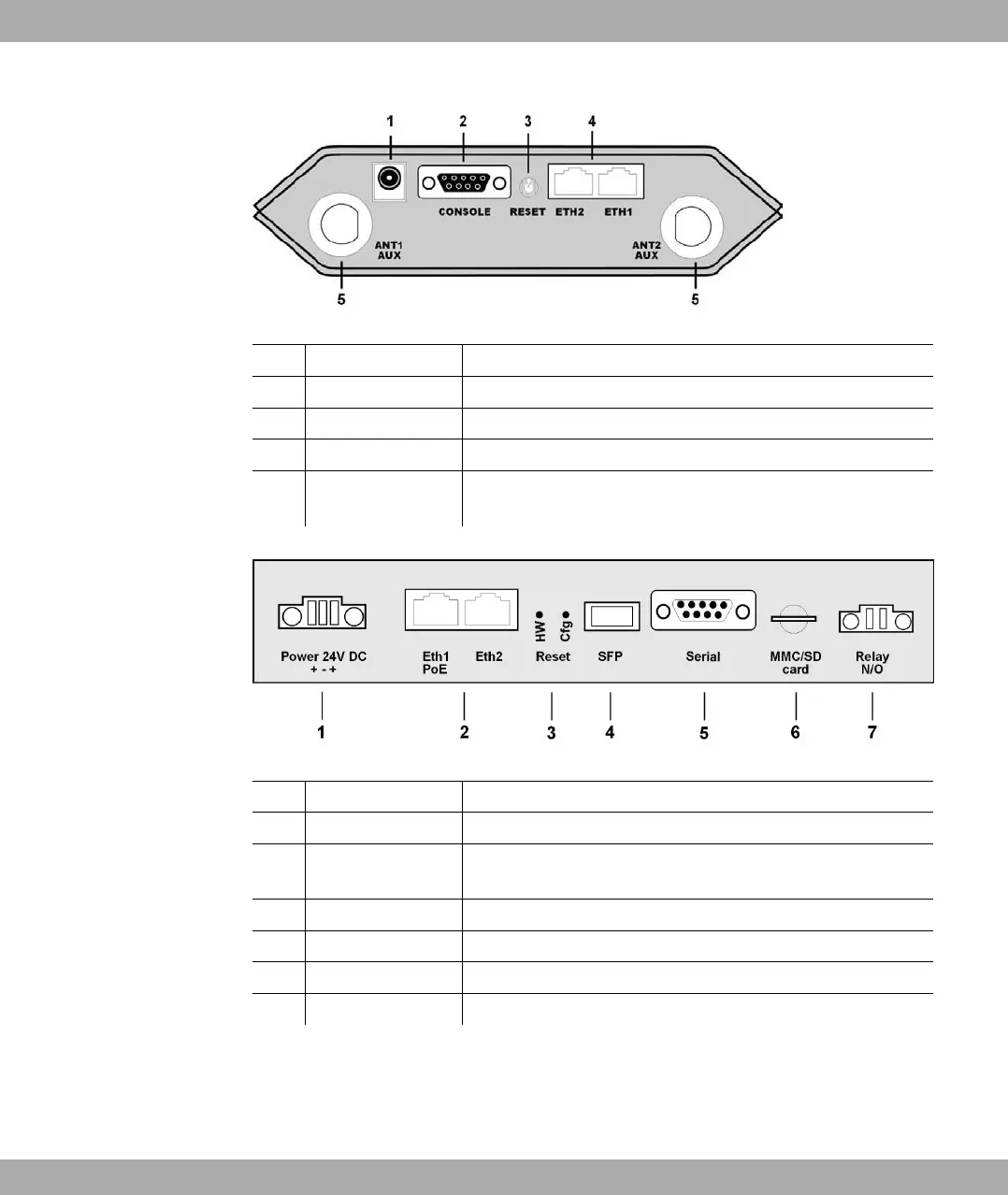

Fig. 6: Underside funkwerk W1002 and funkwerk W2002
1 POWER Socket for plug-in power pack
2 CONSOLE Serial Interface
3 RESET Reset switch
4 ETH1 / ETH2 10/100 Base-T Ethernet interface
5 ANT1 AUX /ANT2
AUX
Connections for screwing on the external antennas (W2002
only)
Fig. 7: Bottom of funkwerk WI1040, funkwerkWI2040 and funkwerk WI3040
1 Power Socket for power supply
2 Eth1 (PoE) / Eth2 10/100 Base-T Ethernet interface
3 Reset (HW and
Cfg)
Reset button and delete configuration
4 SFP SFP slot for 100 mbps fibre module (optional)
5 Serial Serial interface RS232
6 MMC/SD card Multimedia card (optional)
7 Relay N/O Alarm relay
Funkwerk Enterprise Communications GmbH
2 Quick Install Guide
funkwerk W1002/W2002/WIx040/WIx065 11
