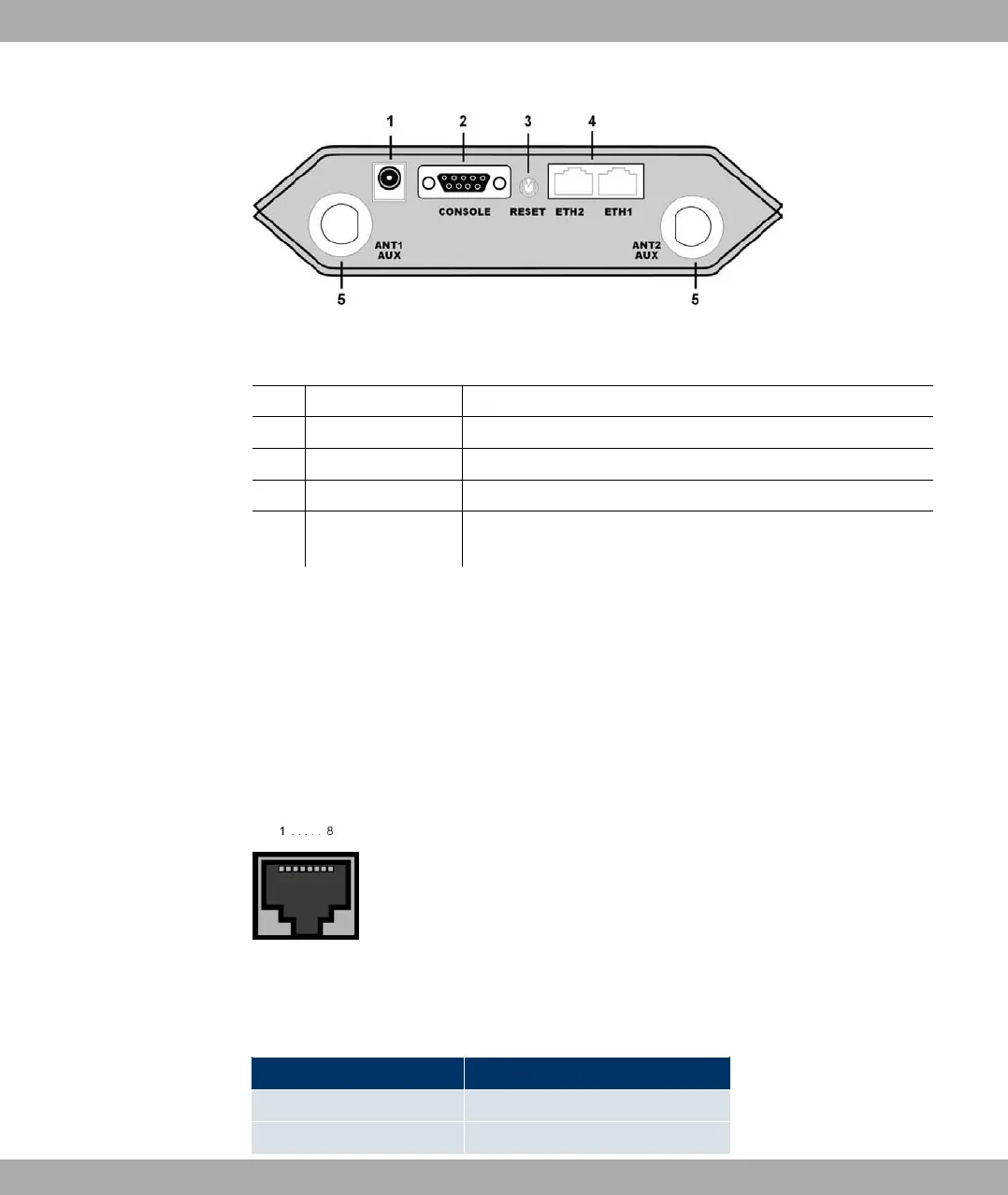

Fig. 18: Underside of funkwerk W1002 and funkwerk W2002.
funkwerk Wx002 underside
1 POWER Socket for plug-in power pack
2 CONSOLE Serial interface
3 RESET Reset button
4 ETH1 / ETH2 10/100 Base-T Ethernet interface
5 ANT1 AUX /ANT2
AUX
Connections for screwing on the external antennas (funkwerk
W2002 only)
3.1.5 Pin Assignments
3.1.5.1 Ethernet interface
Your device has two Ethernet interfaces. These are used to connect individual PCs or other
switches.
The connection is made via an RJ45 socket.
Fig. 19: Ethernet 10/100 Base-T interface (RJ45 socket)
The pin assignment for the Ethernet 10/100 Base-T interface (RJ45 socket) is as follows:
RJ45 socket for LAN connection
Pin Function
1 TD +
2 TD -
Funkwerk Enterprise Communications GmbH
3 Technical Data
funkwerk W1002/W2002/WIx040/WIx065 31
