Funkwerk W1002 User Manual

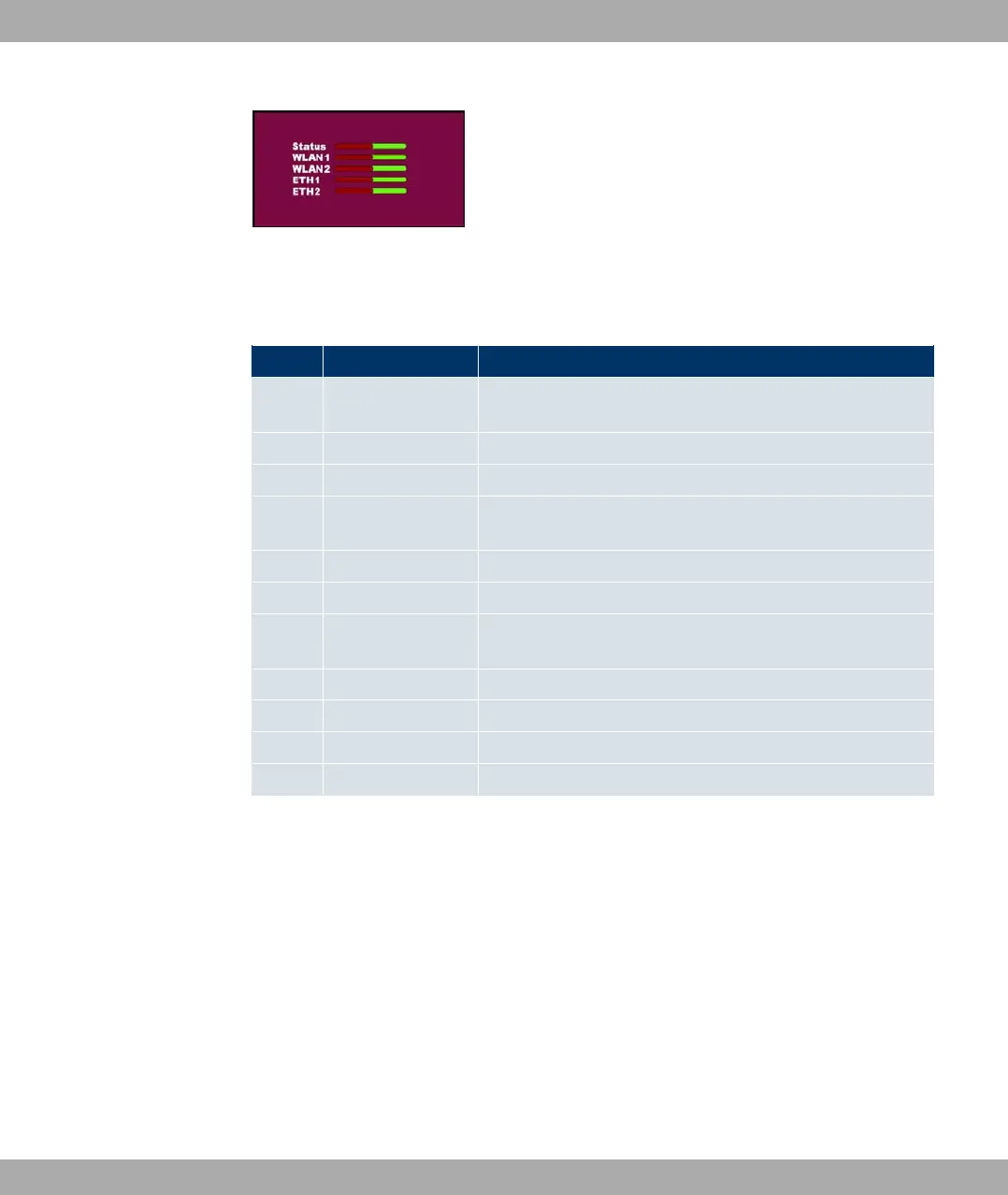

Fig. 17: LEDs of funkwerk W1002 and funkwerk W2002
In operating mode, the LEDs display the following status information for your device:
LED status display
LED Status Information
Status off The power supply is not connected. Error also if other LEDs
are on.
on (static) Error
on (flashing) Ready for operation
WLAN
1/2
on (flashing slowly) Free
on (static) At least 1 client is logged on
on (flickering) At least 1 client is logged on and there is data traffic
on (flashing
quickly)
BLD (broken link detection) active
on (flashing fast) 5 GHz scan active
ETH 1/2 off No cable or no Ethernet link
on Cable plugged in and link
on (flickering) Cable plugged in, link and data traffic
During the boot operation, all LEDs are on (1x red/green status and 4x green). This means
the monitor has been started and firmware is being loaded.
3.1.4 Connections
All connections are located on the underside of the device. funkwerk W1002 and funk-
werk W2002 have two Ethernet connections and one serial interface.
The connections are arranged as follows:
3 Technical Data Funkwerk Enterprise Communications GmbH
30 funkwerk W1002/W2002/WIx040/WIx065
