1 Power Socket for power supply

2 Eth1 (PoE) / Eth2 10/100 Base-T Ethernet interface

3 Reset (HW and

Cfg)

Reset button and delete configuration

4 SFP SFP slot for 100 mbps fibre module (optional)

5 Serial Serial interface RS232

6 MMC/SD card Multimedia card (optional)

7 Relay N/O Alarm relay

3.2.5 Pin Assignments

3.2.5.1 Ethernet interface

Your device has two Ethernet interfaces. These are used to connect individual PCs or other

switches.

The connection is made via an RJ45 socket.

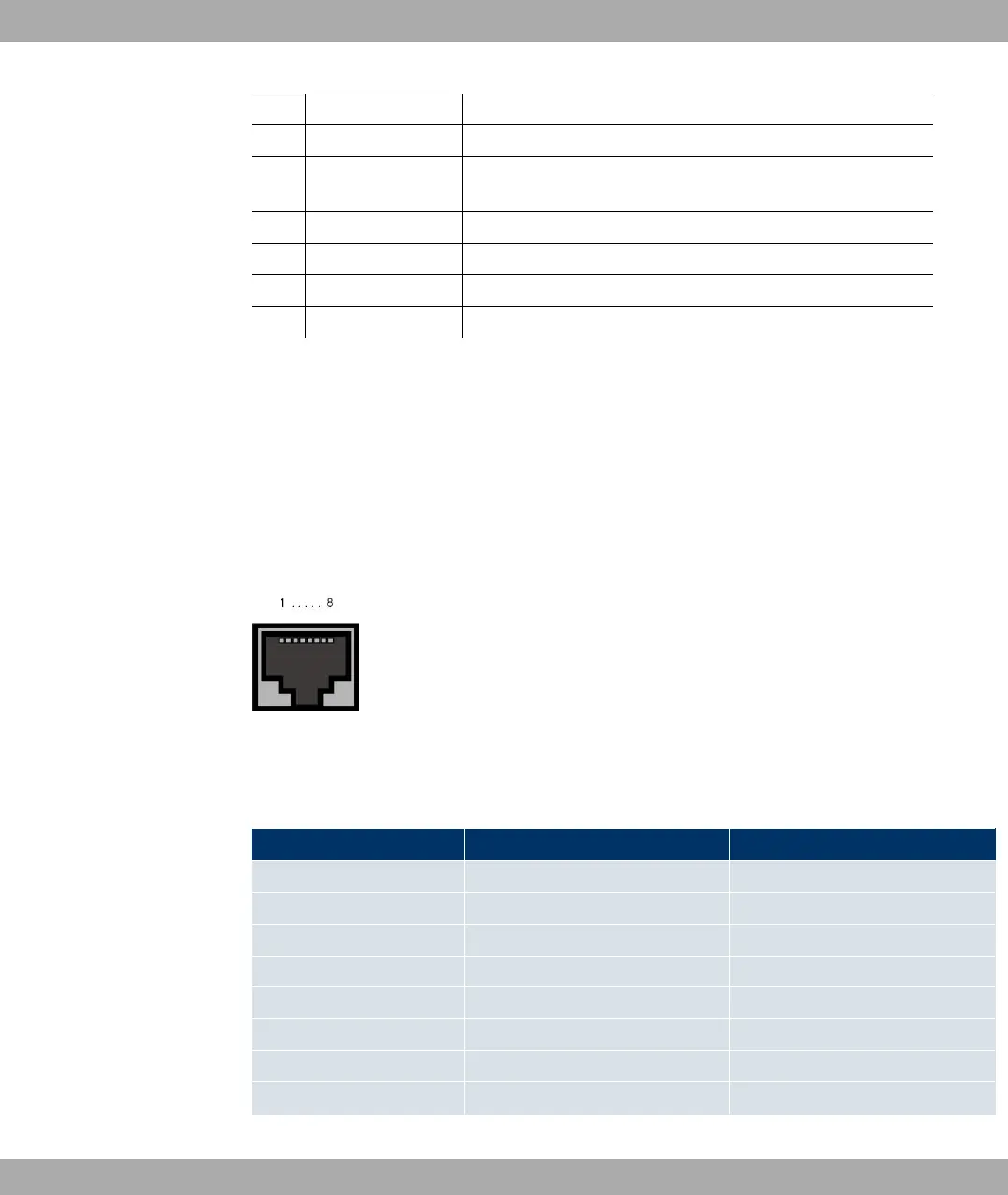

Fig. 24: Ethernet 10/100 Base-T interface (RJ45 socket)

The pin assignment for the Ethernet 10/100 Base-T interface (RJ45 socket) is as follows:

RJ45 socket for LAN connection

Pin Function Eth1 - PoE Function Eth 2

1 TD +/Power TD +

2 TD -/Power TD -

3 RD +/Power RD +

4 Power Not used

5 Power Not used

6 RD -/Power RD -

7 Power Not used

8 Power Not used

3 Technical Data Funkwerk Enterprise Communications GmbH

40 funkwerk W1002/W2002/WIx040/WIx065
