Funkwerk W1002 User Manual

Pin Function
3 RD +
4 Not used
5 Not used
6 RD -
7 Not used
8 Not used
The Ethernet 10/100 BASE-T interface does not have an Auto-MDI-X function.
3.1.5.2 Serial interface
Your device has a serial interface for connection to a console. This supports Baud rates
from 1200 to 115200 Bps.
The interface is designed as a 9-pin serial Sub-D port.

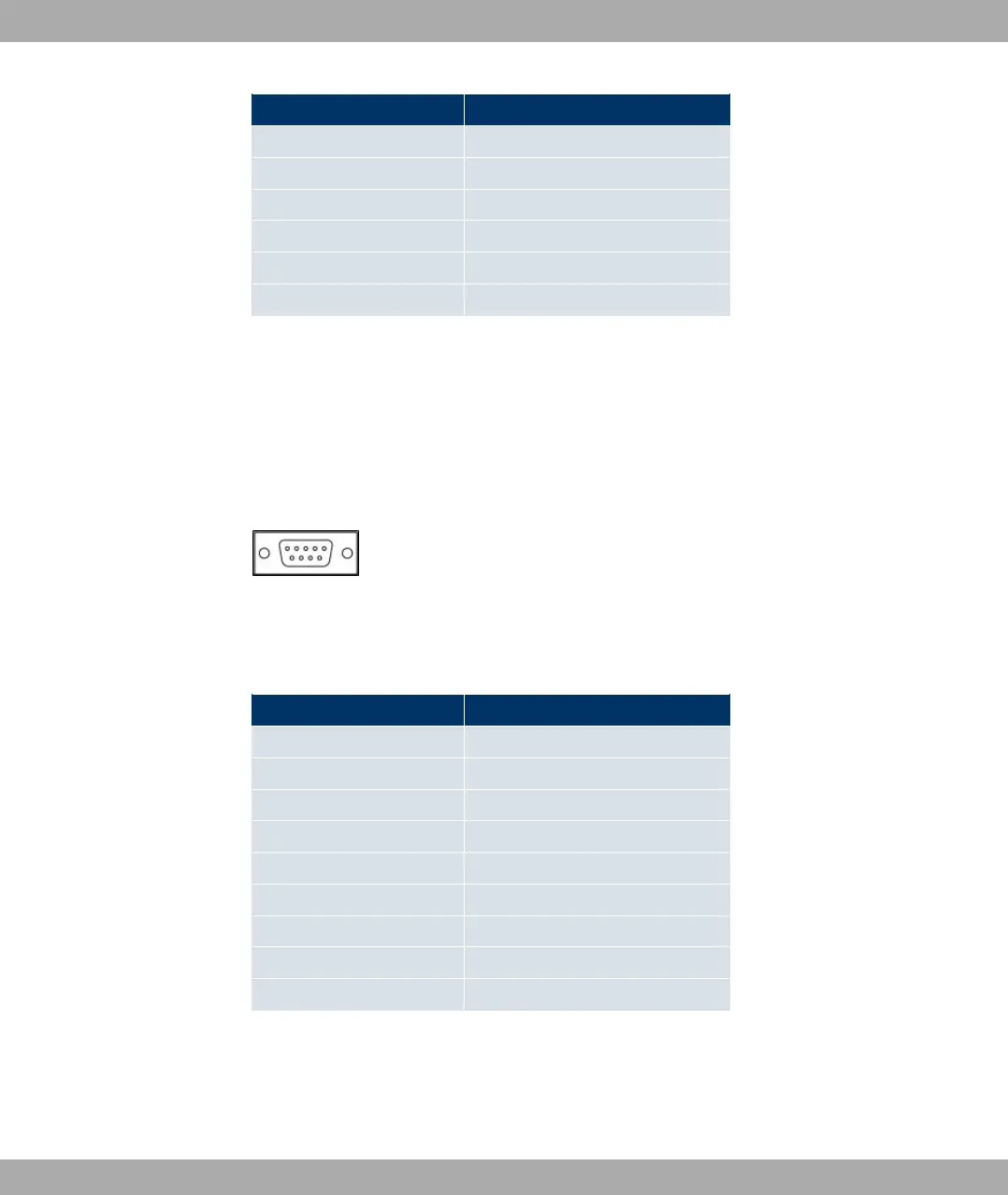

Fig. 20: 9-pin serial Sub-D port
The pin assignment is as follows:
Pin assignment of the Sub-D port
Pin Function
1 CD
2 RxD
3 TxD
4 DTR
5 GND
6 DSR
7 RTS
8 CTS
9 RI
3.1.6 Frequencies and channels
Different certification regulations apply around the world. The main regulations are ETSI
and FCC; ETSI is applied mainly in Europe, FCC in North America.
