LED Status Information
on (flickering) Cable plugged in and data traffic
During the boot operation, only the red LED is on. The other LEDs then come on during
booting (if the units are initialised).
3.3.4 Connections
All connections are located on the underside of the device. funkwerk WI1065, WI2065 und
WI3065 have two Ethernet connections and one serial interface.
The connections are arranged as follows:

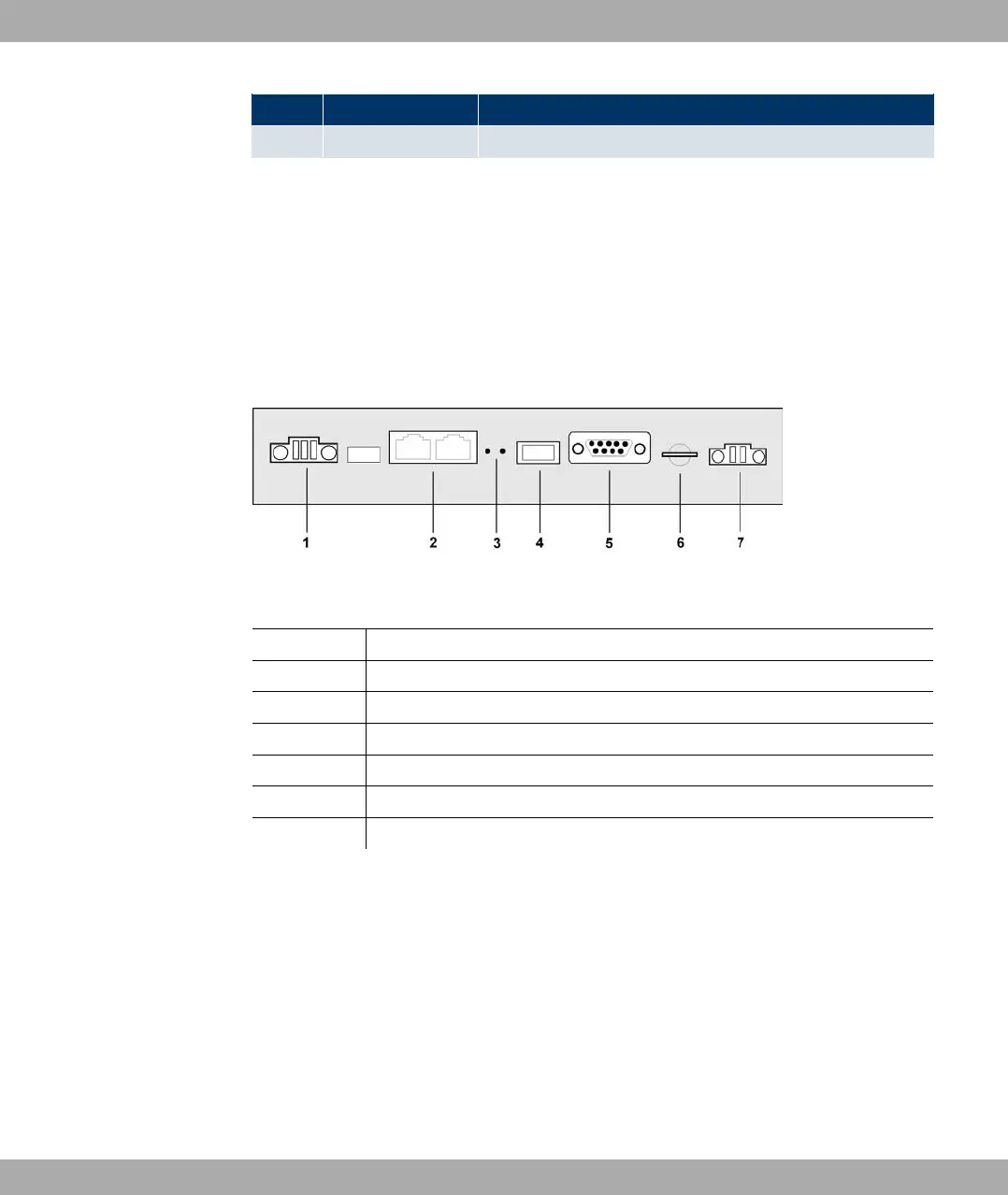

Fig. 27: Underside of funkwerk WI1065, WI2065 and WI3065
funkwerk WIx065 underside
1 Socket for power supply
2 10/100 Base-T Ethernet interface
3 Reset button and delete configuration
4 SFP slot for 100 mbps fibre module (optional)
5 Serial interface RS232
6 Multimedia card (optional)
7 Alarm relay
3.3.5 Pin Assignments
3.3.5.1 Ethernet interface
Your device has two Ethernet interfaces. These are used to connect individual PCs or other
switches.
The connection is made via an RJ45 socket.
3 Technical Data Funkwerk Enterprise Communications GmbH
48 funkwerk W1002/W2002/WIx040/WIx065
