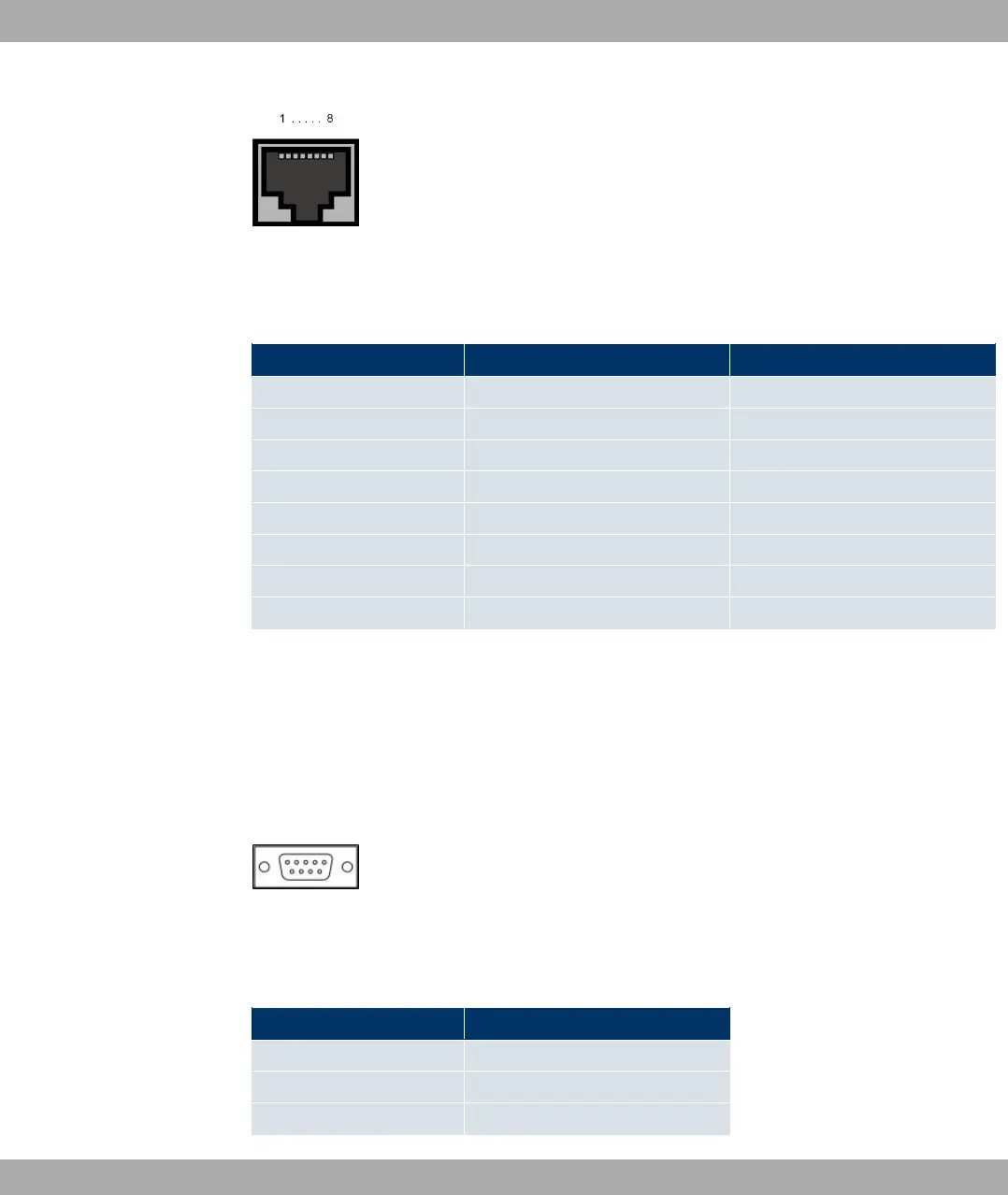

Fig. 28: Ethernet 10/100 Base-T interface (RJ45 socket)
The pin assignment for the Ethernet 10/100 Base-T interface (RJ45 socket) is as follows:
RJ45 socket for LAN connection
Pin Function Eth1 - PoE Function Eth 2
1 TD +/Power TD +
2 TD -/Power TD -
3 RD +/Power RD +
4 Power Not used
5 Power Not used
6 RD -/Power RD -
7 Power Not used
8 Power Not used
The Ethernet 10/100 BASE-T interface does not have an Auto-MDI-X function.
3.3.5.2 Serial interface
Your device has a serial interface for connection to a console. This supports Baud rates
from 1200 to 115200 Bps.
The interface is designed as a 9-pin serial Sub-D port.
Fig. 29: 9-pin SUB-D socket
The pin assignment is as follows:
Pin assignment of the Sub-D port
Pin Function
1 CD
2 RxD
3 TxD
Funkwerk Enterprise Communications GmbH
3 Technical Data
funkwerk W1002/W2002/WIx040/WIx065 49
