The Ethernet 10/100 BASE-T interface does not have an Auto-MDI-X function.
3.2.5.2 Serial interface
Your device has a serial interface for connection to a console. This supports Baud rates
from 1200 to 115200 Bps.
The interface is designed as a 9-pin serial Sub-D port.

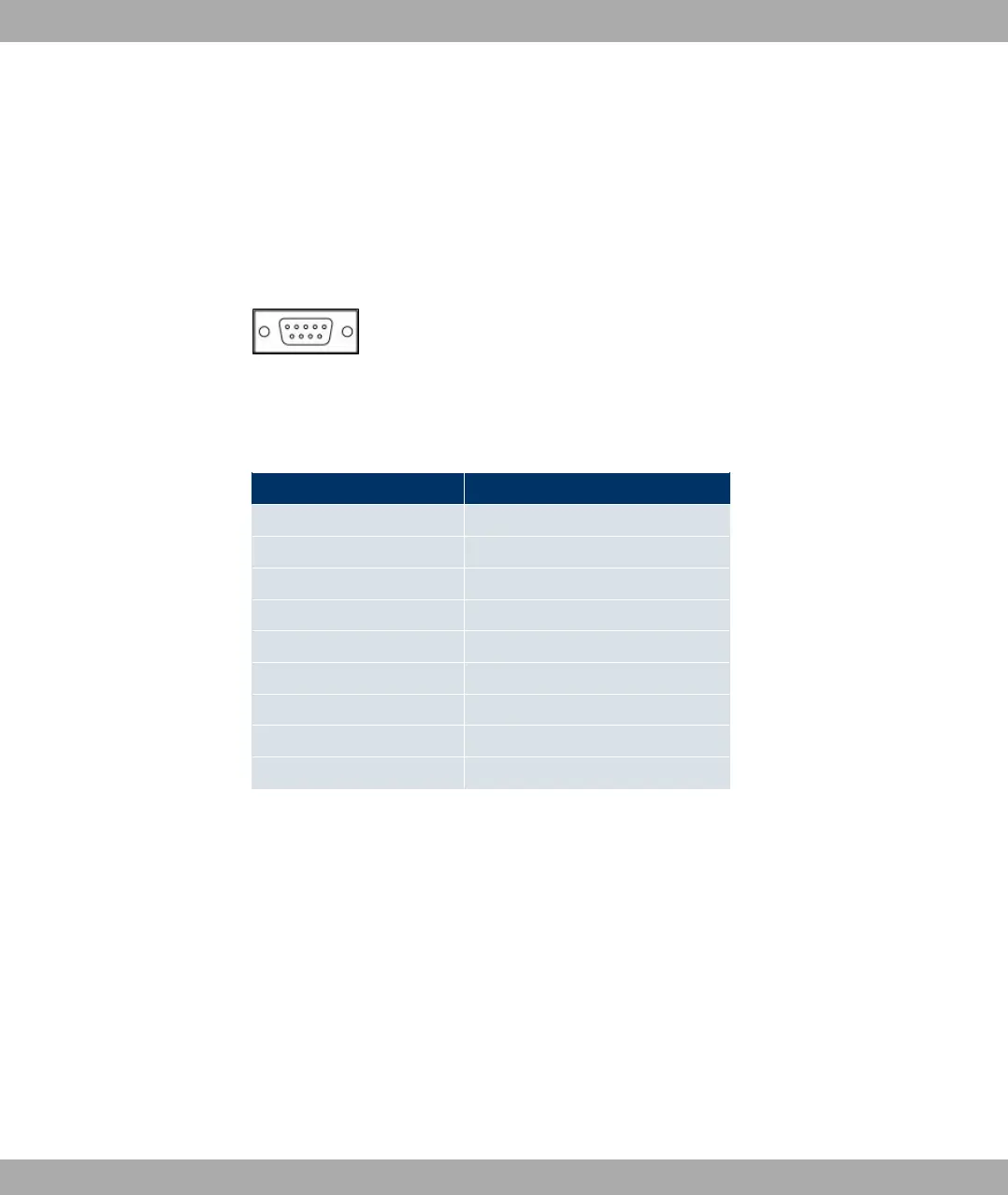

Fig. 25: 9-pin SUB-D socket
The pin assignment is as follows:
Pin assignment of the Sub-D port
Pin Function
1 CD
2 RxD
3 TxD
4 DTR
5 GND
6 DSR
7 RTS
8 CTS
9 RI
3.2.6 Frequencies and channels
Different certification regulations apply around the world. The main regulations are ETSI
and FCC; ETSI is applied mainly in Europe, FCC in North America.
For operation in Europe, please read the notes in the R&TTE Compliance Information.
3.3 funkwerk WI1065, WI2065 and WI3065
3.3.1 Scope of supply
Your device is supplied with the following parts:
Funkwerk Enterprise Communications GmbH
3 Technical Data
funkwerk W1002/W2002/WIx040/WIx065 41
