Funkwerk W1002 User Manual

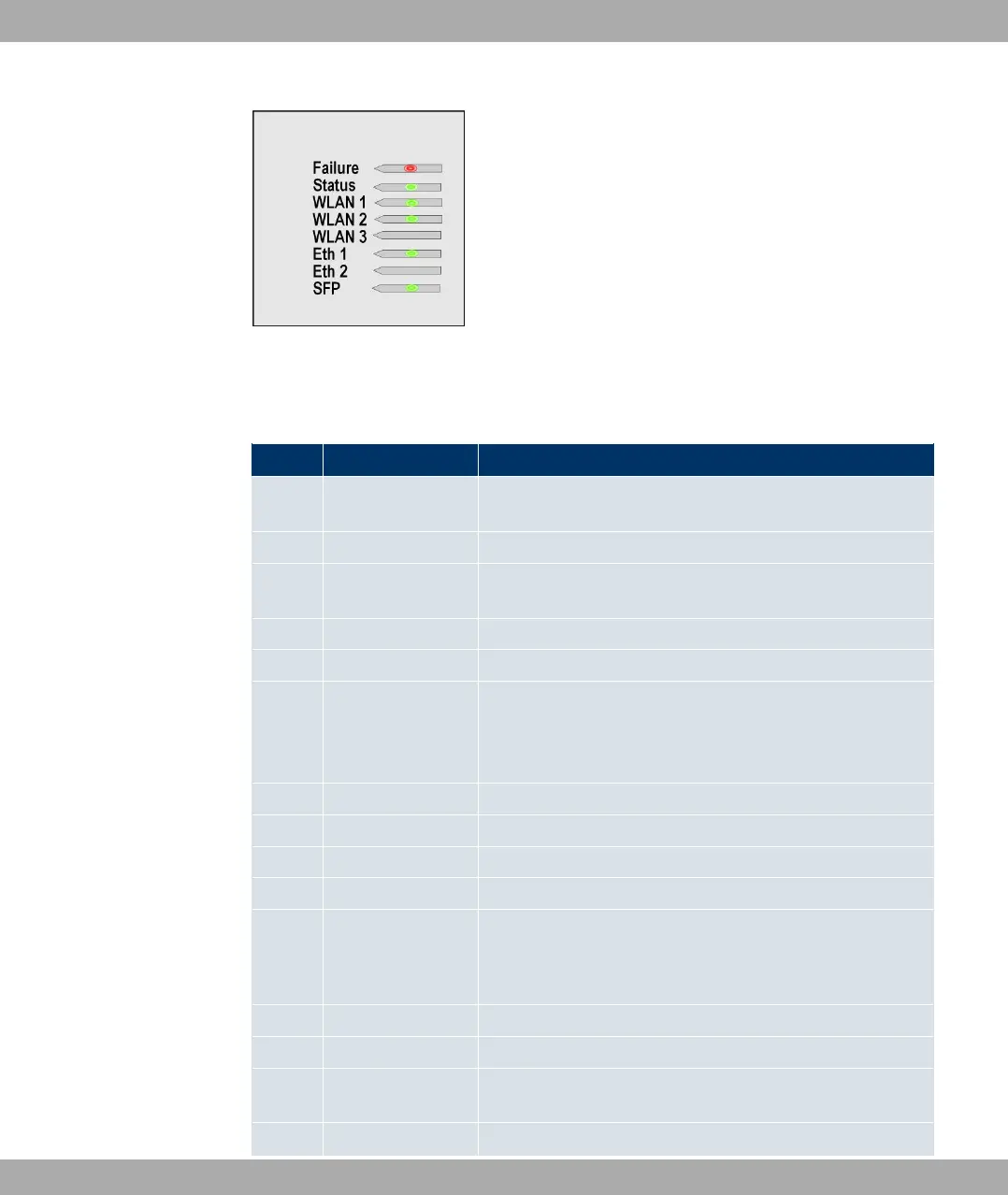

Fig. 26: LEDs of funkwerk WI1065, WI2065 and WI3065
In operating mode, the LEDs display the following status information for your device:
LED status display
LED Status Information
Failure
(red)
on After power-up and during booting or if an error occurs.
off If the device is at the login prompt.
Status
(green)
off The power supply is not connected. If other LEDs are on,
also Error.
on (static) Error
on (flashing) Ready
WLAN
1/2/3
(3x
green)
on (flashing slowly) Free
on (static) At least one client is registered
on (flickering) At least one client is registered and there is data traffic
on (flashing fast) BLD (Broken Link Detection) active
on (flashing fast) 5 GHz scan active
ETH 1/2
(2x
green)
off No cable or no Ethernet link
on Cable plugged in and link
on (flickering) Cable plugged in and link with data traffic
SFP
(green)
off No data traffic
on Data traffic via the SFP interface.
