5.13 Outputs Tab
Changing parameters on this tab may affect the operation of the system.
Any changes should be performed by an authorized operator.
The Outputs tab (Figure 5-28) allows the user to configure the behavior of the six onboard
relays, 8 solenoids and 6 analog outputs. The Outputs tab is divided into 2 main sections:
Digital Outputs and Analog Outputs as shown in Figure 5-28.

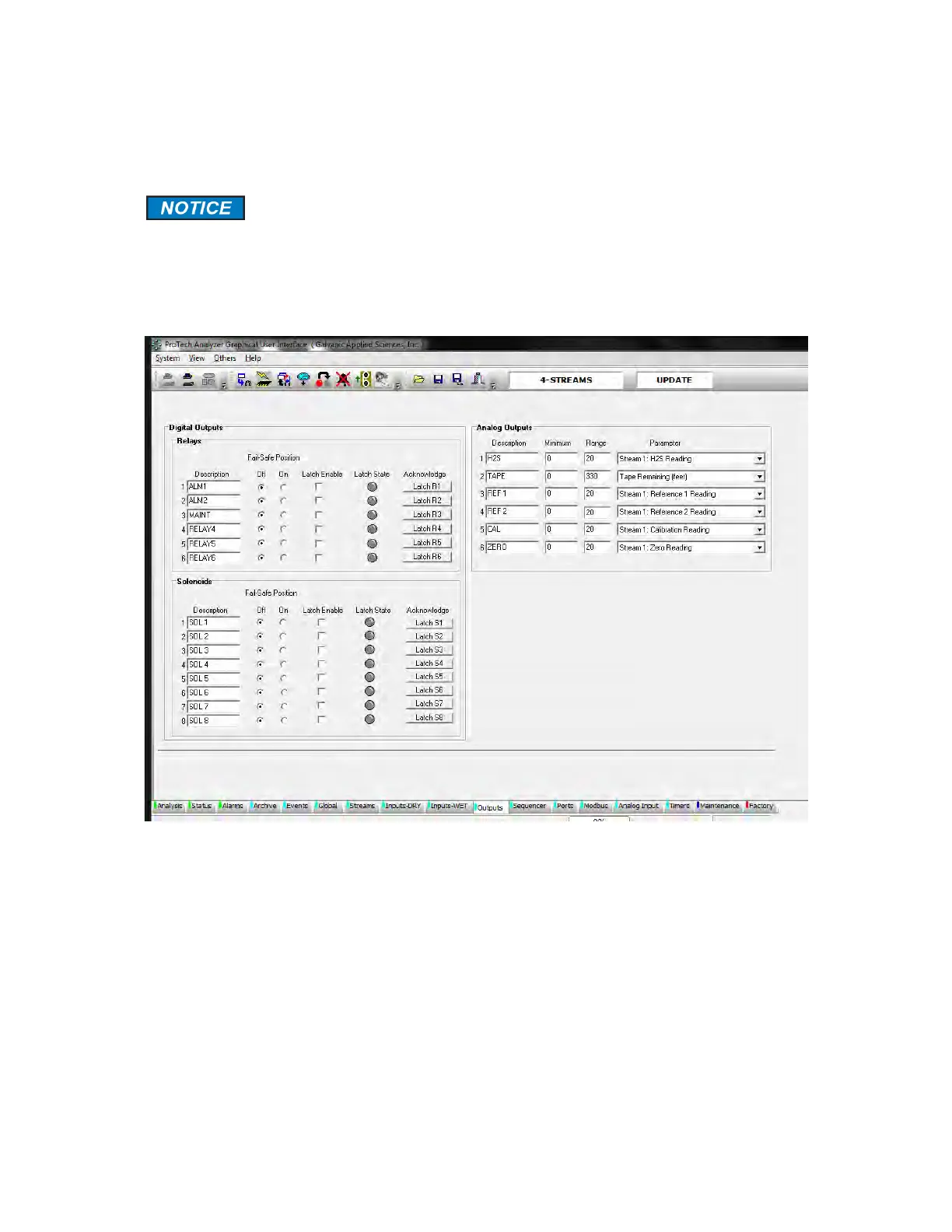

Figure 5-30: Outputs Tab
