6.4.2 Dry and Wet Inputs
There are four dry contact discrete inputs and four wet contact discrete inputs on the
analyzer. The format of the Inputs-WET tab (Figure 6-6) and Inputs- DRY tab are identical
and allow the operator allows the user to configure these discrete inputs in any manner.
These inputs can be configured to trigger a certain type of run, or to monitor external
pressure or temperature switches, for example. A detailed discussion of the Input tabs is
presented in Section 5.11 and 5.12.

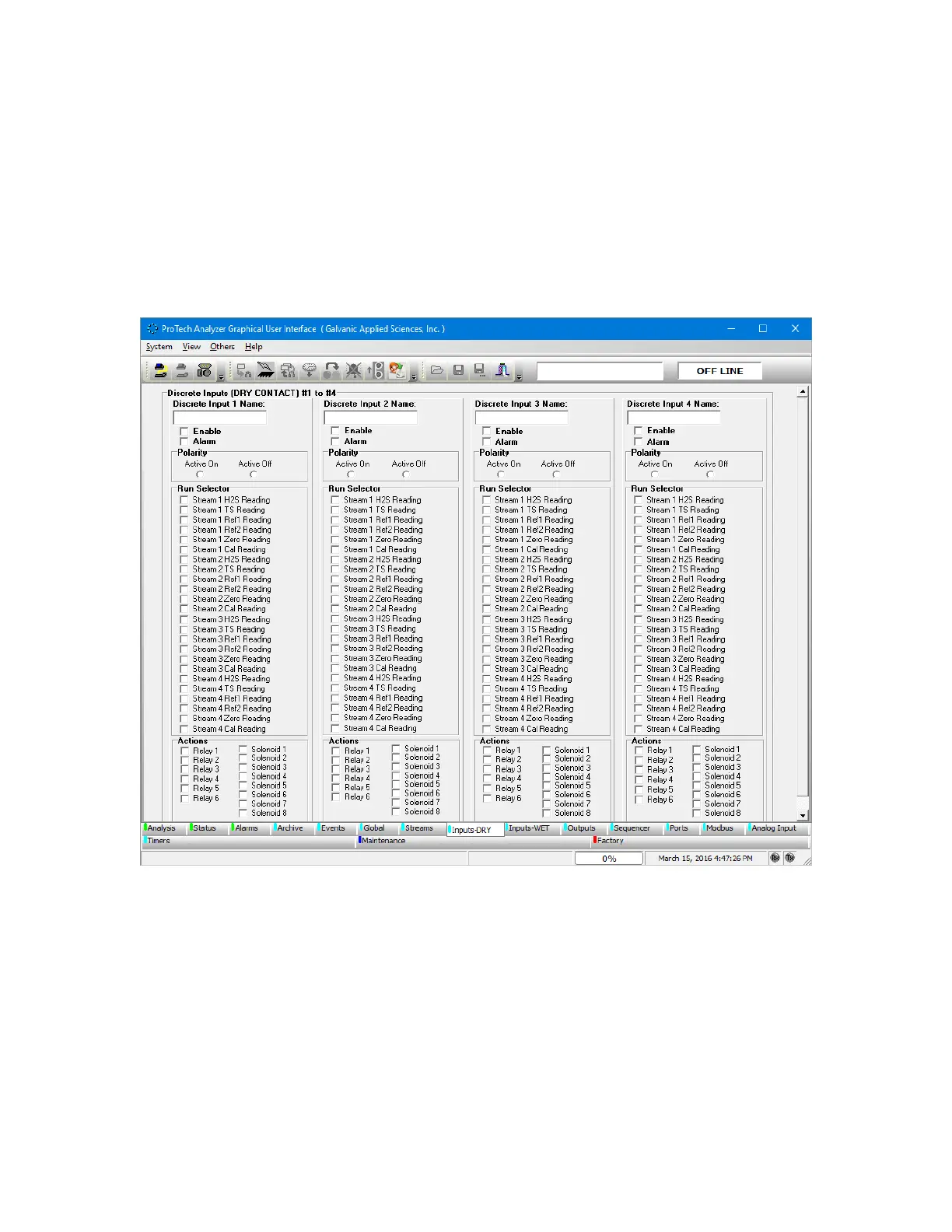

Figure 6-6: Input-DRY Tab
