3.5.3 Installing the Humidifier
Unpack the humidifier (Figure 3-18 or 3-19) and remove the plug from the top of the
humidifier. Fill the humidifier to the line on the front of the humidifier with the 5% Acetic Acid
solution included in the system crate. Once filled, replace the plug and place the humidifier
into the system chassis, behind the lower door. Connect the two Tygon sample lines to the
two barbed connectors on the top of the humidifier.

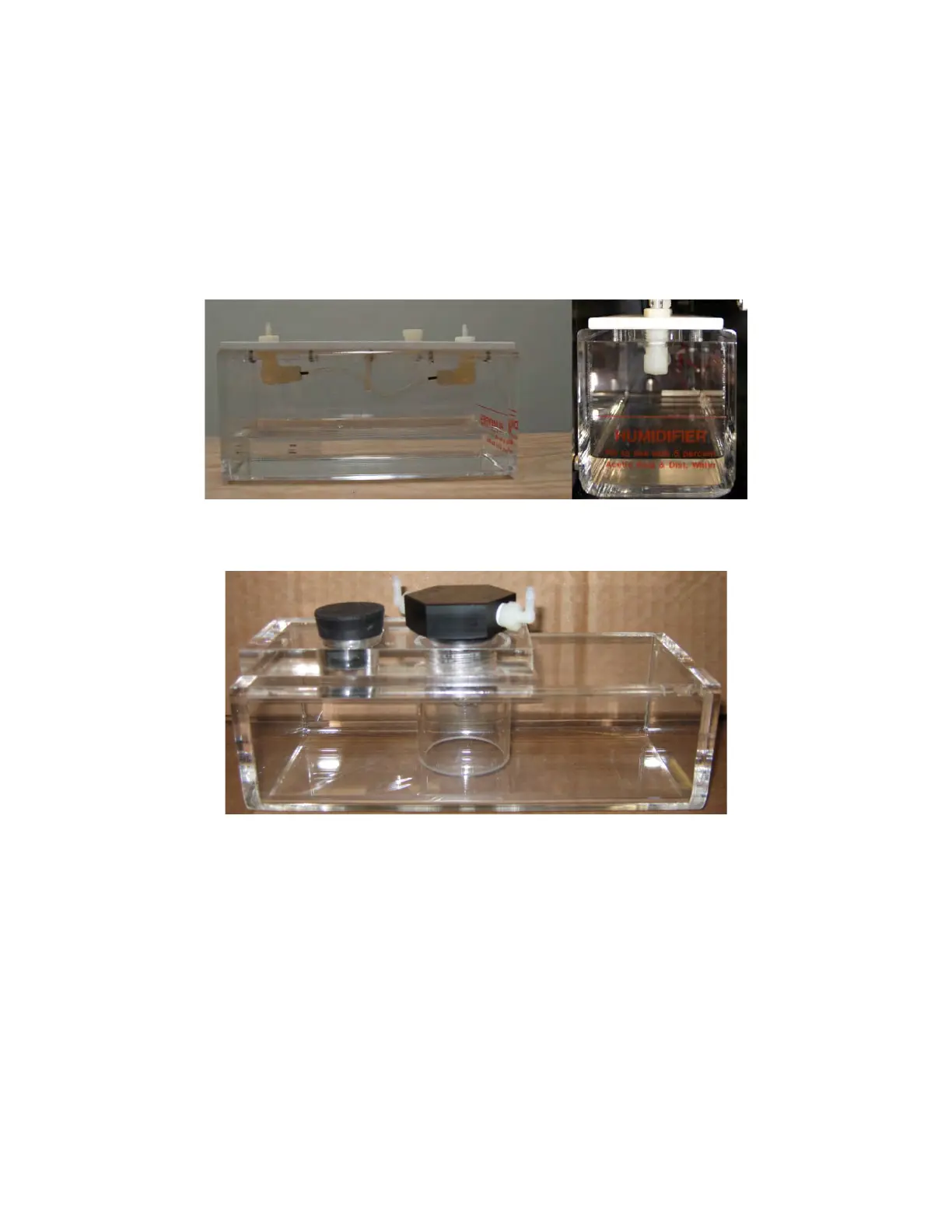

Figure 3-17: Nafion Permeable Membrane Humidifier
Figure 3-18: Total Sulfur Option Humidifier
