Galvanic Applied Sciences ProTech903 - Figure 6-7: the Outputs Tab; Outputs Tab

Revision 14
139 August 02, 2019
6.4.3 Outputs Tab
The Outputs tab (Figure 6-7) allows the user to configure the behaviour of the 6 onboard
relays and 8 solenoids. It is also where the analyzers Analog Outputs are named and
configured. The Output tab is divided into 2 main sections: Digital Output and Analog
Outputs. A detailed discussion of the Output tabs is presented in Section 5.13.

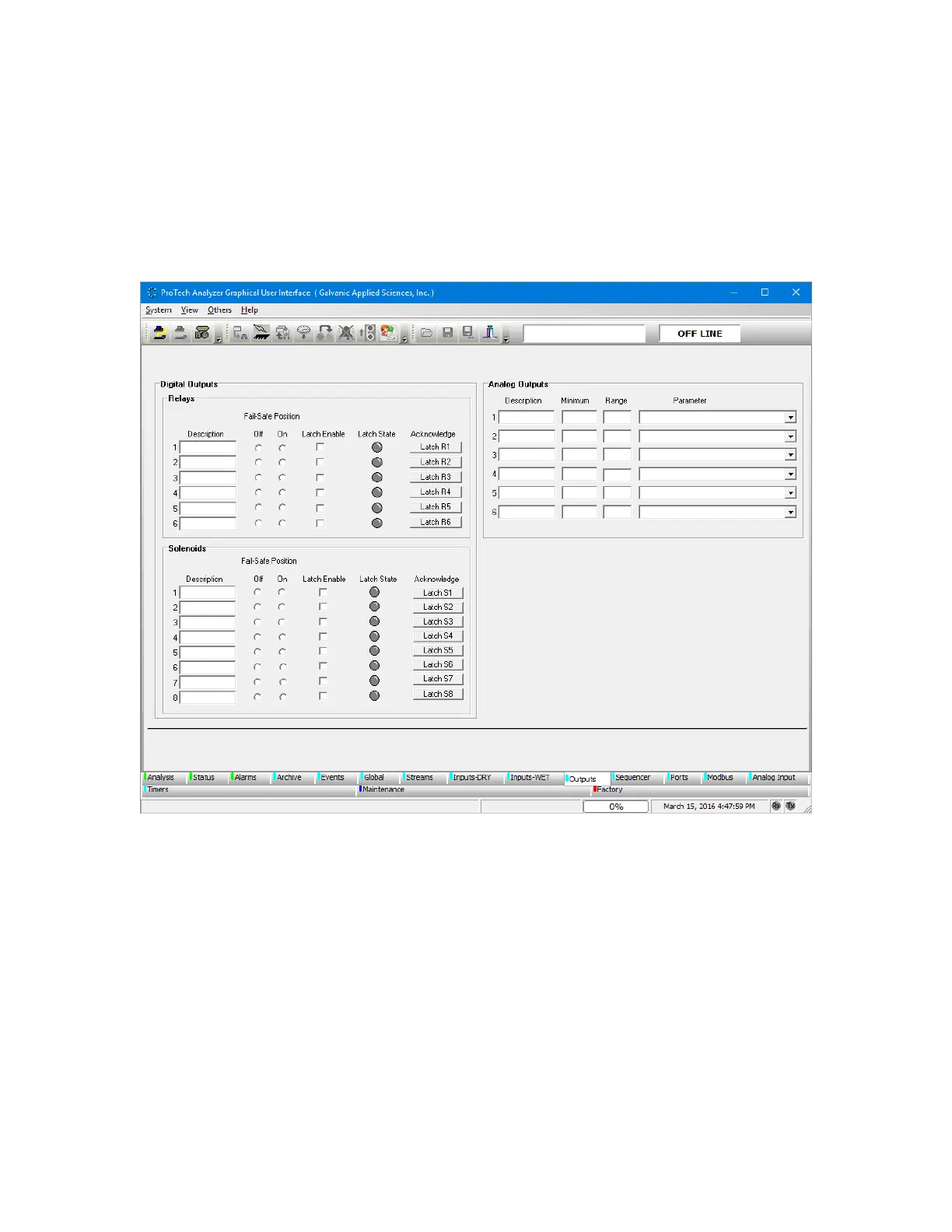

Figure 6-7: The Outputs Tab
