Revision 14
125 August 02, 2019
5.17 Analog Input Tab
The Analog Input tab (Figure 5-39) is divided into two main sections: Analog Inputs # 1 - 4
and Analog Inputs Alarm:

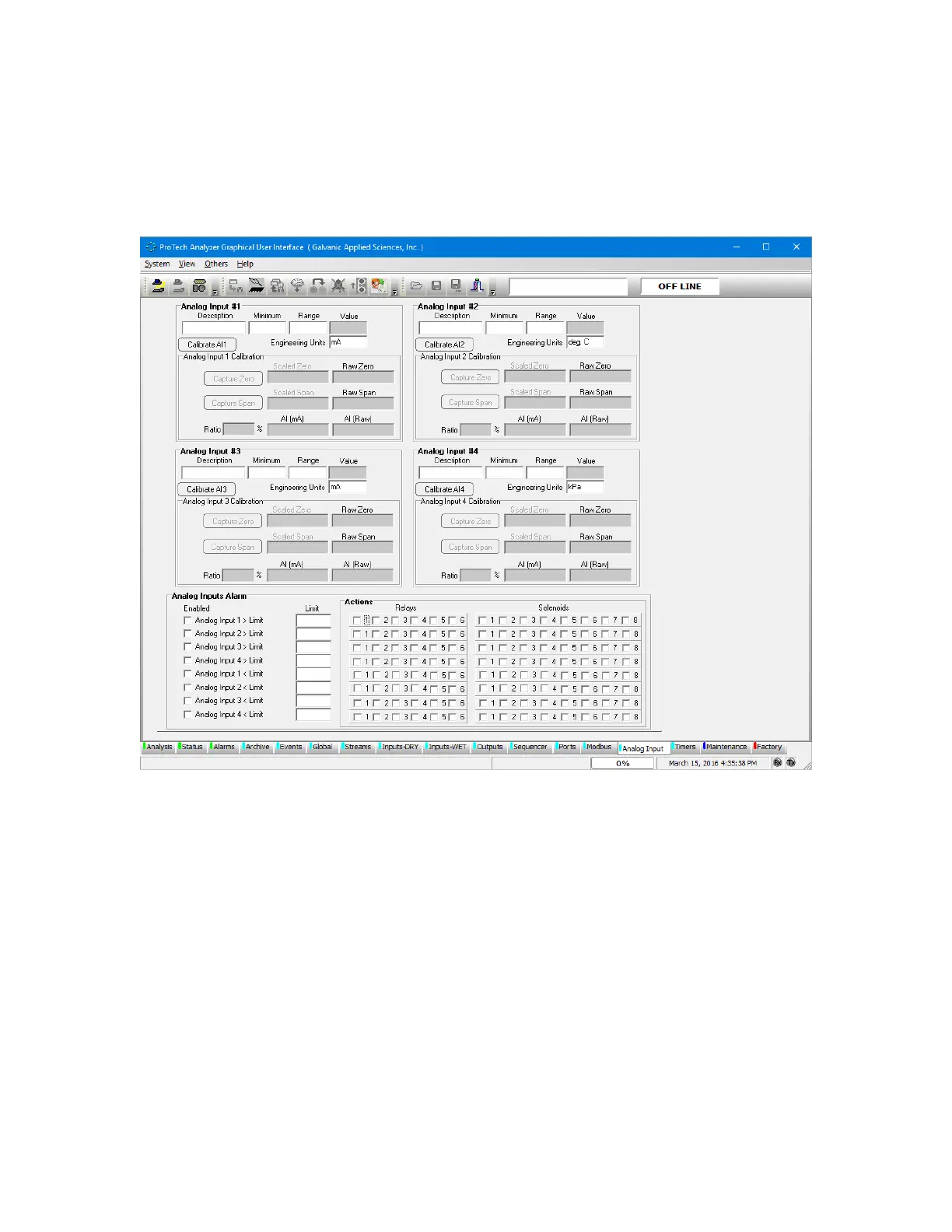

Figure 5-41: Analog Input
5.17.1 Analog Input #
There are four analog inputs, each of which contain are six data entry fields, six results fields
and three initiate buttons which are described below.
• Analog Input #1 and #2 - normally setup as default 4 -20 mA inputs but all the inputs can
be scaled to what the operator requires.
• Analog Input # 3 - default setup is for a thermocouple input from the total sulfur furnace if
the analyzer has that option.
• Analog Input # 4 -default setup is for an optional pressure transducer for live pressure
readings. Within each of the Analog Input boxes are six data entry fields, six results fields
and three initiate buttons which are described in Section 6.16.2
