3.5 Installing the Keypad, Sensing Tape and Humidifier
3.5.1 Installing the Keypad
Connect the keypad to the military connector on the left side of the chassis
3.5.2 Installing the Sensing Tape

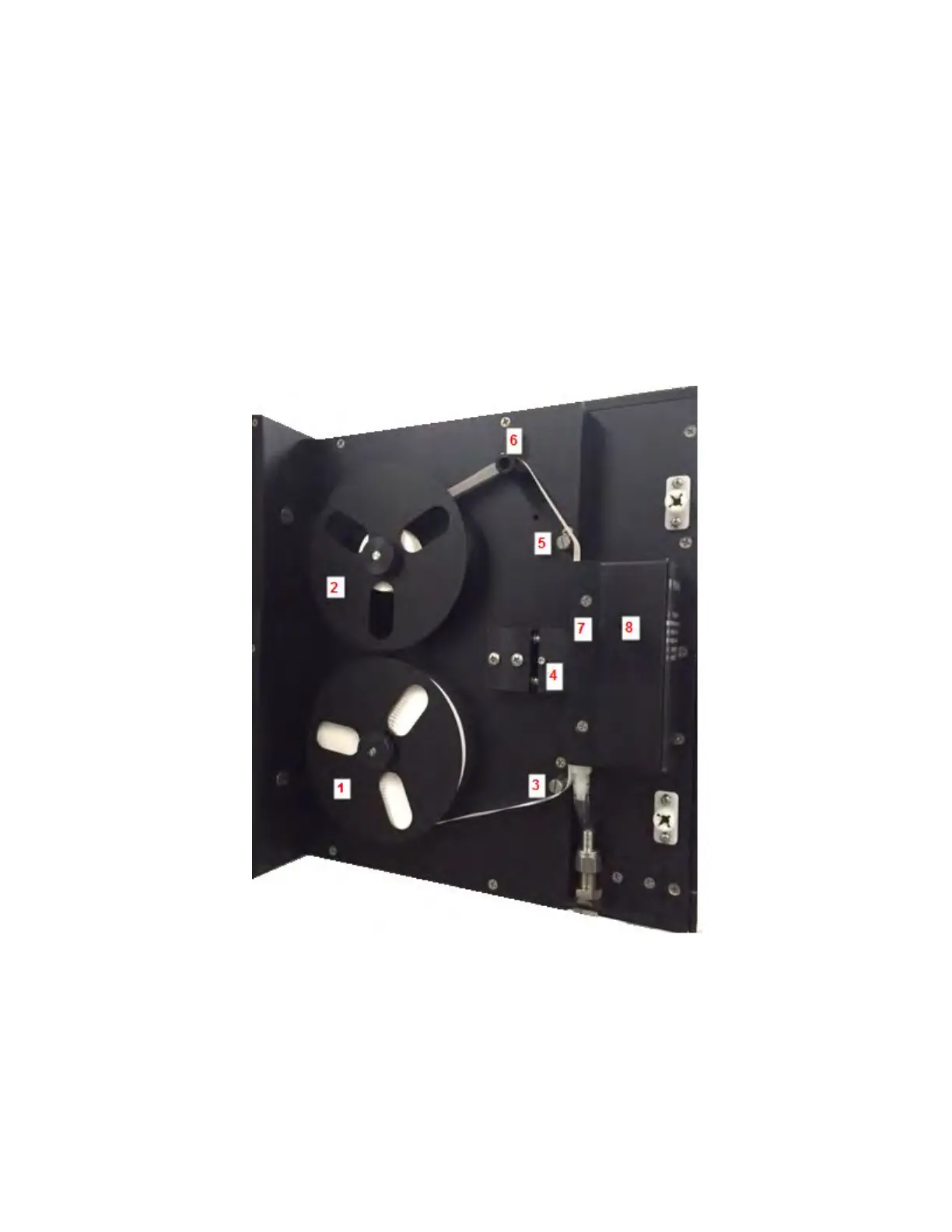

The sensing tape is installed in the tape enclosure. Figure 3-15 presents a photo of the tape
enclosure with all components numbered.
Figure 3-15: Tape Enclosure (see text for reference numbers)
