Revision 14
150 August 02, 2019

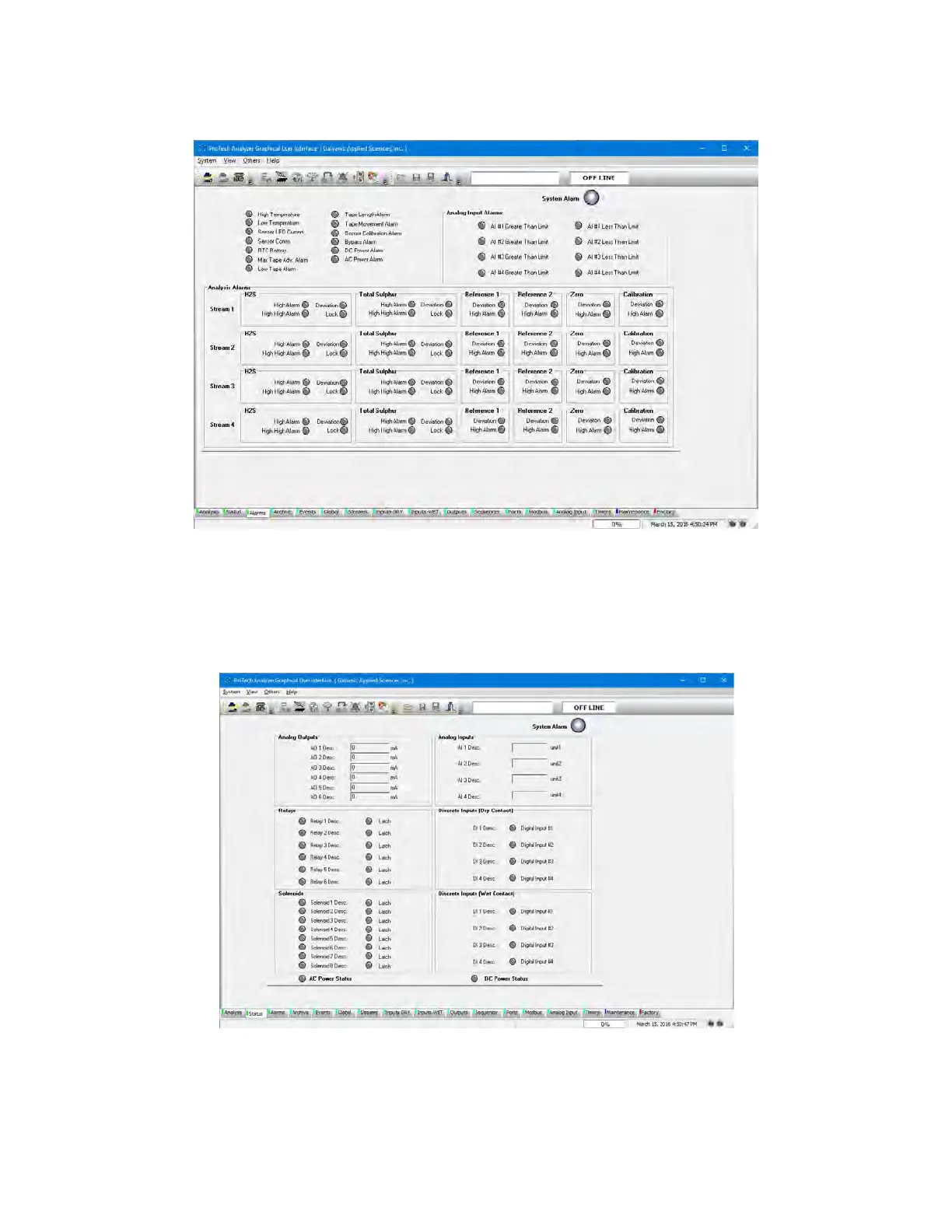

Figure 6-17: The Alarms Tab
The Status tab (Figure 6-18) gives the operator the current status of the: analog outputs,
relays, solenoids, Analog inputs, Discrete inputs, and what voltage input source is in use. In
some cases the activation or deactivation of the status indicators may suggest there is an
alarm associated with it. A detailed discussion of the Status tab is presented in Section 5.5.
Figure 6-18: Status Tab
