5.14.5 Digital Input Manual Sequencer Request
Enable Checkbox
The Digital Input Manual Sequencer Request Enable checkbox should be checked, if the
operator wants to initiate a manual sequence option from a digital input. As seen in Figure 5-
31, closing Digital Input 1 contact would now allow any of the 8 digital contacts to be used to
initiate a Manual sequence.

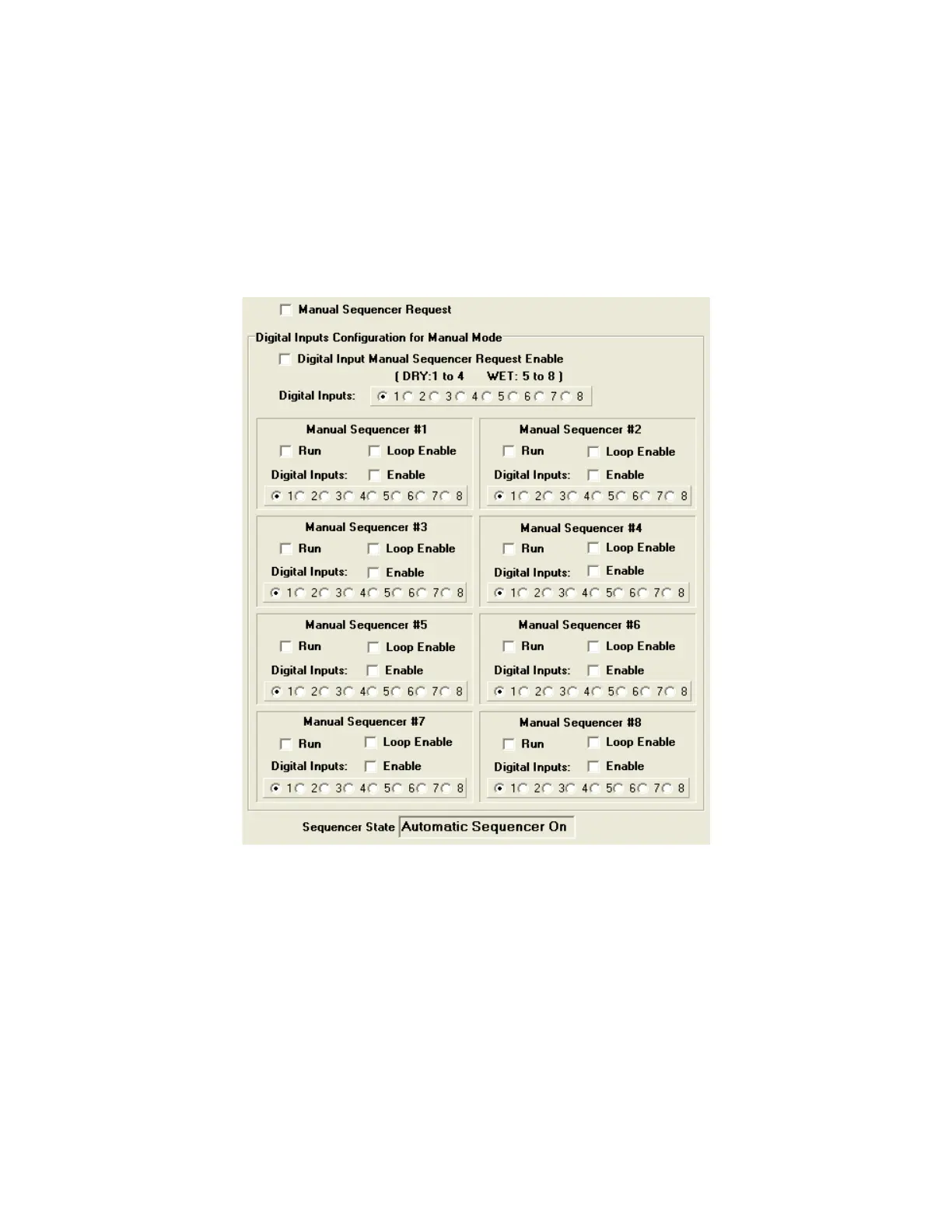

Figure 5-33: Manual Sequencer Fields
5.14.6 Manual Sequencer # 1 - 8
Each of the eight manual sequencer boxes include the following options:
• Run and Loop Enable Checkboxes - When the Manual Sequencer Request checkbox is
checked, the user can run individual manual sequences by checking the Run checkbox for
any particular manual sequence. The Loop Enable checkbox can also be checked to allow
the manual sequence to run indefinitely. If Loop Enable is not checked, the manual
sequence will only run once before returning to the automatic sequence.
