Revision 14
161 August 02, 2019
8.3 Alarms Tab
The top left side of the Alarms tab (Figure 8-1) are global alarms defined in Table 8-1. These
non-analysis related alarm parameters affect all streams identically and are related to
hardware and other physical parameters that affect the operation of the analyzer. In many
cases, the set point for these global alarms is user configurable. Each alarm can be
configured to a) be active or not active and b) to trigger certain outputs, either solenoids or
relays.

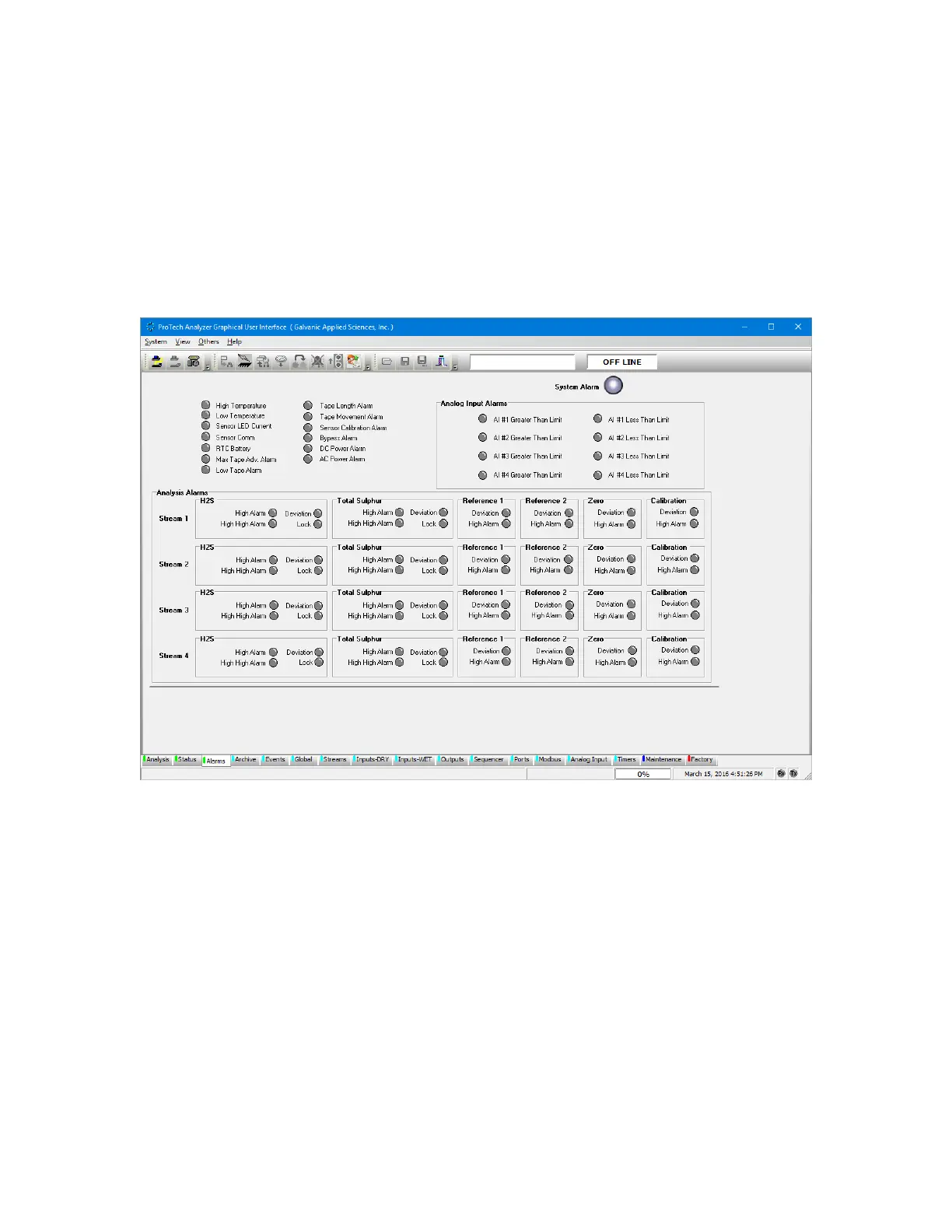

Figure 8-1: Alarms Tab
