6.3 Commonly Edited Parameters
There are four tabs in the application program that are commonly used to set up the
parameters for analyses.
6.3.1 The Streams Tab
Four different types of samples can be analyzed, analytical samples, reference samples,
calibration samples and zero samples. A maximum of four streams can be analyzed and the
level of H
2
S and the total sulfur concentration can be measured (if the total sulfur option is
included in the system). The Streams tab (Figure 6-3) is used to enter information about each
type of sample, timing information and alarm levels. A detailed discussion of the Streams tab
is presented in Section 5.10.

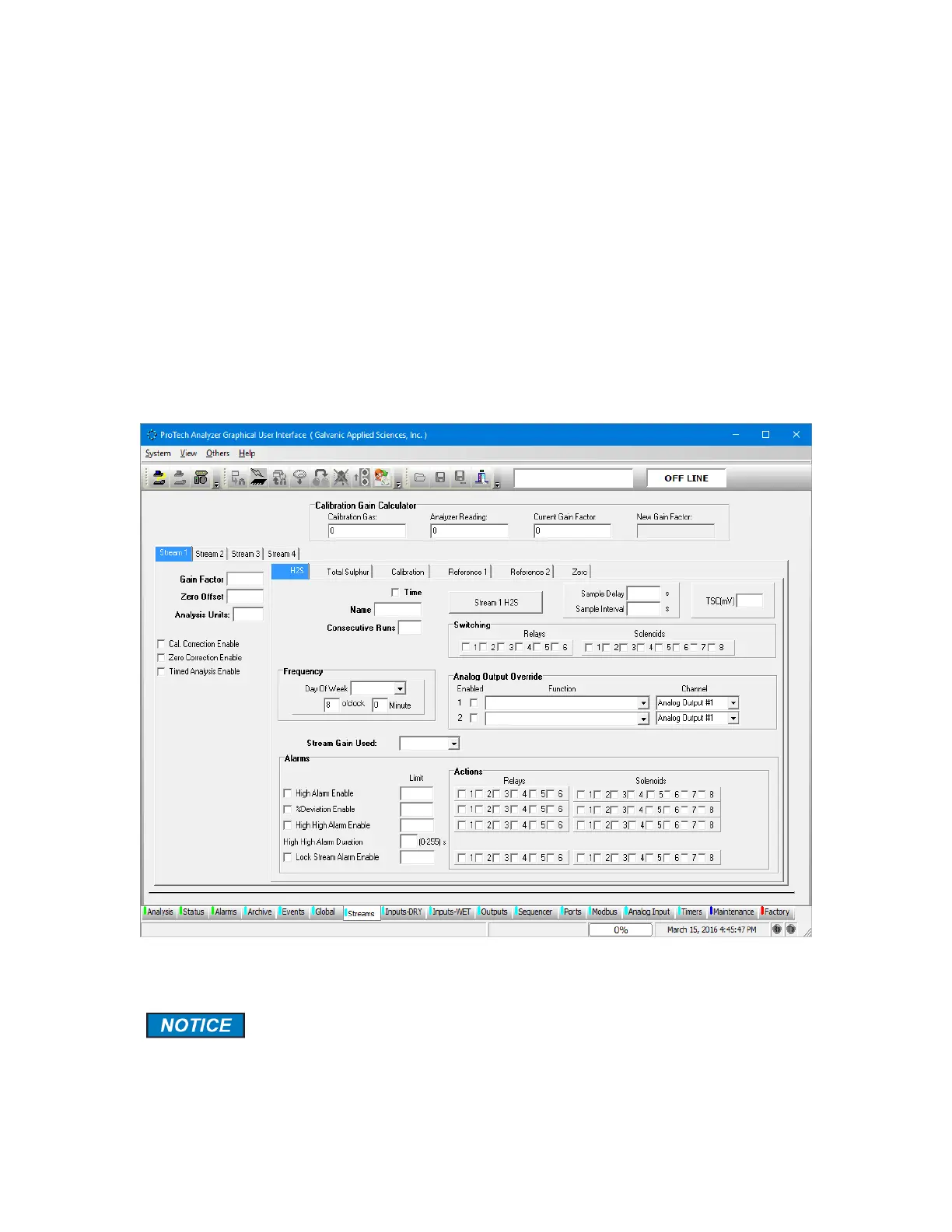

Figure 6-3: Streams Tab
When you have completed editing a tab, press the Temporary Write button
before going to another tab or page.
