SuperBus 2000 cellular backup module
Connect the SuperBus 2000 cellular backup module to the SuperBus 2000 2-amp power supply and panel as
shown in Figure 23.

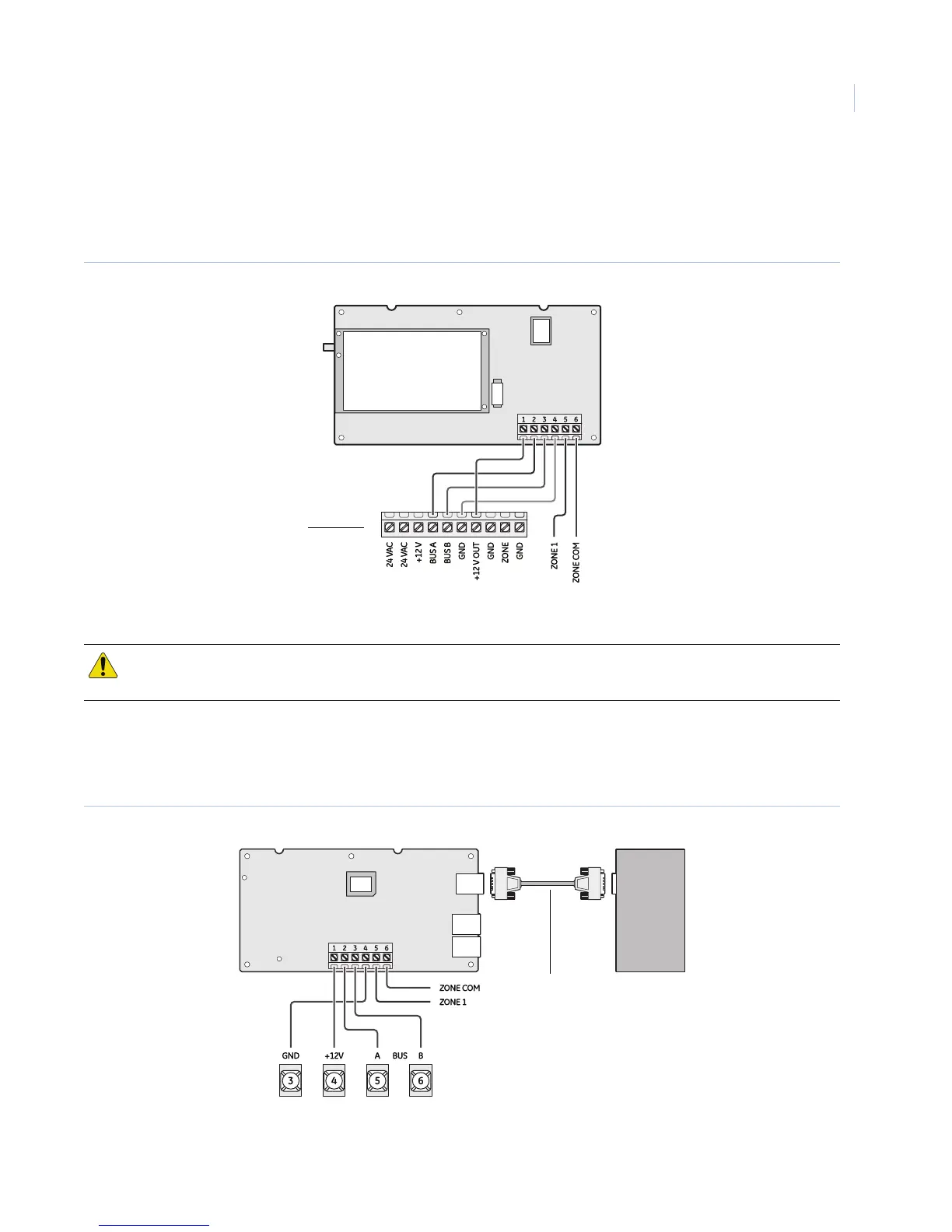

Figure 23. Wiring the cellular backup module to the panel
SuperBus 2000 automation module
Connect the SuperBus 2000 automation module to the panel as shown in Figure 24.
Figure 24. Connecting an automation device to the panel
CAUTION: Since the SuperBus 2000 cellular backup module draws more than 1 amp, it must be powered by the
SuperBus 2000 2-amp power supply and not the panel.
SuperBus 2000 2-amp
power supply terminals
ZONE COM
ZONE 1
Automation device
Panel terminals
Automation module
circuit board
DB-9 serial cable
