GE Security Concord 4 Installation Manual

Concord 4
Installation Manual
26
Connecting SuperBus 2000 touchpads
SuperBus 2000 touchpads may have wires or screw terminals. All use the same wiring scheme for power and
bus connections. Connect touchpads as shown in Figure 14.

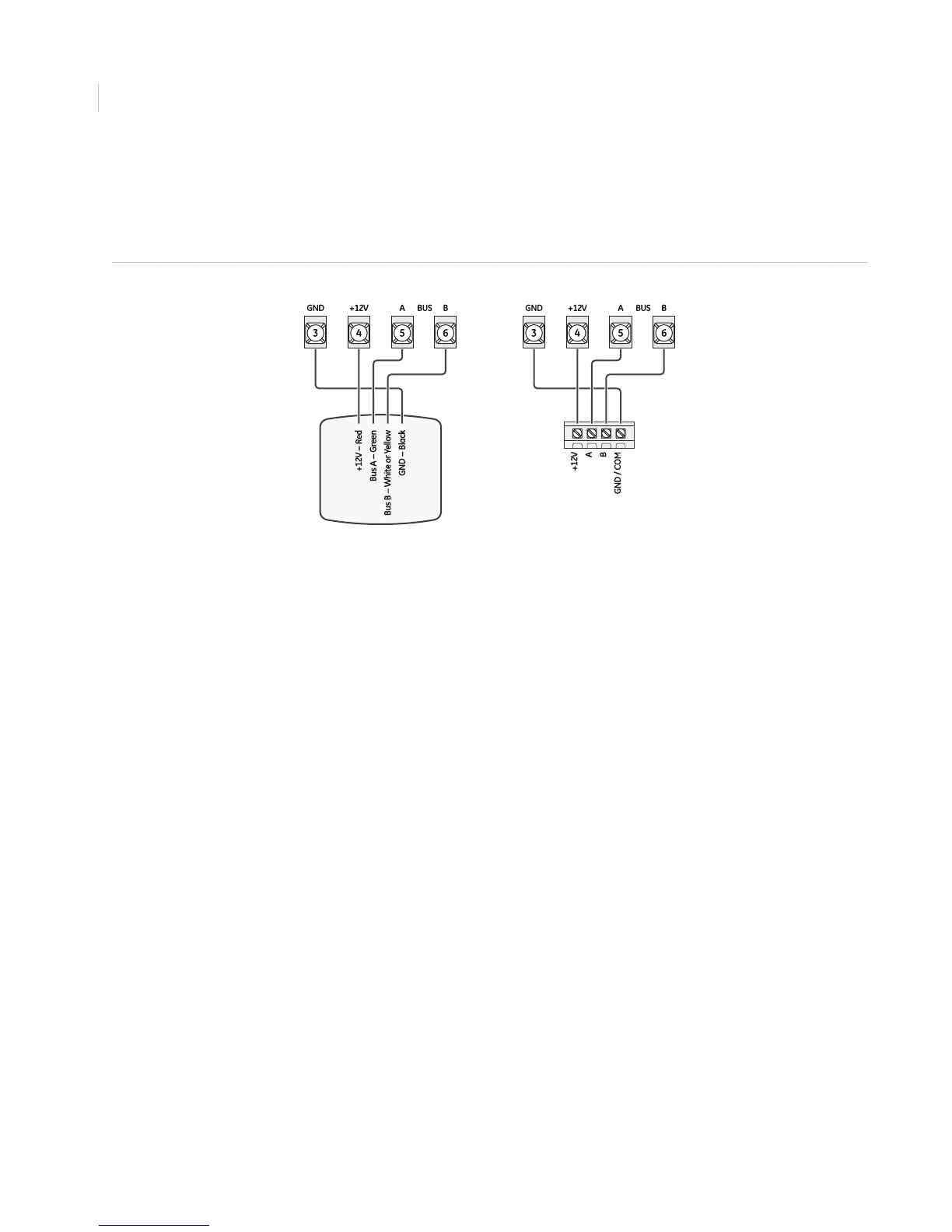

Figure 14. Connecting touchpads to the panel
SuperBus 2000 modules
You may install SuperBus 2000 modules inside the panel cabinet or away from the panel in their included
enclosure.
Mounting modules inside the panel enclosure
Use the following guidelines when mounting modules inside the panel enclosure (Figure 15):
• Up to 4 of the SuperBus 2000 modules listed in Table 1 on page 4 can be mounted inside the cabinet.
• The 2-amp power supply and phone interface/voice module each use two mounting spaces when
mounted inside the panel enclosure.
• The panel includes two support standoffs you install to secure module bookplates to the panel.
Even if you don’t plan to mount modules inside the cabinet, install the support standoffs for future use and to
avoid losing them.
The cabinet has built-in mounting clips on the top and sides that module backplates slide onto for mounting.
Touchpad with wires Touchpad with terminals
Panel terminals
