Concord 4
Installation Manual
40
Overview
For onsite system programming, you must have an alphanumeric touchpad.
Programming mode
You must use an installer/dealer code (default = 4321) to enter program mode. You may place the system into
programming mode only when you disarm all partitions.
Note: If the system is powered up after the programming touchpad is connected or if a bus command scan is executed, the
programming touchpad will be “learned” into the system and must later be manually deleted.
To enter program mode, do the following:
1. Make sure you disarm the system in all partitions.
2. Press 8 + 4321 + 0 + 0. The display shows SYSTEM PROGRAMMING.
To enter programming mode using a programming touchpad, do the following:
1. Connect the red, black, green, and white wires from the programming touchpad cable (60-791) to the
power and bus wires/terminals on an alphanumeric touchpad, matching the +12V (red), Bus A (green),
Bus B (white), and GND (black) on each.
2. Make sure the system is powered up and disarmed.
3. Connect the plug on the cable onto the panel programming touchpad header (see Figure 28).
4. Press 8 + 4321 + 0 + 2. The touchpad sounds one short beep. Press * and verify that the display shows
SERVICE TOUCHPAD ACTIVE.
5. Press 8 + 4321 + 0 + 0 and the display shows SYSTEM PROGRAMMING.
6. After programming is complete, disconnect the touchpad from the panel header.

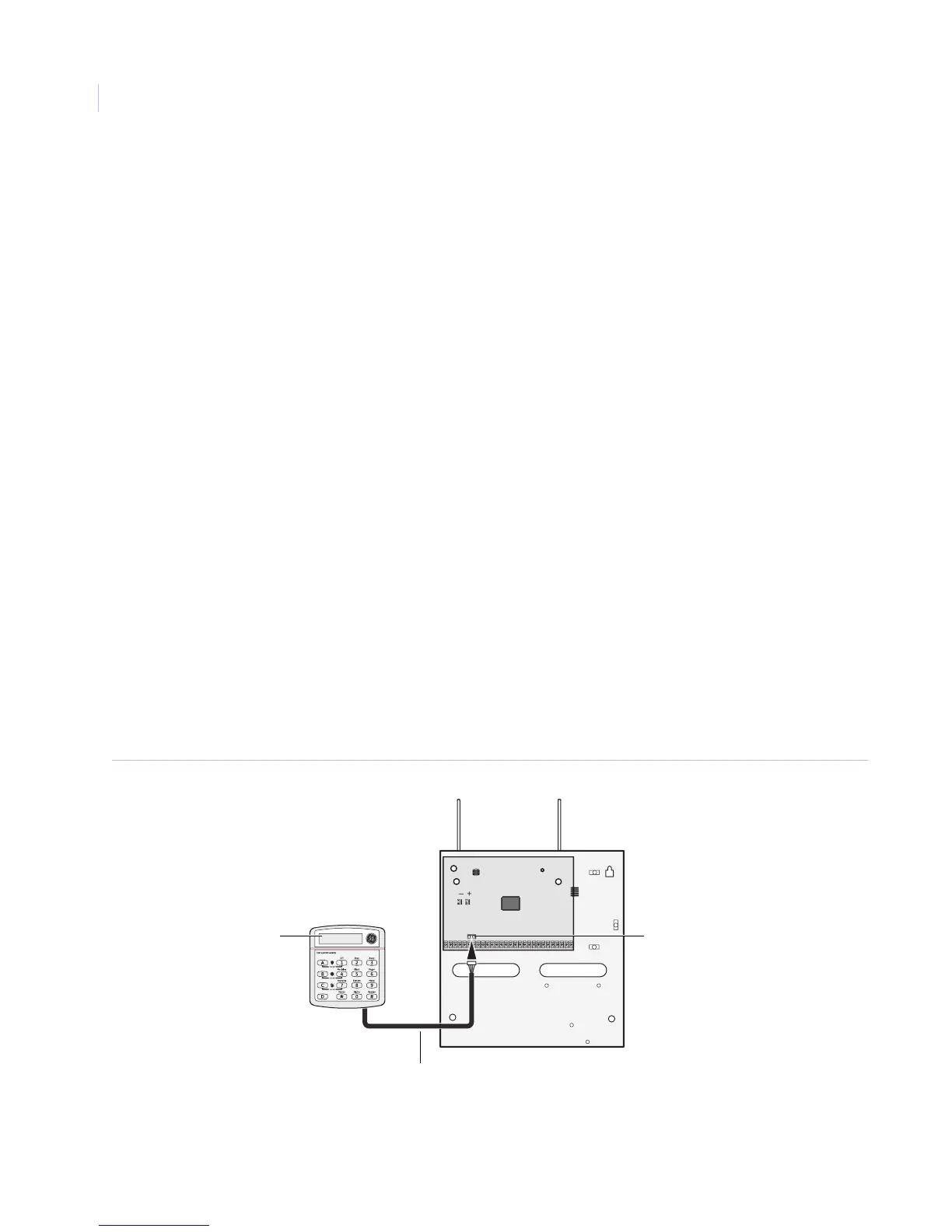

Figure 28. Programming touchpad
Programming touchpad connector
Programming touchpad cable
(60-791)
Programming touchpad
