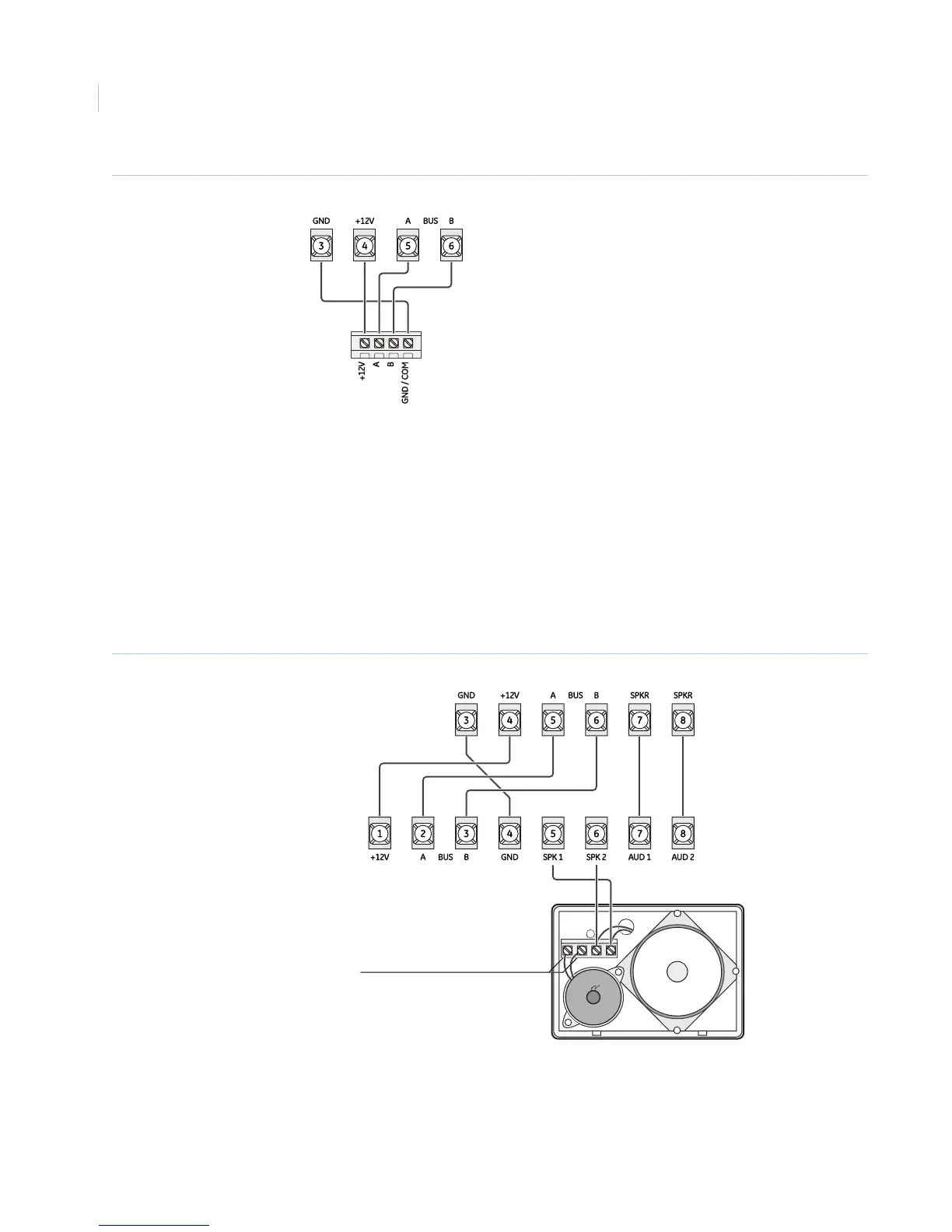

Figure 17. Wiring transceivers and receivers to the panel
SuperBus 2000 voice-only module
The module can be mounted inside or outside of the control panel cabinet. Refer to the SuperBus 2000 Voice
Only Module Installation Instructions included with each module, for complete mounting instructions.For
RJ-31X connections, see Installing an RJ-31X Phone Jack (13-081).
Note: In UL listed installations, the voice-only module is for supplementary use only.
The module requires panel power and bus connections, and speaker connection through panel terminals as
shown in Figure 18.
Figure 18. Wiring for the voice-only module
Transceiver/receiver terminals
Panel terminals
Module terminals
Panel terminals
Not used
