GE Security EST3 User Manual

Installation
EST3 Installation and Service Manual
5.22
Chassis installation in EIA 19-inch racks
Each 3-CHAS7 chassis or 3-ASU(/FT) Audio Source Unit
requires 12 inches (30.48 cm) of vertical rack space. 3/4 inch
(1.9 cm) blank plates are required at the top of the upper chassis
and the bottom of the lower chassis. A 1-1/2 inch (3.81 cm)
blank plate is required between each chassis.
12 In
(30.48 cm
)
12 In
(30.48 cm
)
12 In
(30.48 cm
)
[RACKSPAC.CDR]
3/4In(1.9cm)BLANKPLATE
3
/
4In(1.9cm)BL
A
NK PL
A
TE
1 1/2 In (3.81 cm) BLANK PLATE
1 1/2 In (3.81 cm) BLANK PLATE
Chassis 1
Chassis 2
Chassis 3

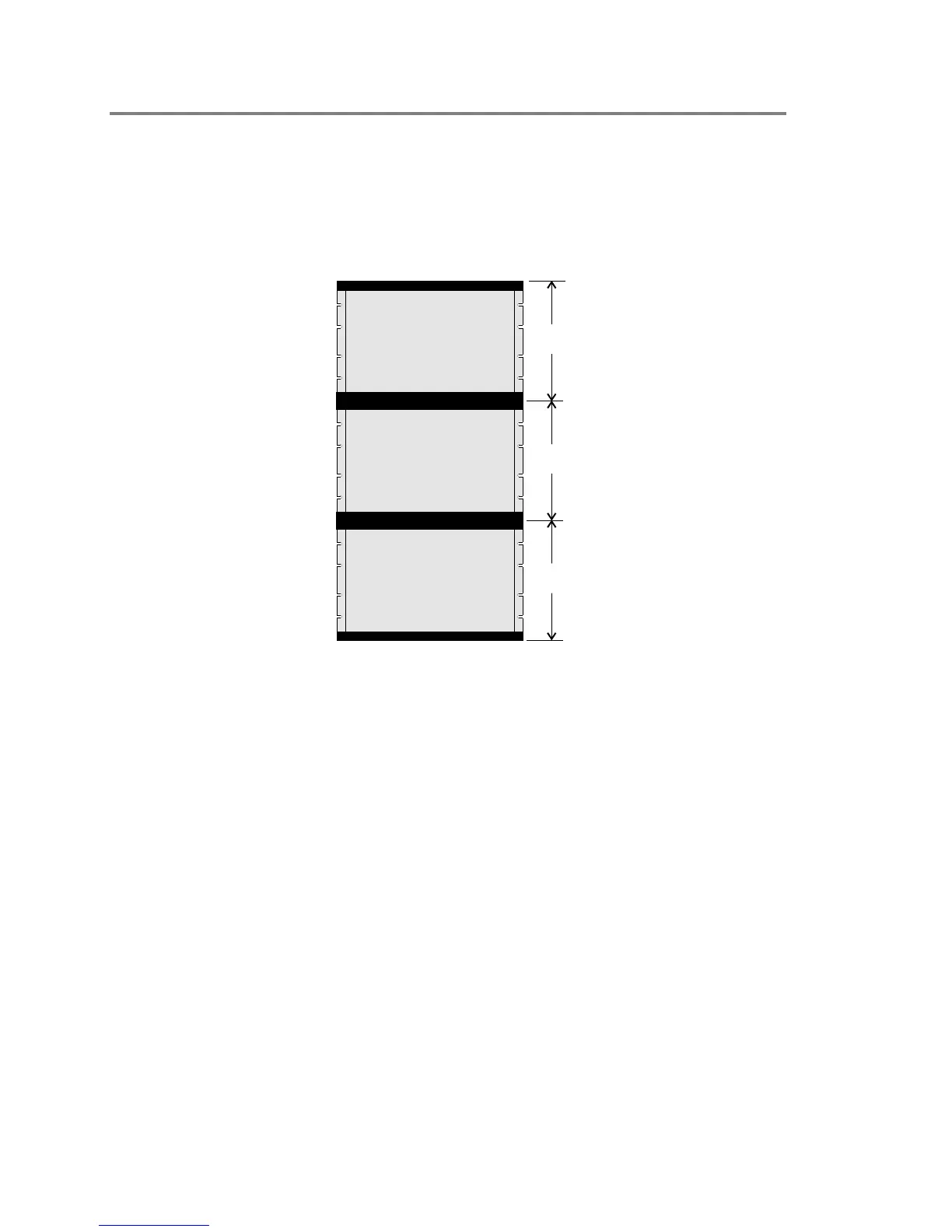

Figure 5-6: Rack-mounted chassis
