GE Security EST3 User Manual

System overview
EST3 Installation and Service Manual 1.17
NETWORK
BA
AB
IN
OUT
AUDIO
A IN
TB2
J5
NETWORK
BA
AB
IN
OUT
AUDIO
A IN
TB2
J5
NETWORK
BA
AB
IN
OUT
AUDIO
A IN
TB2
J5
NETWORK
BA
AB
IN
OUT
AUDIO
A IN
TB2
J5
B1_CAB1 B1_CAB2 B1_CAB3 B1_CAB4
CPU CPU CPU CPU
Downstream
Upstream

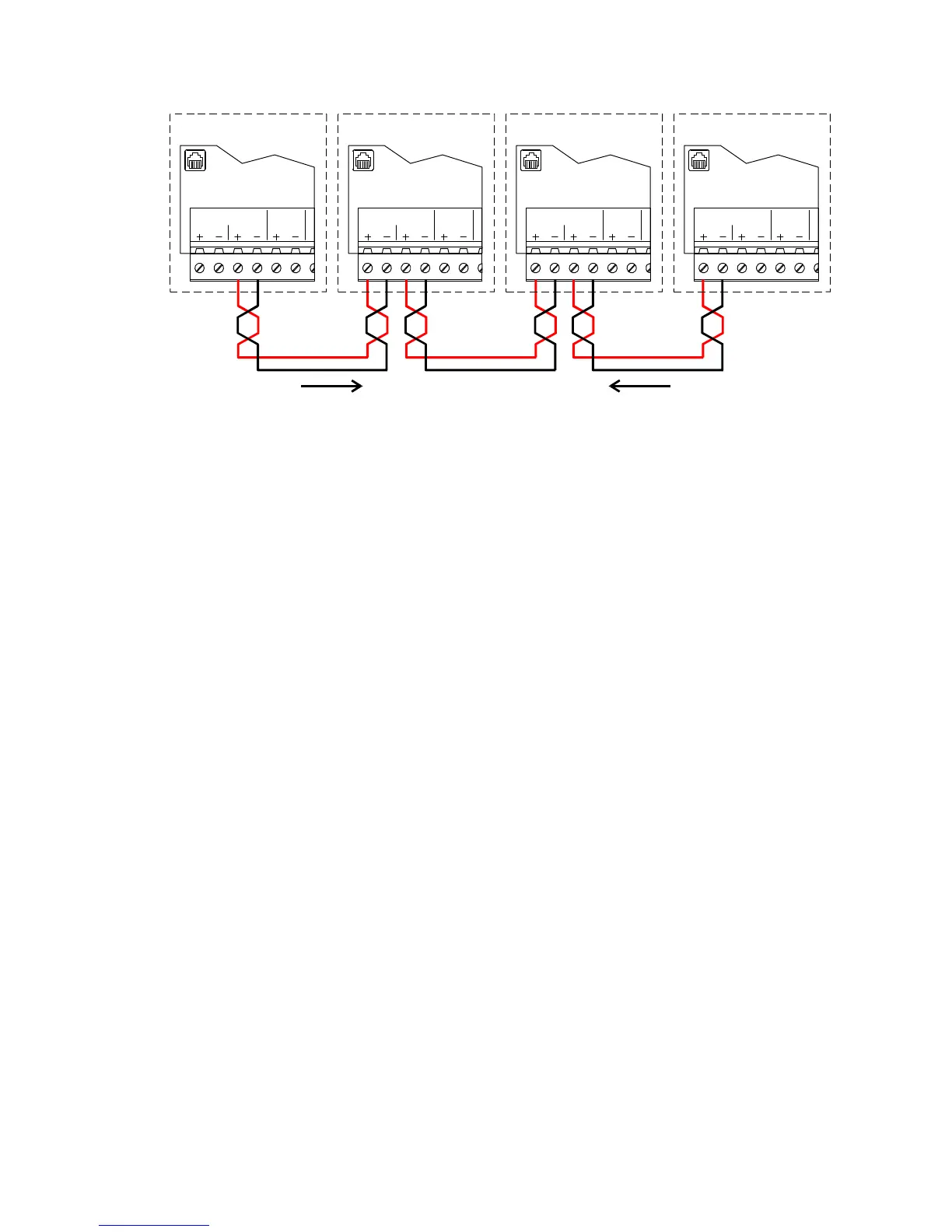

Figure 1-10: Class B network data riser wiring using copper wire
Note:
As a matter of convention, a Class B network data riser
should start at the CPU module that does not have wires
connected to its Network A port.
When wiring a Class B network, give careful consideration as to
the location of the service panel. The service panel provides a
single point from which you can download files to all other
panels on the network. For this function to work properly you
must use the panel at the start of the network data riser as the
service panel. See “Downloading data files” for more
information.
Class A network data risers
In a Class A network, a single break or short in the network data
riser wiring does not interrupt communications between panels.
Figure 1-11 shows the wiring for a Class A network.
