page | 17
4.

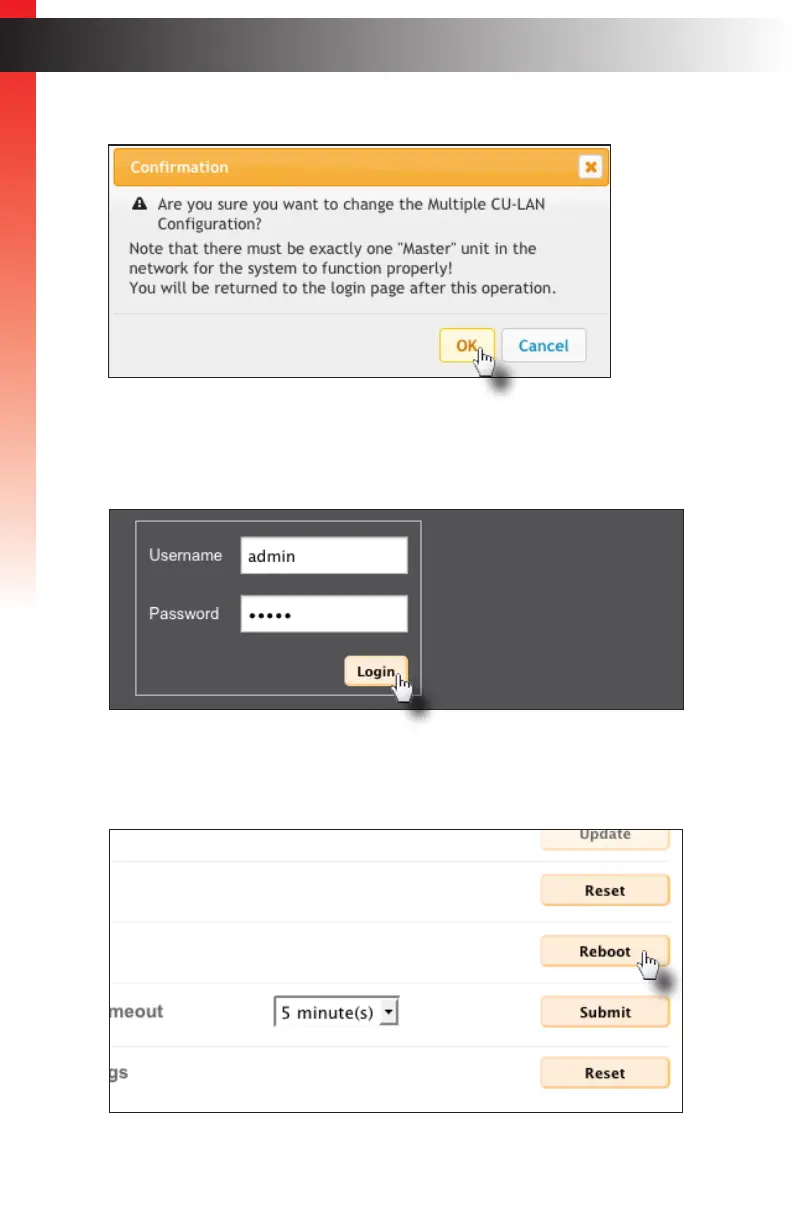

The following message box will be displayed:
5.
Click the
OK
button.
6.
The login screen will be displayed. Enter the administrator username and password
and then click the
Login
button.
7.
Return to the
System
>
Basic Settings
tab and click the
Reboot
button.
Getting S
tart
ed
Installation
28
30
Table of Contents
Table of Contents
9
Table of Contents
14
1 Getting Started
14
Introduction
14
IR Remote Control
17
Installing the Batteries
19
Setting the IR Channel
20
Installation
21
Separate Mode
25
Configuring Slave Units
28
Device Configuration
32
2 Basic Operation
39
2 Basic Operation
40
Groups, Users, and Members
40
Users
42
User Access Level Summary
44
Deleting Users
45
Editing Users
46
Groups
48
Creating Groups
50
Deleting Groups
52
Editing Groups
53
Adding Inputs and Outputs
54
Removing Inputs and Outputs
57
Adding Members
59
Removing Members
61
Routing
63
Outputs to Inputs
65
Blocking Inputs
66
Masking Outputs
68
Matrix View Mode
70
Using Presets
75
Creating Group Presets
78
Creating Quick Presets
82
Editing Quick Presets
84
Using Quick Presets
86
Menu System
87
Routing Inputs to Outputs
90
Routing Outputs to Inputs
96
Adding Outputs
101
Masking an Output
103
Selecting Presets
105
Setting the Network Mode
109
Control IP Settings
112
Video IP Settings
119
Telnet / TCP Settings
125
UDP Settings
130
Discovery Settings
136
Setting the IR Channel for the Matrix Controller
139
Front Panel Lockout
141
Front Panel Timeout
143
Resetting the Matrix Controller
145
Rebooting the Matrix Controller
149
Locking / Unlocking the Matrix Controller
152
Web Interface
153
Main
154
Groups > Inputs / Outputs
159
Groups > Members
160
Users
163
Network > IP
169
Network > TCP
171
Network > UDP
172
Network > Discovery
173
System > Basic Settings
175
System > Slave Config
177
3 Advanced Operation
181
#Factory_Reset
182
3 Advanced Operation
182
Commands
182
Factory_Reset
184
Get_Firmware_Version
188
Get_Gateway
189
Get_Ip_Address
190
Get_Ip_Mode
191
Get_Ipconfig
192
Get_Mask
193
Get_Netmask
194
Get_Telnet_Access
195
Get_Telnet_Pass
196
Get_Telnet_Port
197
Get_Udp_Access
198
Get_Udp_Echo_Access
199
Get_Udp_Echo_Ip
200
Get_Udp_Echo_Port
201
Get_Udp_Port
202
Get_Web_Port
203
Set_Block
206
Set_Discovery
207
Set_Discovery_Mode
208
Set_Gateway
209
Set_Ip_Address
210
Set_Ip_Mode
211
Set_Mask
212
Set_Netmask
213
Set_Port_Mode
214
Set_Showme
215
Set_Telnet_Access
216
Set_Telnet_Port
217
Set_Udp_Access
218
Set_Udp_Echo_Access
219
Set_Udp_Echo_Ip
220
Set_Udp_Echo_Port
221
Set_Udp_Port
222
Set_Web_Port
223
Use_Telnet_Login
224
Use_Telnet_Welcome
225
4 Appendix
229
4 Appendix
230
Firmware Update Procedure
230
Updating Sender and Receiver Units
233
Menu System Summary
241
Specifications
244
Index
245
