Basic Operation
Using Presets
5. Enter the name of the preset in the Name eld. This is required.
6. Perform one of the following:
► Click the Load Current State button to use the current routing state as a preset.
If this option is used, skip to Step 9.

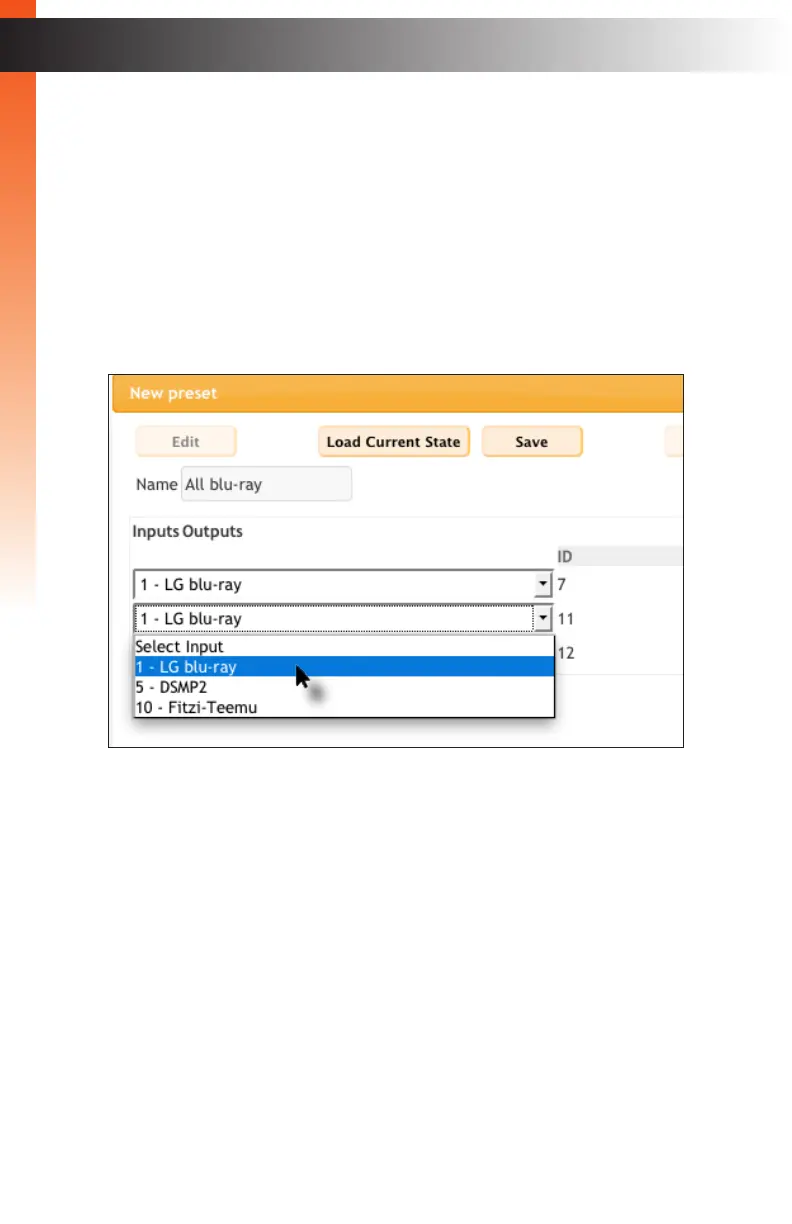

► Click the drop-down list, under the Inputs column.
7. The drop-down list will display all available inputs. The Outputs column will list all
available outputs.
8. Select the desired input from the drop-down list, for each output that is listed.
For demonstration purposes, our group only contains three inputs and three outputs.
The input(s) and output(s) that are displayed in this dialog box will be determined by
the devices which have been assigned to the Associated Inputs and Associated
Outputs column under the Group menu.
When creating user presets, only one input can be selected for each output that is
listed. Only inputs can be selected. Outputs cannot be selected when creating a
preset. If you wish to change the availability of an output, under the Outputs
column, go the Groups menu and change the list of Associated Outputs, as desired.
See Creating Groups (page 38) for more information.
