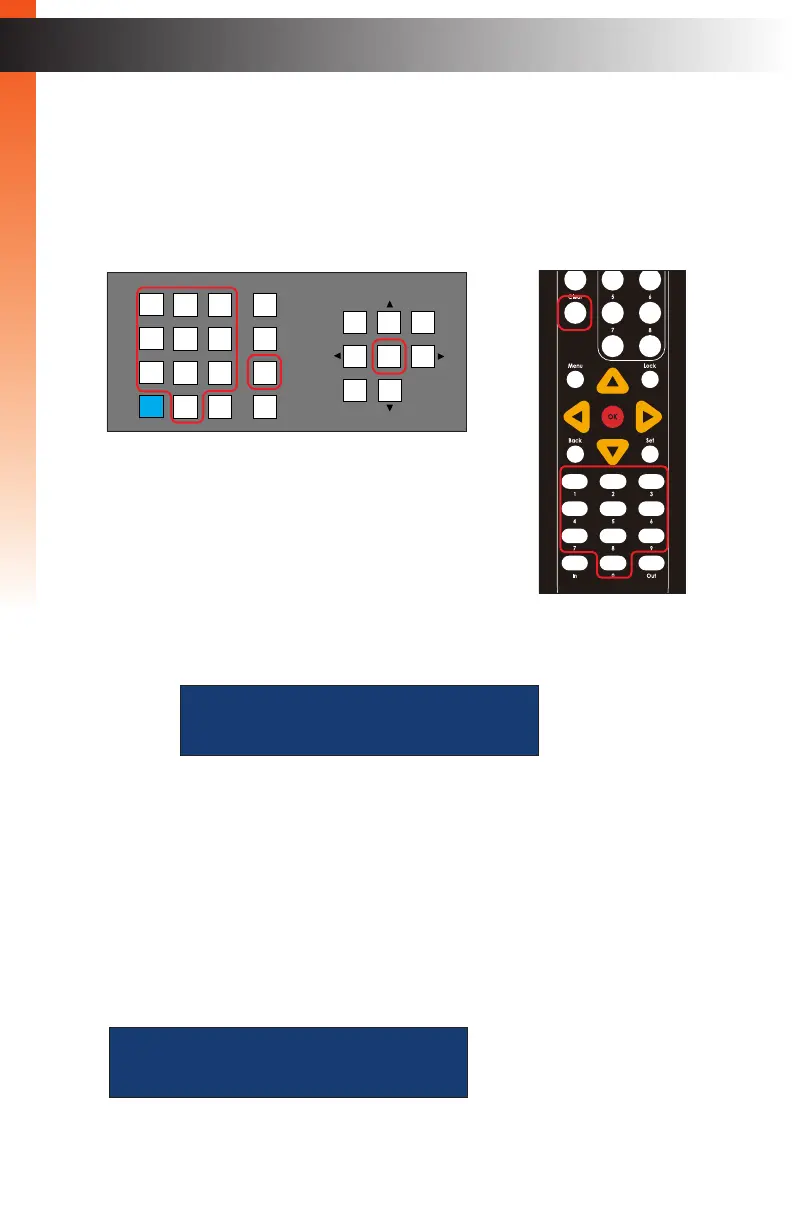

7. Select the output by one of the following methods:
► Select by Output Channel
a. Use the numeric keypad to enter the Output ID. If you make a mistake,
press the Clear button to erase the entry. Press the OK button to accept
the selection.
► Browse by Output
a. Press the BROWSE button on the front panel.
b. The output selection screen will be displayed:
c. Use the ◄ or ► buttons to buttons to select the desired output.
d. Press the SEL button on the front panel or the OK button on the IR remote
control to select the current output.
Press the BACK on the front panel or on the IR remote control to return
to the previous screen.
8. The route details screen will be displayed.
Basic Operation
Menu System
mtr-d3
(( back sel ))
route details
in out add GO
OR
LAN
POE
5V DC
1 2
Matrix Controller
Status
IR
Power
Menu
1 2 3
4 5 6
7 8 9
In 0 Out Set
Clear
Mask
Preset
Back
OK
Lock
