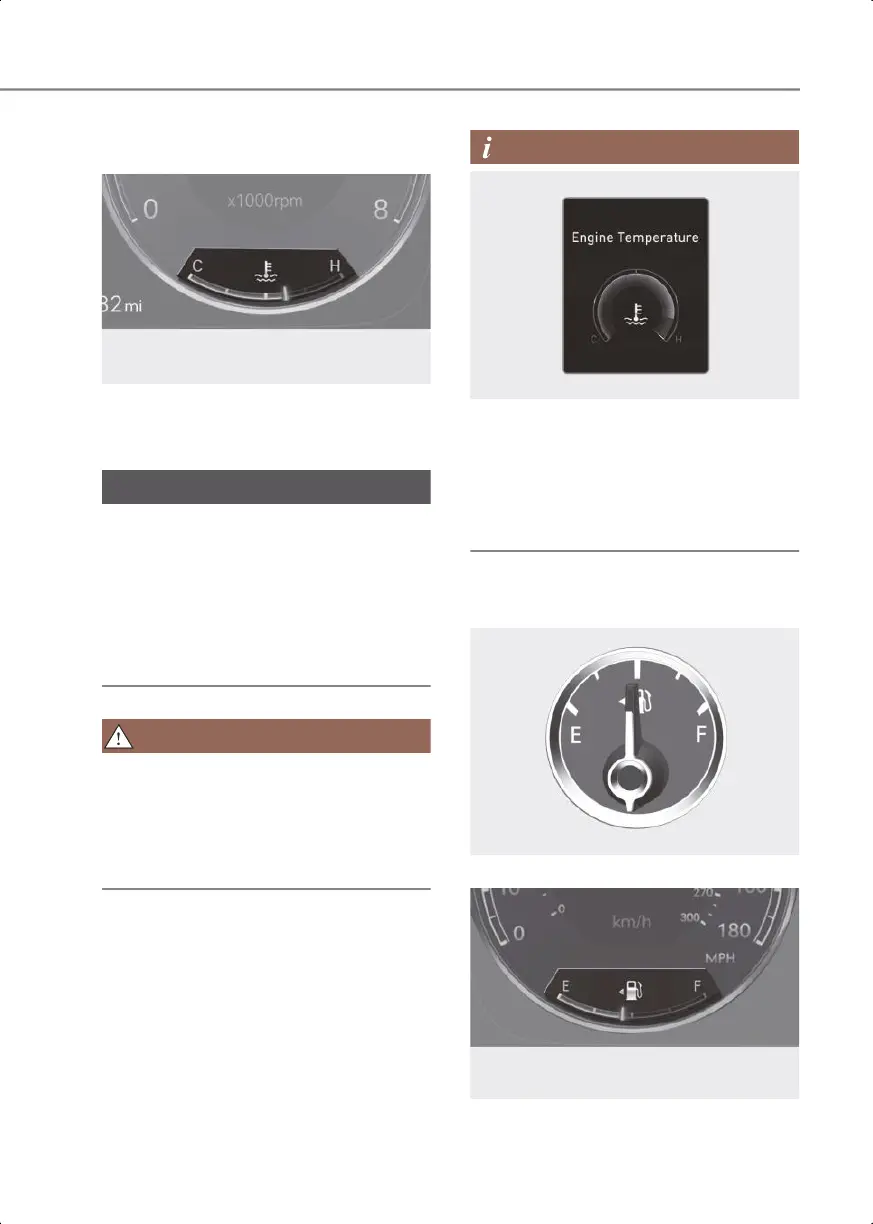

Engine coolant temperature gauge
(for 12.3-inch 3D cluster)
OIK043009N
This gauge indicates the temperature of
the engine coolant when the Engine
Start/Stop button is in the ON position.
If the gauge pointer moves beyond the
normal range area toward the "H (Hot)"
position, it indicates overheating that
may damage the engine.
Do not continue driving with an
overheated engine. If your vehicle
overheats, refer to the "If The Engine
Overheats" section in chapter 8.
Never remove the engine coolant
reservoir cap when the engine is hot. The
engine coolant is under pressure and
could cause severe burn. Wait until the
engine is cool before adding coolant to
the reservoir.
OIK040080L
For 8-inch instrument cluster, you can
check the engine coolant temperature in
the Utility view on the cluster.
Refer to the "Cluster Display (Type A)",
"Cluster Display (Type B)" section in
chapter 4.
Fuel gauge
8-inch
OJX1049032
12.3-inch 3D
OIK043011N
