Safety system
3-38

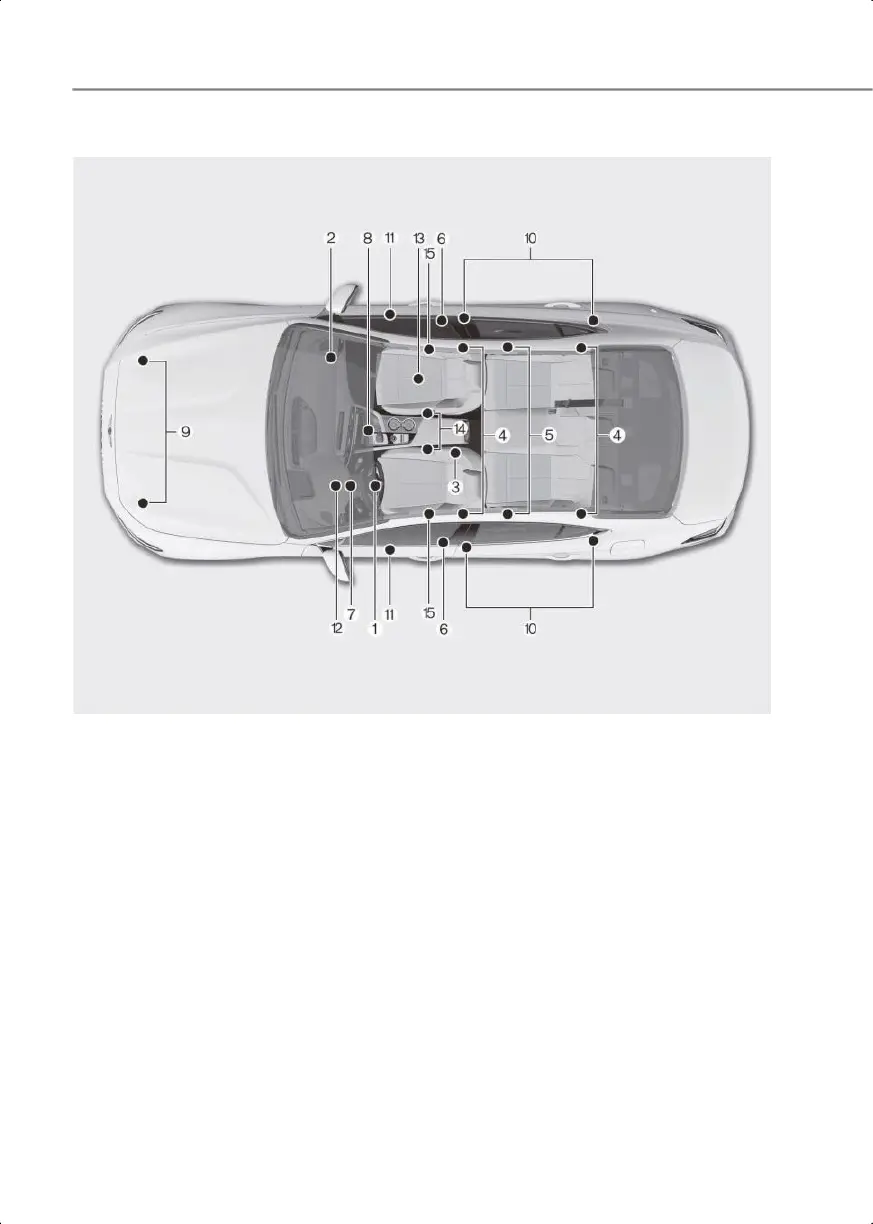

SRS components
OIK033089N
The SRS consists of the following components:
(1) Driver's front airbag module
(2) Passenger's front airbag module
(3) Front center side airbag module
(4) Front/rear side airbag modules
(5) Curtain airbag modules
(6) Retractor pretensioner
(7) Airbag warning light
(8) SRS control module (SRSCM)/Rollover sensor
(9) Front impact sensors
(10)Side impact sensors (acceleration)
(11) Side impact sensors (pressure)
(12)Driver's knee airbag module
(13)Occupant Classification System (OCS)
(14)Seat belt buckle sensor
0_IK_PE_en_US.book Page 38
