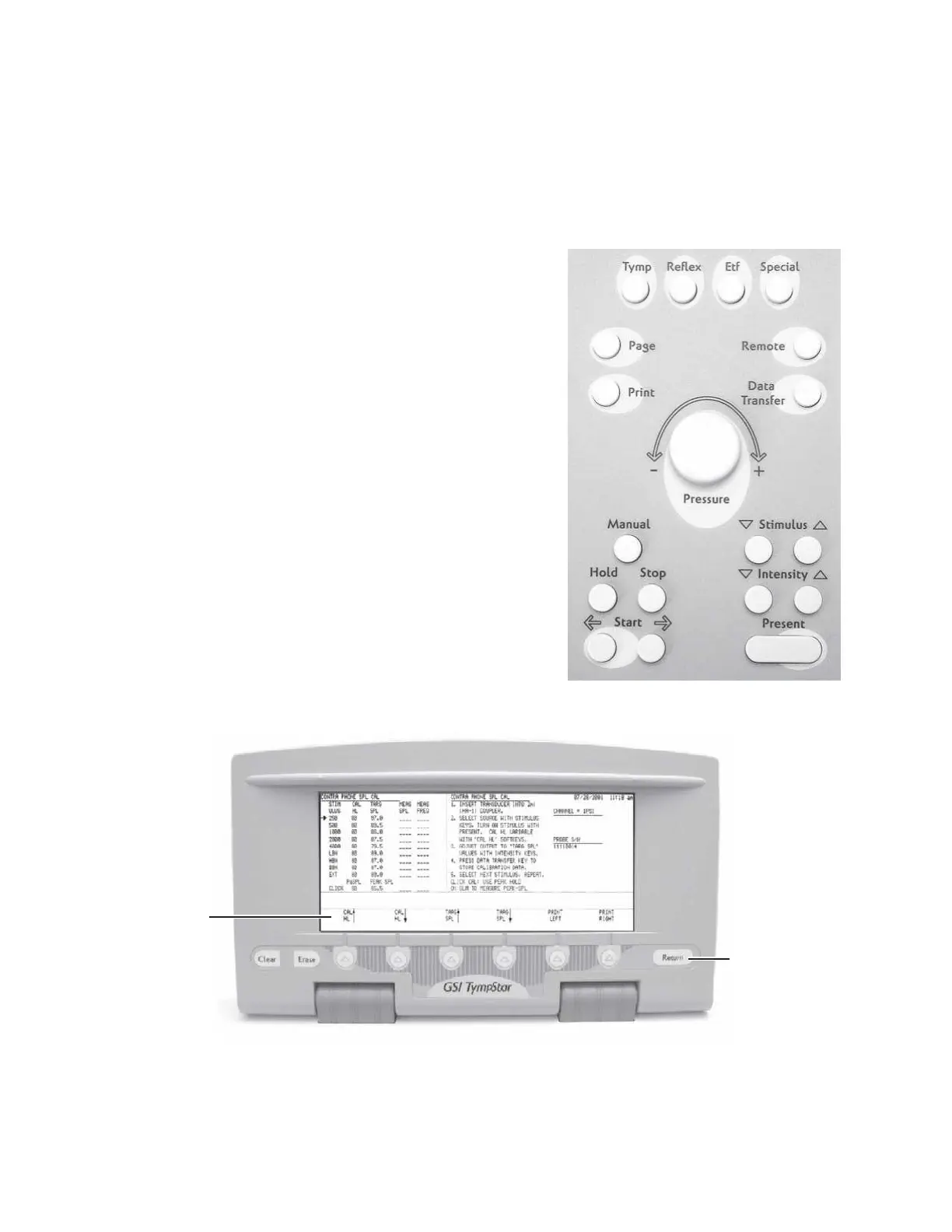

The TympStar is calibrated using a combination of front panel hardkeys and LCD

panel softkeys.

Hardkeys are used as follows:

Stimulus Up/Down arrows-

Scrolls up or down through available

stimulus tone frequencies.

Intensity Up/Down arrows-

Adjusts output level of stimulus tone up

or down in 0.5dB increments.

Present bar-

Toggles the stimulus tone on and off.

Data transfer key-

Stores currently displayed calibration

values of tone frequency and level in the

TympStar’s memory.

Return key (LCD panel)-

Returns to previous (higher) level in the

calibration menu hierarchy.

RETURN

hardkey

Grason-Stadler

Chapter 4

Calibration procedures

TympStar calibration

controls

Hardkeys

Softkey

functions

4 - 28
