Calibration
Softkeys The softkey functions are displayed on the LCD above the softkeys. Softkey func-
tions change to support the selected calibration test.
Softkeys are for the following functions :
• Select calibration functions from the Main Menu
• Navigate through specific calibration menus
• Print calibration data sheets or calibration instructions
• Adjust HL and target SPL levels
Selecting calibration functions:

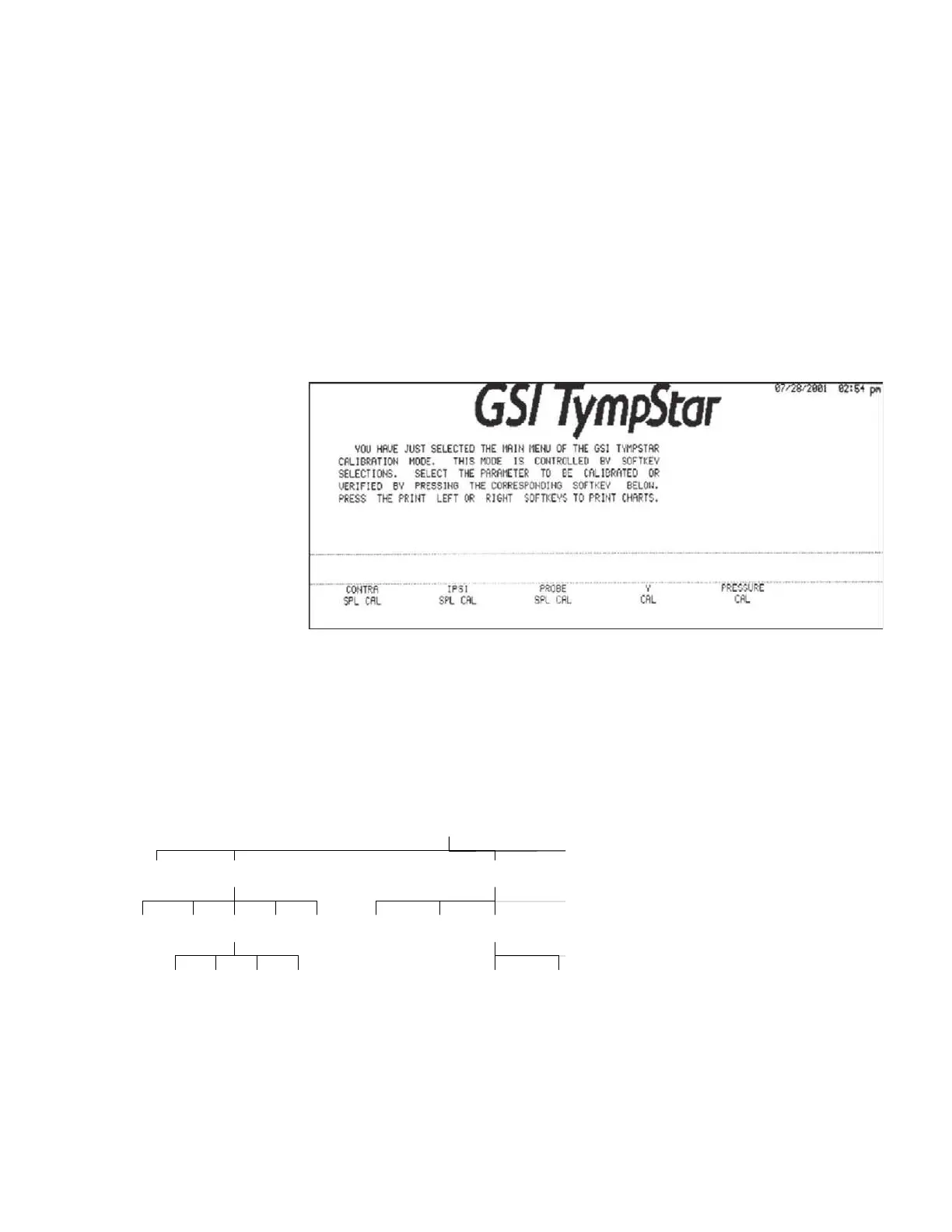

The Main Calibration Menu is displayed when the TympStar enters the Calibration
Mode. The Version 1 Main Calibration Menu is shown below.
Calibration functions are shown across the bottom of the screen and can be selected
by pressing the desired softkey.
Navigating menus:
Each calibration test function is supported by a unique menu hierarchy of tests as
illustrated by the Pressure Cal menu hierarchy shown below.
P R ESSU R E
CAL
S E T S E T VERIF Y
A M B IE N T -6 0 0/40 0 CAL
G O T O GO T O LEA K P R IN T P R IN T S T EP - S T E P + SA F ETY
-6 00 + 40 0 RAT E LEF T R IG H T P R E SSU R E P R E SS U R E VAL V ES
-6 00 + 40 0 P R IN T P R IN T - OVE R + O V E
LEAK LEA K L E F T R IG H T P R E S S URE P R E S S U
Pressing a softkey at one level causes the screen for the selected level to be dis-
played
. Pressing the RETURN hardkey on the LCD panel returns to the previous
level.
GSI TympStar Version 1 and Version 2 Service Manual 4 - 29
