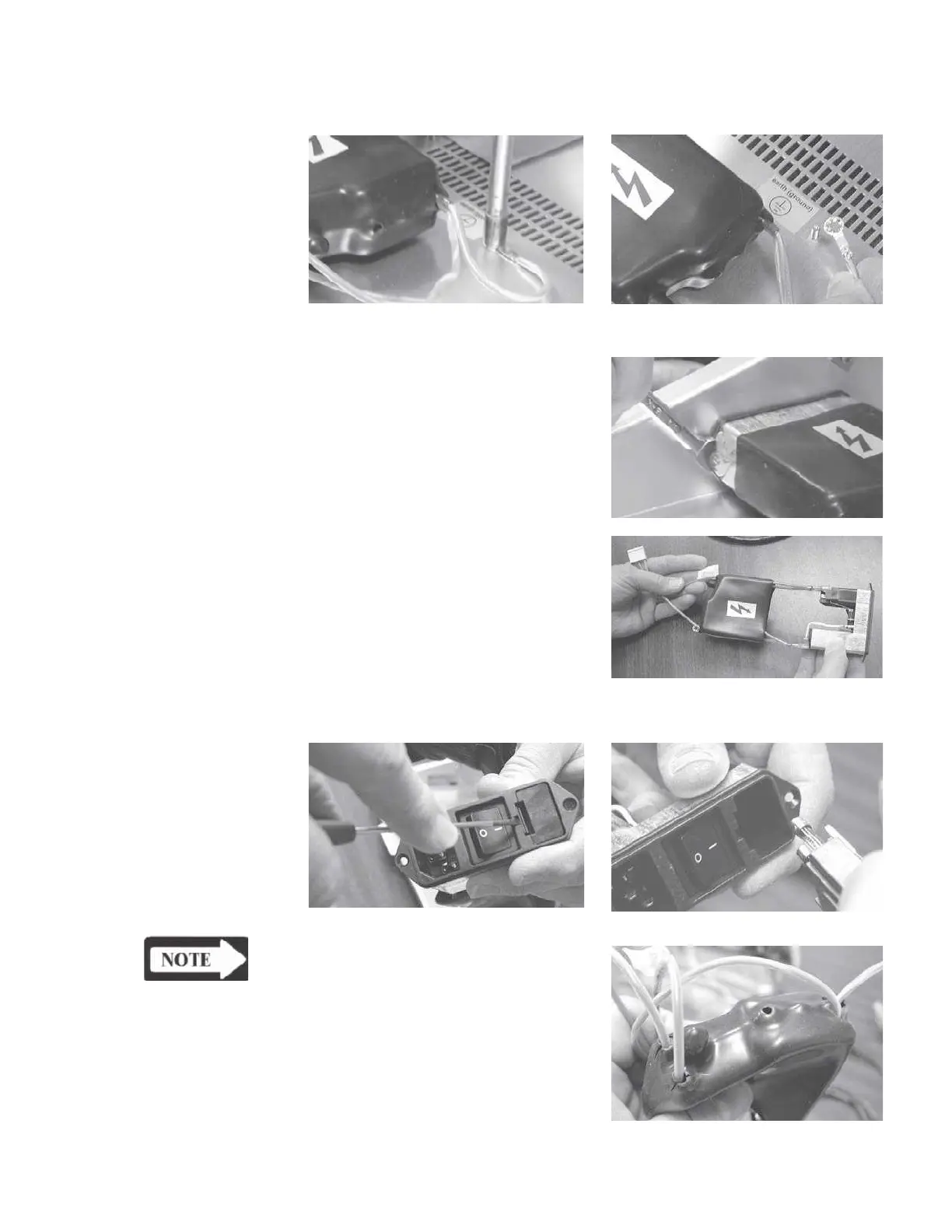

Disassembly

Removing the power

Step 1

module

Disconnect the grounding lug connection.

Step 2

Pull the protective rubber boot away

from the side panel and remove the

two retaining nuts using a 1/4" open-

end wrench.

Step 3

Remove the power module from the

chassis.

Fuse holder

The fuse holder can be removed us-

ing a flat-edge screwdriver.

NOTE

Holes may need to be cut in re-

placement protective rubber boots

to accommodate wiring harnesses.

GSI TympStar Version 1 and Version 2 Service Manual 5 - 9
