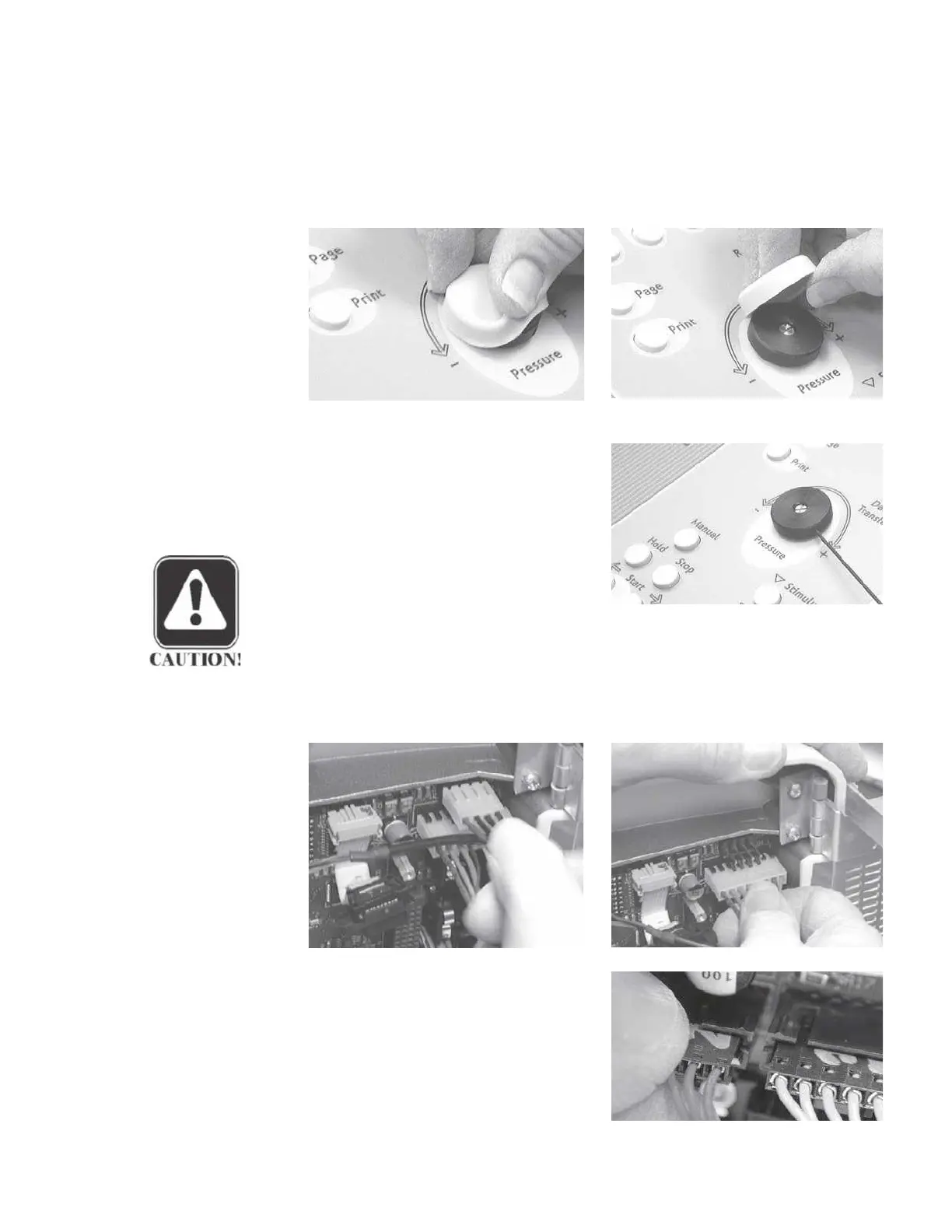

Disassembly

Removing the digital

Step 1

board

Remove the PC104 board using the procedure provided earlier in this chapter.

Step 2

Remove the rubber pressure adjustment knob cover by rubbing the knob cover

at the edge of the knob.

Step 3

Remove the pressure adjustment knob

using a 1/16" allen wrench. Loosen

the two setscrews and lift the knob off

the panel.

CAUTION

Verify that there is clearance be-

tween the bottom of the knob and

the panel surface when reinstalling

and tightening the knob to avoid scratching the panel.

Step 4

Disconnect the 4-wire and 8-wire analog board cables.

Step 5

Disconnect the six pump assembly

cables by disengaging each locked

connector and pulling the connectors

straight away from the board.

GSI TympStar Version 1 and Version 2 Service Manual

5 - 17
