Operation Summary

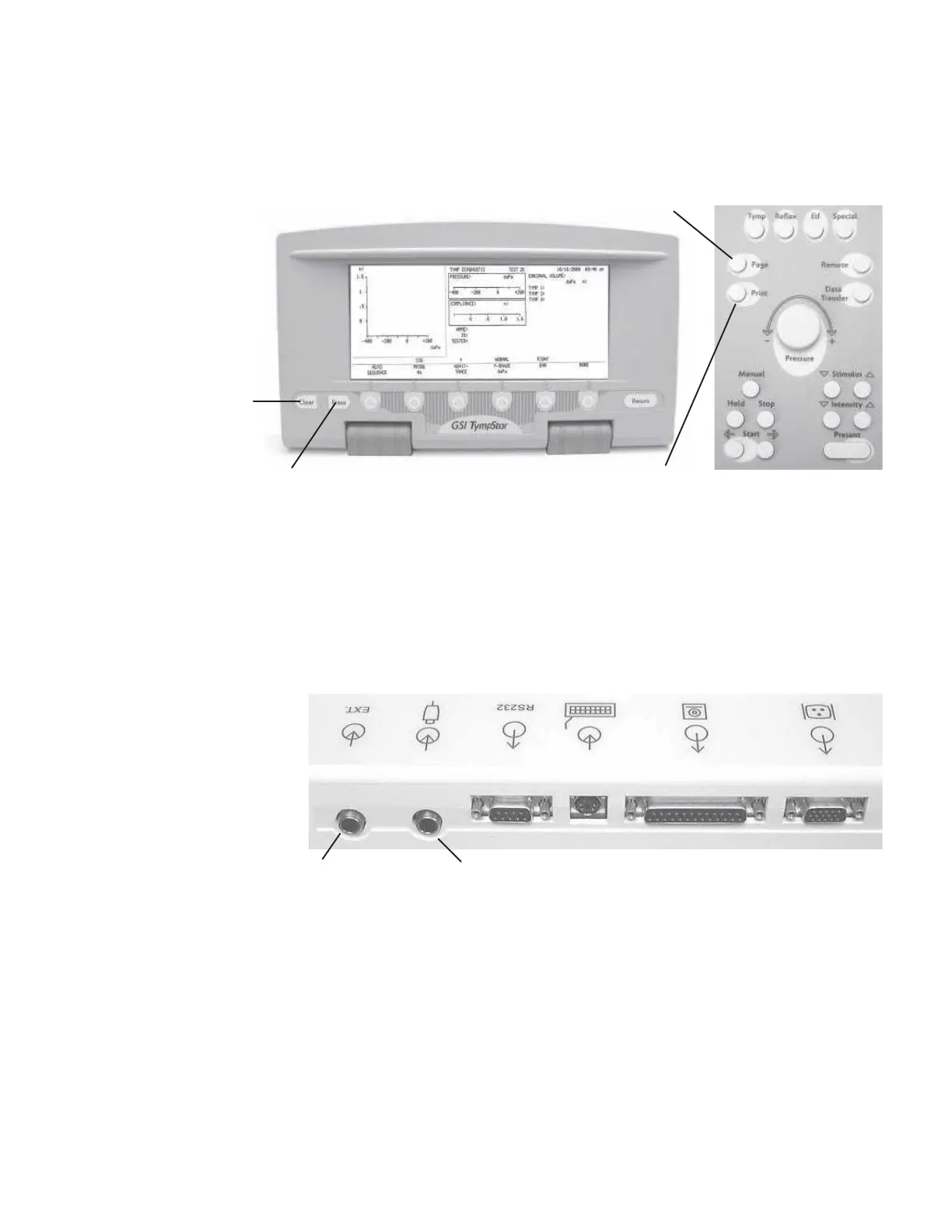

The display of current test data may be erased prior to stopping a test or continuing
to the next test by pressing the ERASE hardkey. Previous test data can be selec-
tively cleared from the instrument’s storage by selecting the desired test with the
PAGE hardkey, then pressing the CLEAR hardkey
PAGE hardkey
PRINT hardkey
It is suggested that all testing be completed on one ear before proceeding to the
other ear. Changing the test ear causes a new page of test data to be generated.
Reflex test stimuli may be input from an external source and presented via
external control. The connections for these external inputs are provided on the
rear panel of the Version 2 instrument. These jacks are unused in the TympStar
Version 1.
Paging test data Up to 26 test screens can be stored in memory as “pages.” These pages of data can
be recalled with appropriate titles and labels for viewing by pressing the PAGE
hardkey, then scrolling through pages using up/down arrows. Each screen of data
equals a page.
GSI TympStar Version 1 and Version 2 Service Manual
3 - 7
