Calibration

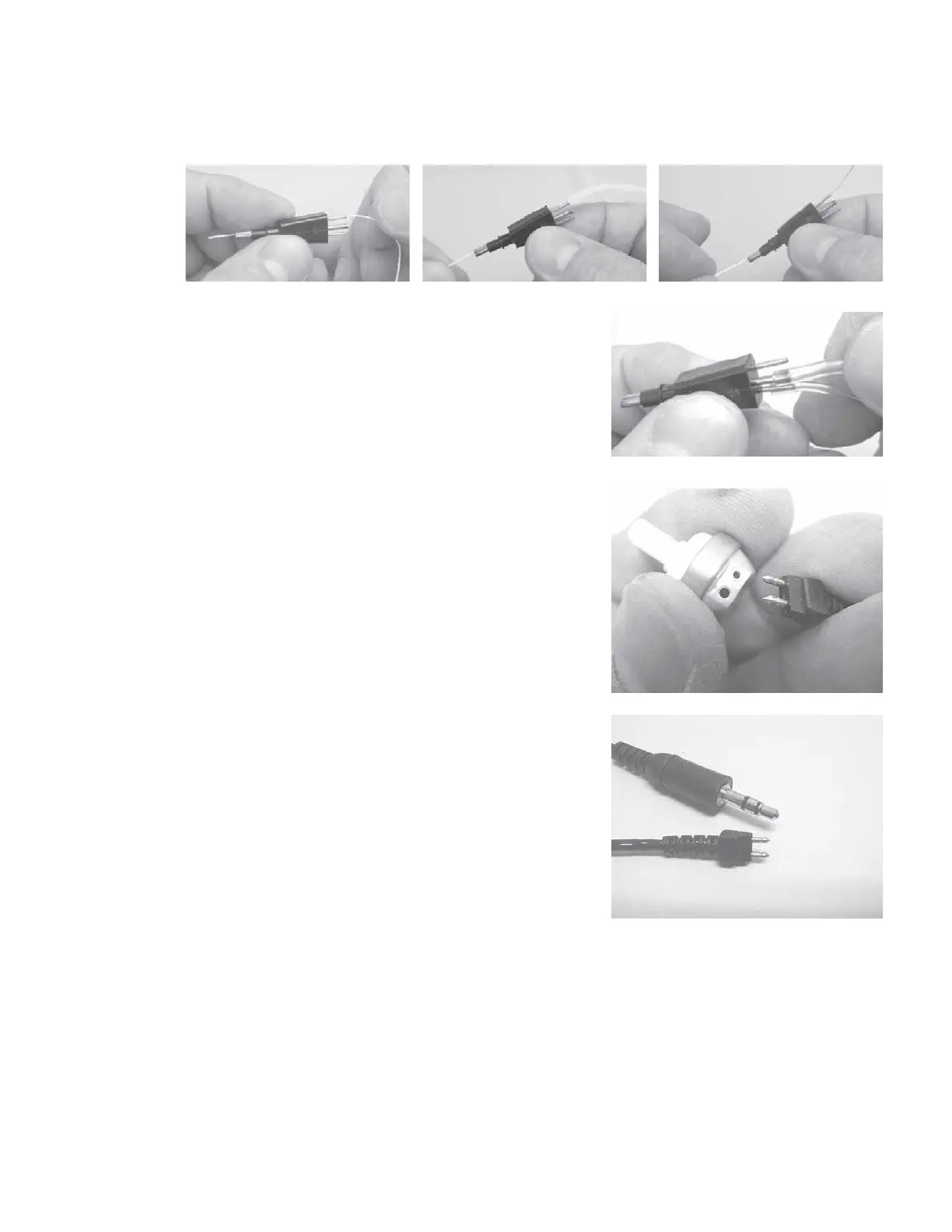

Feed the stiff end of the cleaning floss into the tube and pull the floss completely
through the tube. Discard the used floss. Repeat this process for each of the re-
maining probe tubes. Do not reuse floss.
Step 3
Reconnect the tygon tubing to the probe
tubes
. The center tube has the larger di-
ameter.
Contra phone Step 1
Unplug the Contra phone from the jack
on the probe box and make sure the
main transducer opening is clear.
Step 2
Unplug the Contra phone cable from
the transducer by pulling the cable
connector straight away from the
transducer body.
Step 3
Use isopropyl alcohol and a clean tis-
sue or Q-tip to clean the two jacks in
the Contra phone body, and the two
Contra phone cable plugs.
GSI TympStar Version 1 and Version 2 Service Manual 4 - 5
