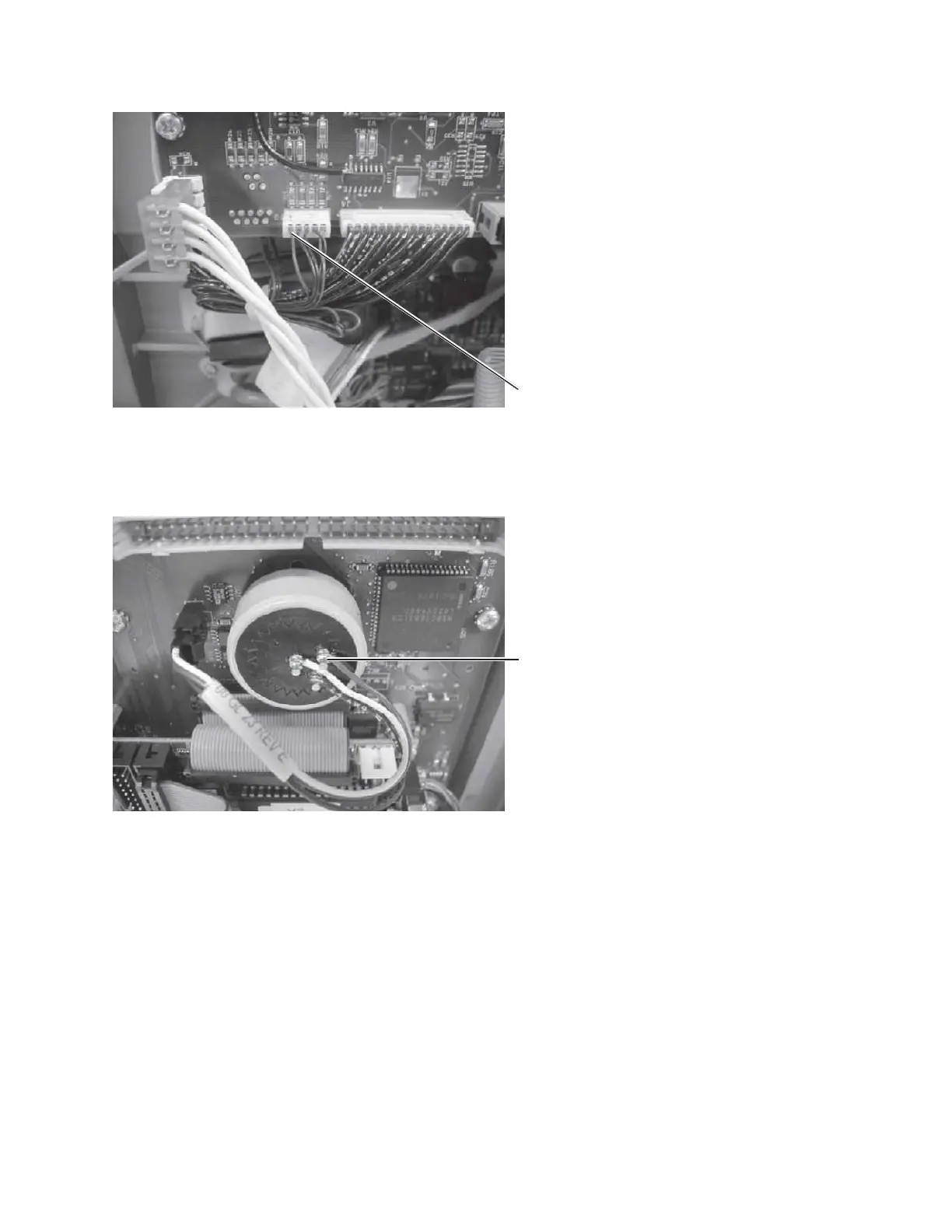

Troubleshooting
Printer Board (J8)
Pin 1= +5.00VDC
Pin 4= ground reference
Pin 1
Pressure
Potentiometer
(Digital Board)
Pin 1(Red)= Ground Reference
Pin 2(White)= @+200dapa= +4.29VDC
@-400dapa= +3.84VDC
Pin 3(Black)= +5.00VDC
Pin 1 (Red wire)
GSI TympStar Version 1 and Version 2 Service Manual 8 - 5
