Calibration

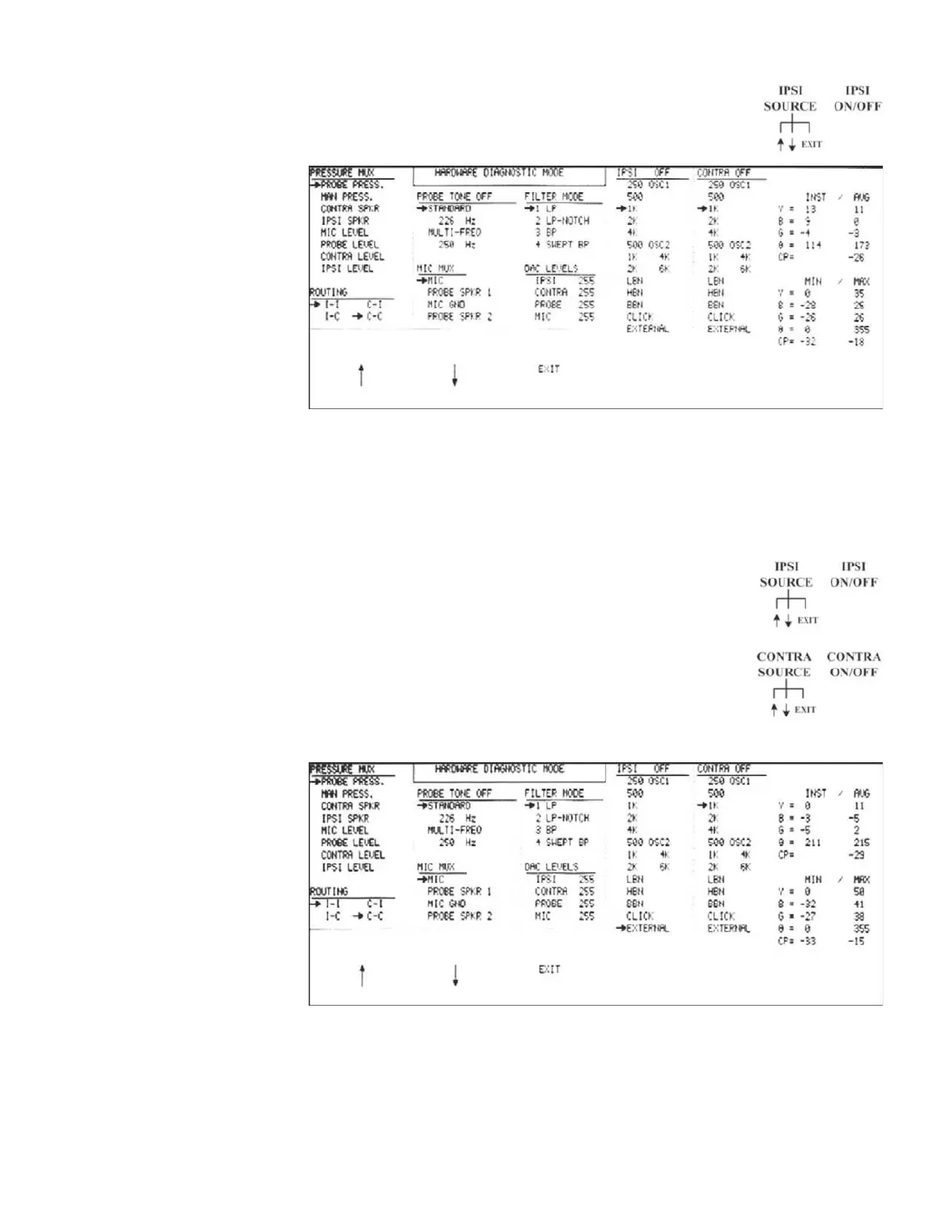

IPSI SOURCE The signal source for the IPSI channel can be selected by press-
ing the IPSI SOURCE softkey. The possible IPSI sources are
shown in the center of the LCD in the IPSI list.
The desired source can be selected by scrolling through the list using the UP and
DOWN NO CAPS softkeys. This example shows the 1K Hz source selected.
Pressing the EXIT softkey displays the Hardware Diagnostic Mode menu at the
bottom of the screen.
IPSI ON/OFF The IPSI output channel is toggled ON or OFF by pressing the
IPSI ON/OFF softkey.
CONTRA SOURCE The signal source for the CONTRA channel can be selected
by pressing the CONTRA SOURCE softkey. The possible
CONTRA sources are shown in the center of the LCD in the
CONTRA list.
The desired source can be selected by scrolling through the list using the UP and
DOWN No CAPS softkeys. This example shows the 1K Hz source selected.
GSI TympStar Version 1 and Version 2 Service Manual 4 - 11
