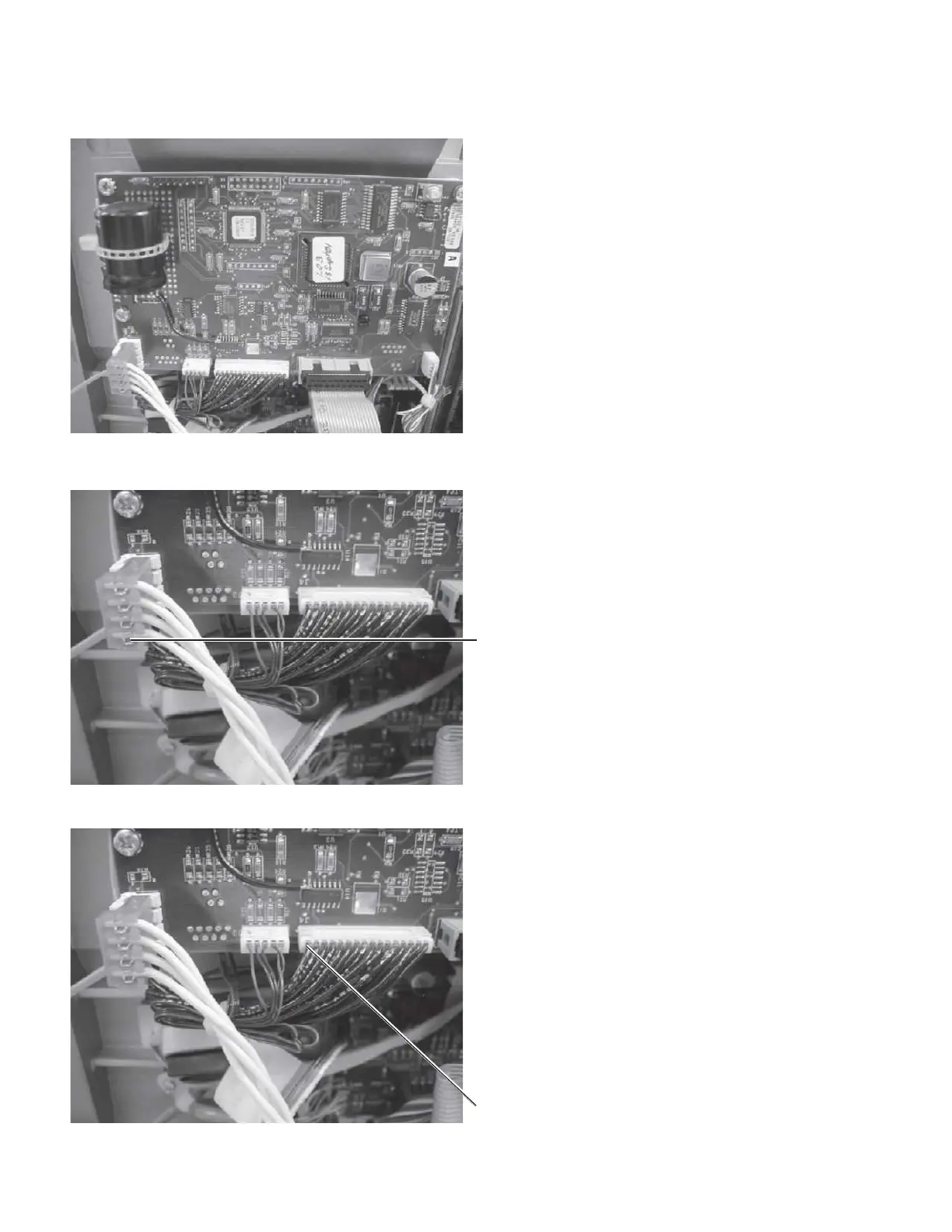

Printer Board (J6)

Printer Board (J4)

8 - 4

Chapter 8

Printer Board

Pin 1=+24VDC

Pin 2=ground reference

Pin 3=+5.00VDC

Pin 4= ground reference

Pin 1

Pin 1,2= +24VDC

Pin 3,4= ground reference

Pin 5,6,7= STROBE 1,2,3

Pin 8= THERMISTOR

Pin 9= STROBE 4

Pin 10= PRTLATCH

Pin 11= STROBE 5

Pin 12= +5.00VDC

Pin 13= PRTCLK

Pin 14= PRTDATA

Pin 15= ground reference

Pin 16= +24VDC

Pin 1
