Calibration

Pressure Cal

Step 1

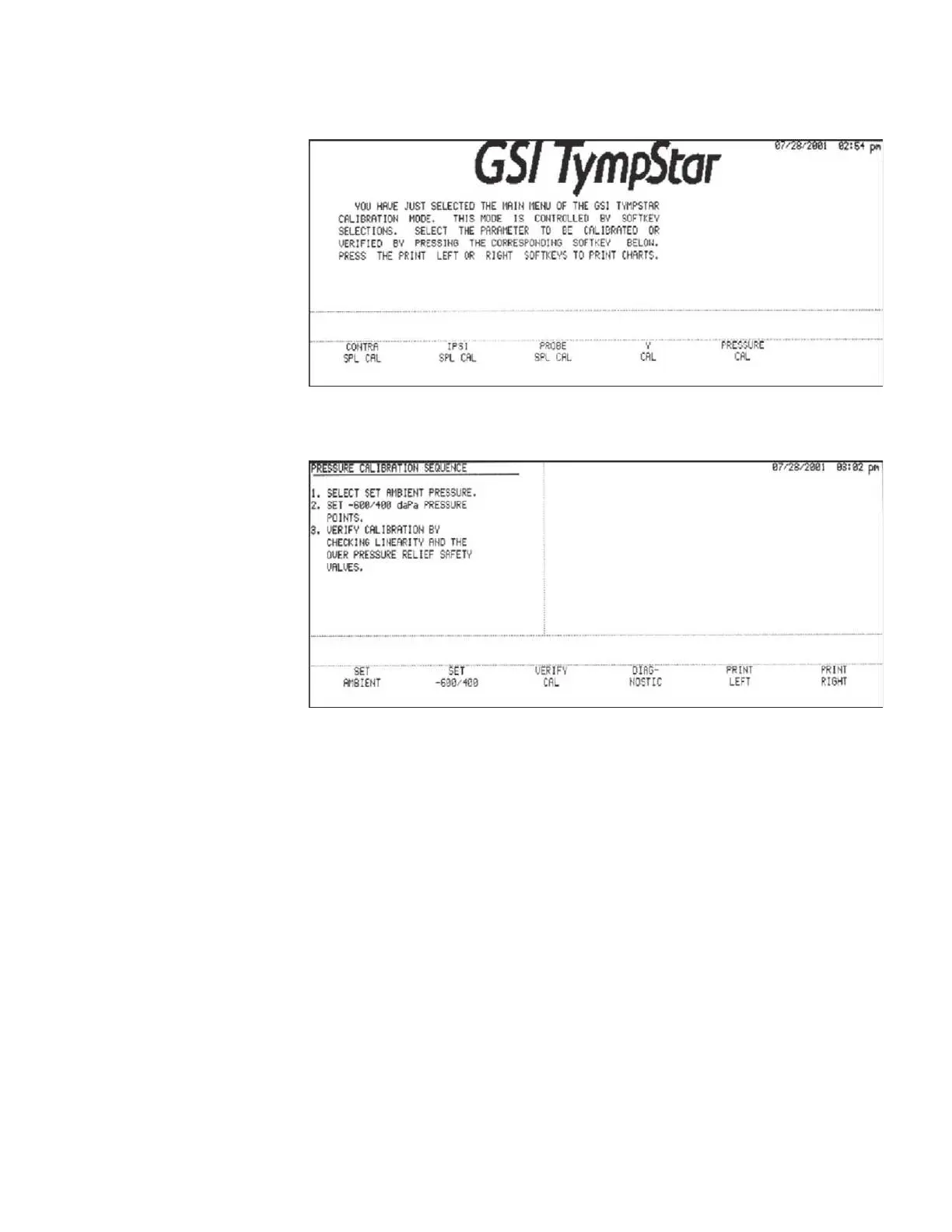

Press the PRESSURE CAL softkey.

The PRESSURE CALIBRATION SEQUENCE screen will be displayed.

Pressure functions that can be calibrated or verified include the following:

• Ambient pressure (0 daPa reference)

• Low and high-pressure limits (-600/+400)

• Pressure leak measurement

• Pressure linearity

• Safety valve operation

A diagnostic pressure control is also included.

GSI TympStar Version 1 and Version 2 Service Manual 4 - 41
