Disassembly

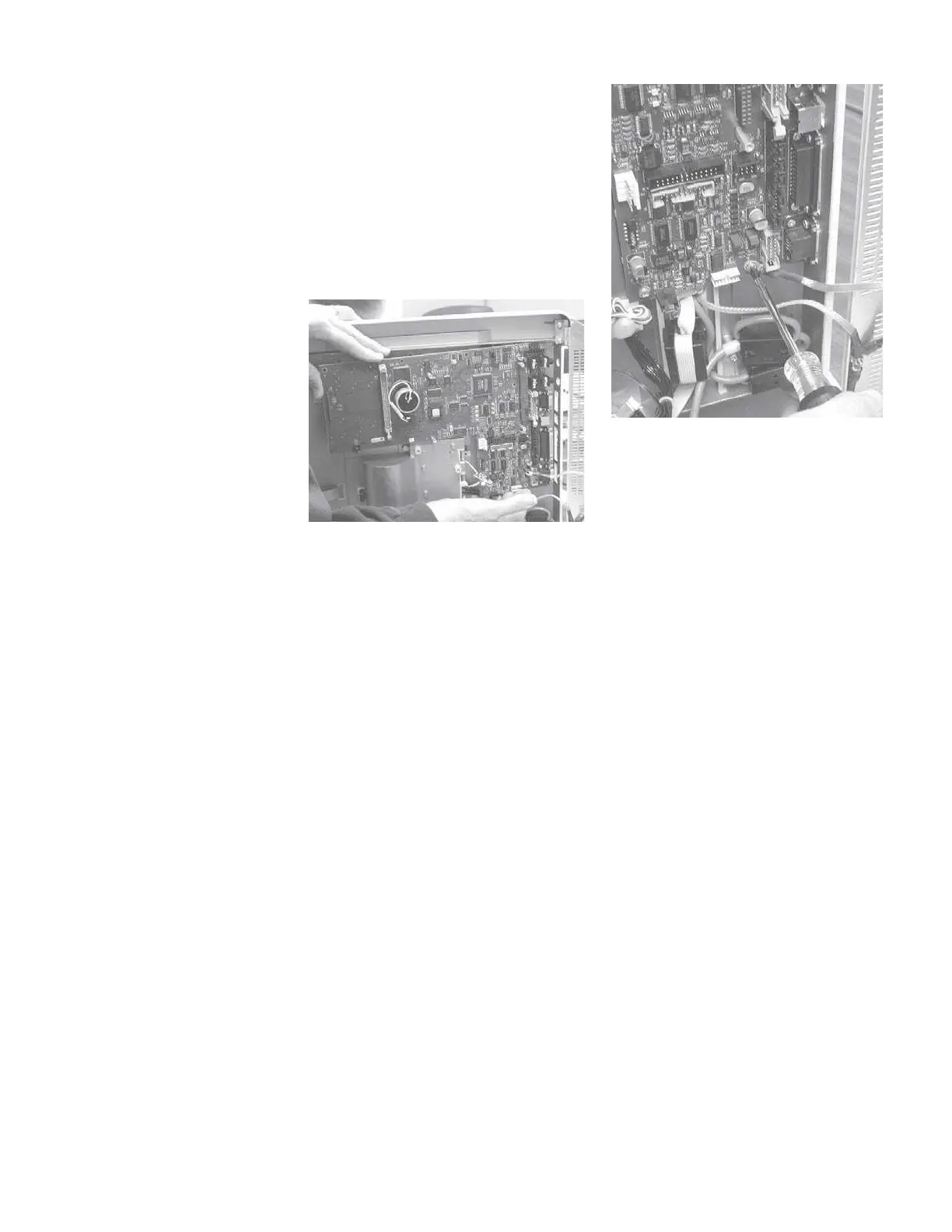

Step 9

Disconnect the ground strap by re-

moving the Philips retaining screw.

Step 10

Remove the remaining eight retaining

screws and gently move the board

away from the connector holes in the

back of the cover.

When the connectors on the board

have cleared the holes, lift the board

straight out of the cover.

GSI TympStar Version 1 and Version 2 Service Manual

5 - 19
