Modules and transducers
114 A03031_24_E00_01 HBM: public QuantumX
8.11.2 MX1615B status display
The front panel of the universal amplifier has a system LED and 16 connection
LEDs. The system LED indicates the status of the device, the connection LEDs
the states of the individual connections.
System
LED
Connection LED
Connection LED

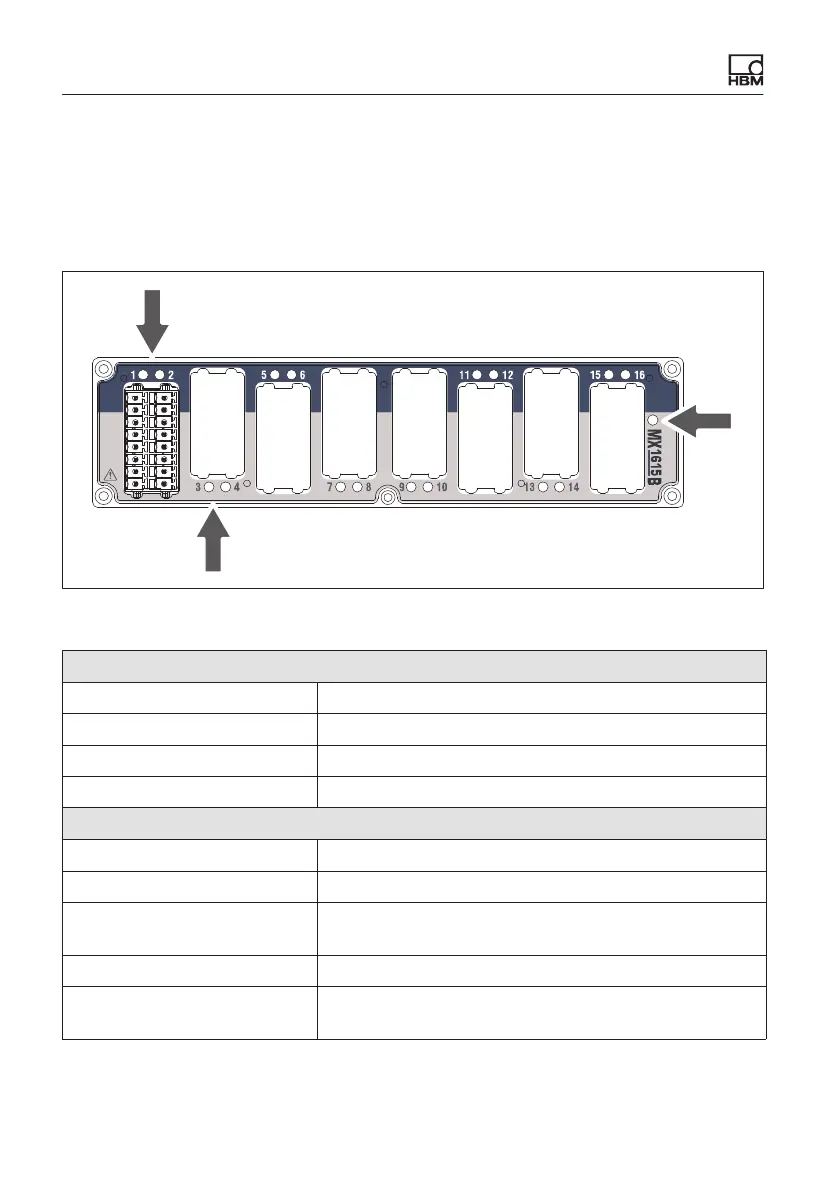

Fig. 8.19 MX1615B front view
System LED
Green Error-free operation
Orange System is not ready, boot procedure running
Flashing orange Download active, system is not ready
Red Error
Connection LEDs
All LEDs are orange Boot procedure running (system is not ready)
All LEDs are flashing orange Firmware download active (system is not ready)
Orange Connection newly assigned, transducer identification
running (calibration)
Green Error-free operation
Flashing green (5s), then
green
TEDS data being read in
