Transducer connection
140 A03031_24_E00_01 HBM: public QuantumX

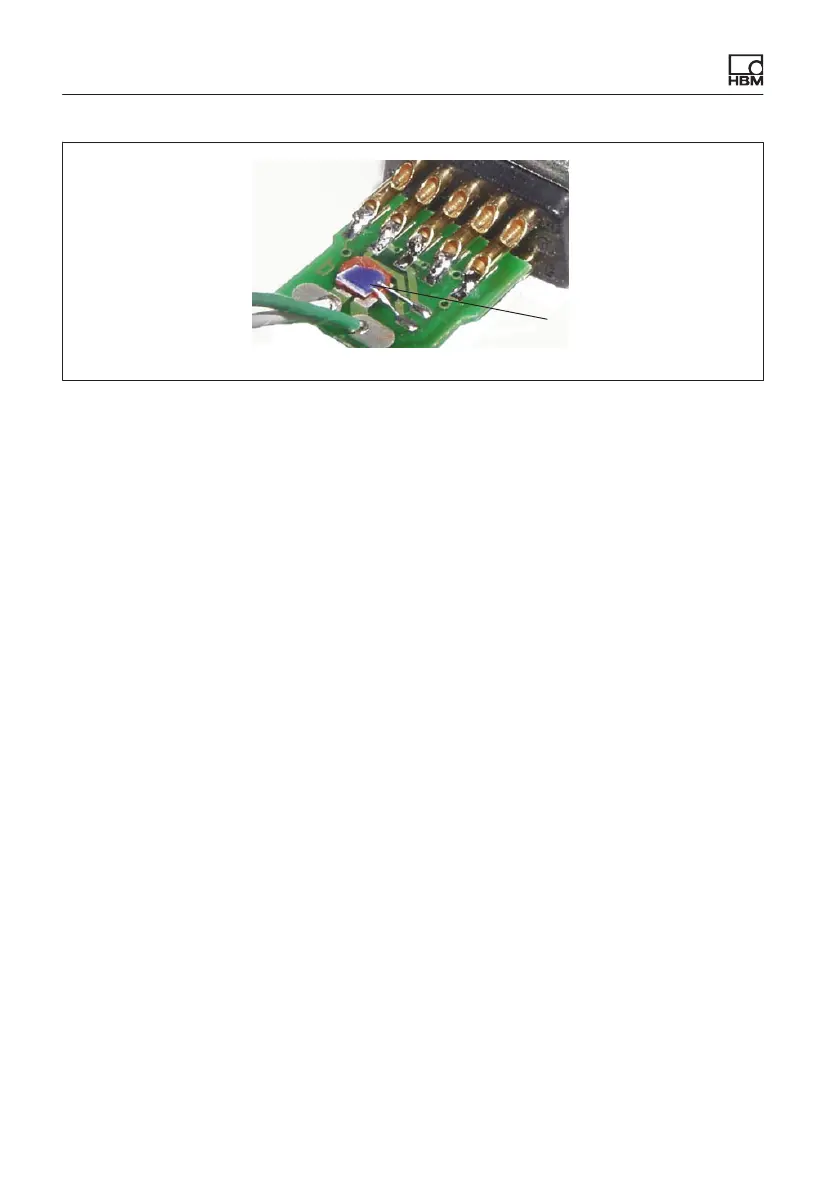

PT1000
S Solder the connector pins to the connections on the board
S PIN 1 TEDS
PIN 6 TEDS
PIN 5 Thermocouple (+)
PIN 10 Thermocouple (-)
PIN 9 Signal ground
PIN 7 PT1000 cold junction
PIN 8 PT1000 cold junction
PIN 2 Excitation (-)
PIN 3 Excitation (+)
