Connecting individual QuantumX modules

QuantumX A03031_24_E00_01 HBM: public 63

Module settings

PC settings

Automatic

configuration

Manual

configuration

Module settings

PC settings

172.21.108.1

255.255.248.0

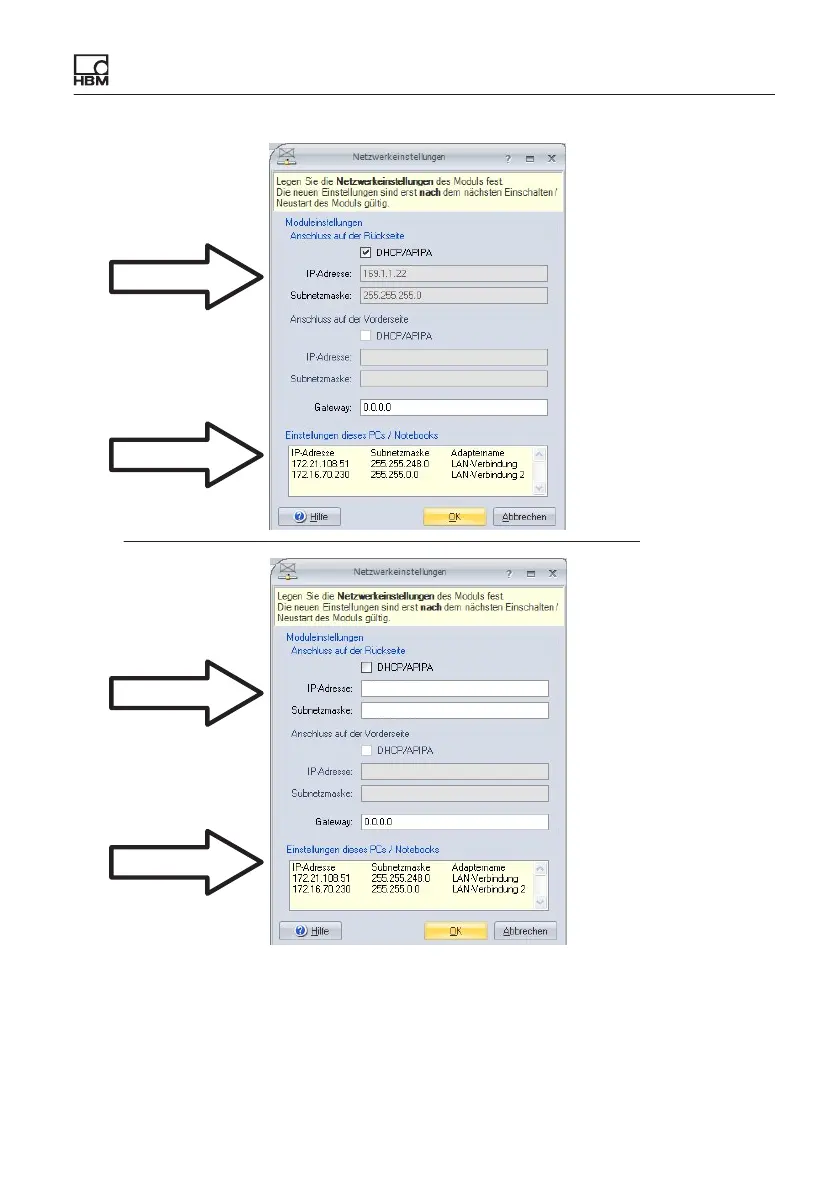

Fig. 7.5 Example of settings for a direct connection
